1.10

Connectors

1.10.1

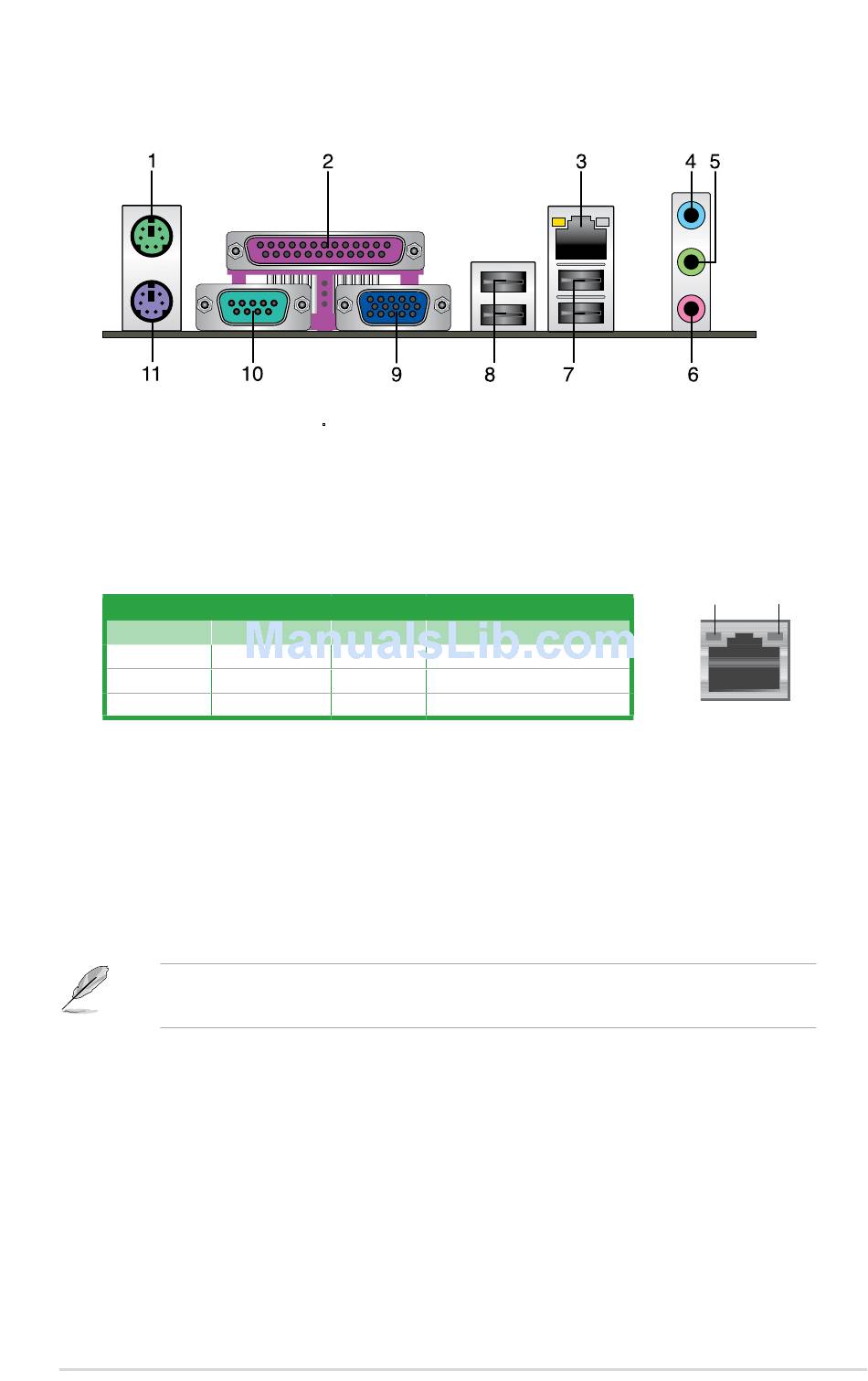

Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.
Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
2.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
Activity/Link LED
Status Description
OFF No link
ORANGE Linked
BLINKING Data activity
4. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel and
6-channel configurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink). This port connects a microphone. In a 6-channel
configuration, the function of this port becomes Center/Bass.
Refer to the audio configuration table on the next page for the function of the audio ports in
2, 4, or 6-channel configuration.
ASUS P5KPL-AM/PS
Speed LED
Status Description
OFF 10Mbps connection
ORANGE 100Mbps connection
GREEN 1Gbps connection
ACT/LINK SPEED
LED LED
LAN port
1-21
