Audio 2, 4, or 6-channel configuration
Port
Light Blue
Lime
Pink
7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
8. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
9. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
10. Serial port. This 9-pin COM1 port is for pointing devices or other serial devices.
11. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
1.10.2

Internal connectors

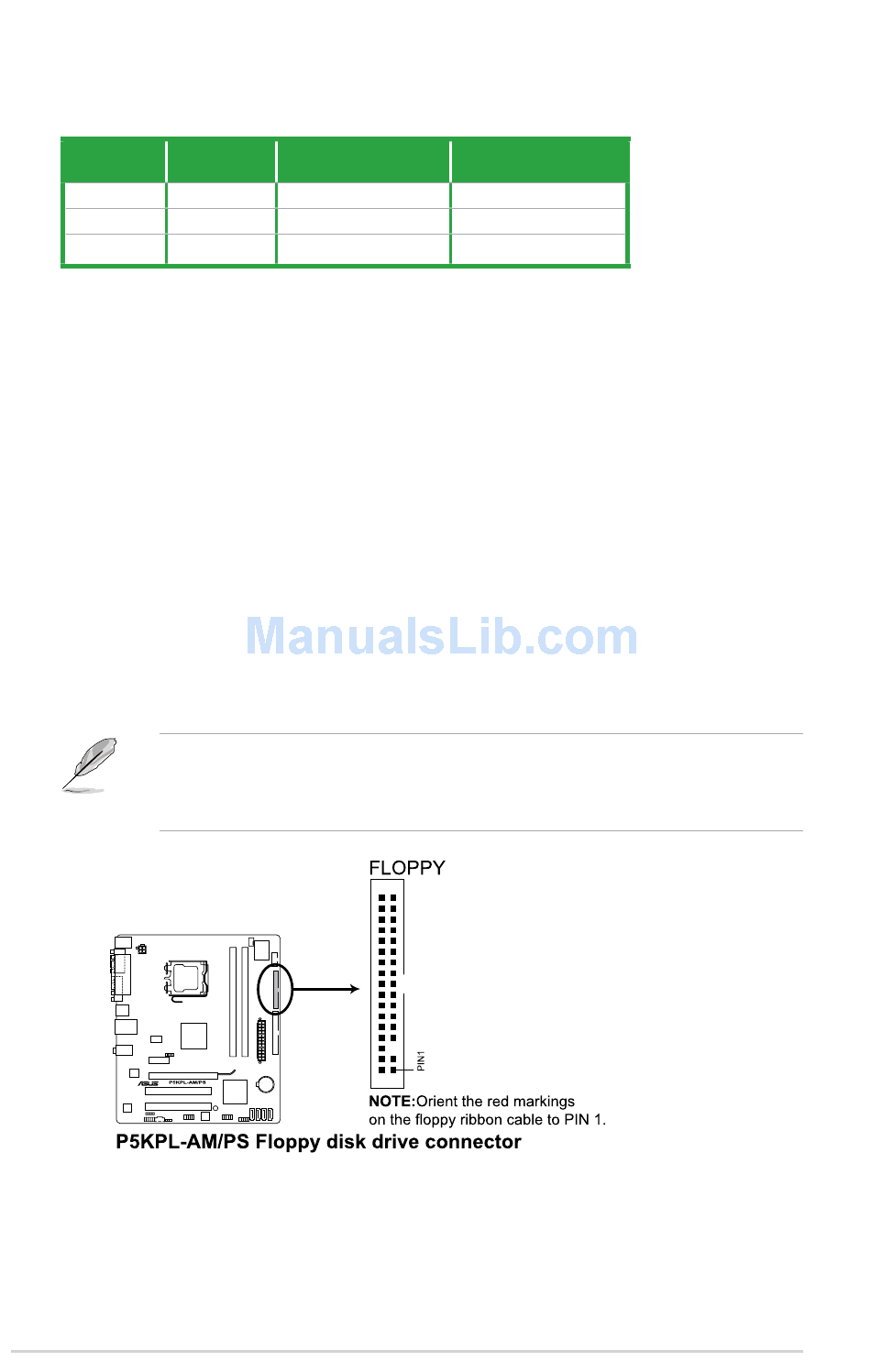

1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the floppy disk drive (FDD) signal cable. Insert one end of the
cable to this connector, then connect the other end to the signal connector at the back
of the floppy disk drive.
• Pin 5 on the connector is removed to prevent incorrect cable connection when using an
• The floppy disk drive cable is purchased separately.
1-22
Headset 4-channel
2-channel
Line In Rear Speaker Out
Line Out Front Speaker Out
Mic In Mic In
FDD cable with a covered Pin 5.
6-channel
Rear Speaker Out
Front Speaker Out
Bass/Center
Chapter 1: Product introduction
