1.5.3

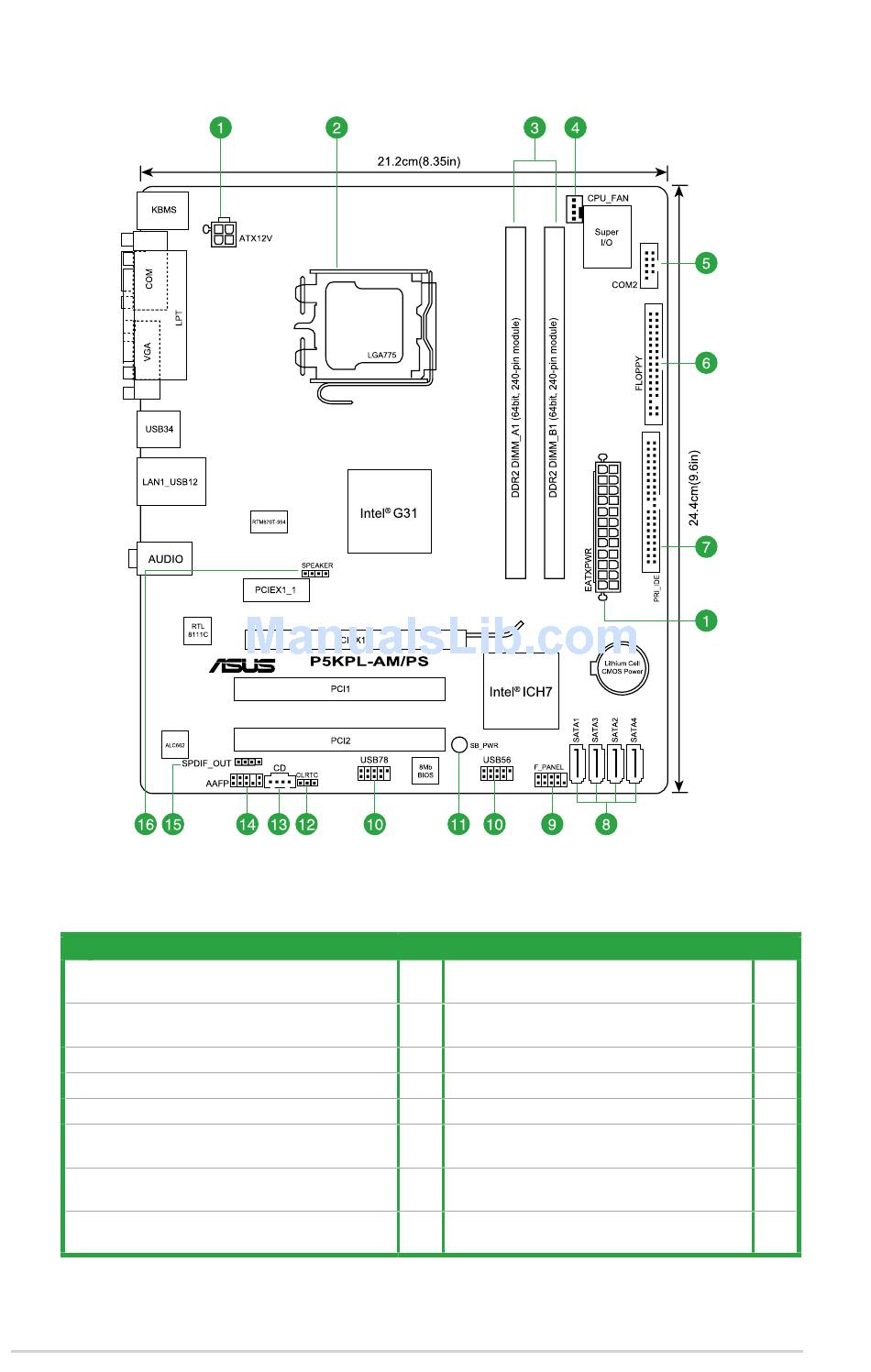

Motherboard layout

1.5.4

Layout contents

Connectors/Jumpers/Slots
1. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
2. LGA775 CPU socket
3. DDR2 DIMM slots
4. CPU fan connector (4-pin CPU_FAN)
5. Serial port connectors (10-1 pin COM2)
6. Floppy disk drive connector (34-1 pin FLOPPY)
7. IDE connector (40-1 pin PRI_IDE)
8. Serial ATA connectors (7-pin SATA1-4)
1-6
Page Connectors/Jumpers/Slots
1-28 9. System panel connector (10-1 pin
F_PANEL)
1-7 10. USB connectors (10-1 pin USB56 and
USB78)
1-12 11. Onboard LED (SB_PWR)
1-25 12. Clear RTC RAM (3-pin CLRTC)
1-25 13. Optical drive audio connector (4-pin CD)
1-22 14. Front panel audio connector (10-1 pin
AAFP)
1-24 15. Digital audio connector (4-1 pin
SPDIF_OUT)
1-23 16. Internal speaker connector (4-pin
SPEAKER)
Chapter 1: Product introduction
Page
1-29
1-26
1-4
1-20
1-26
1-27
1-23
1-27
