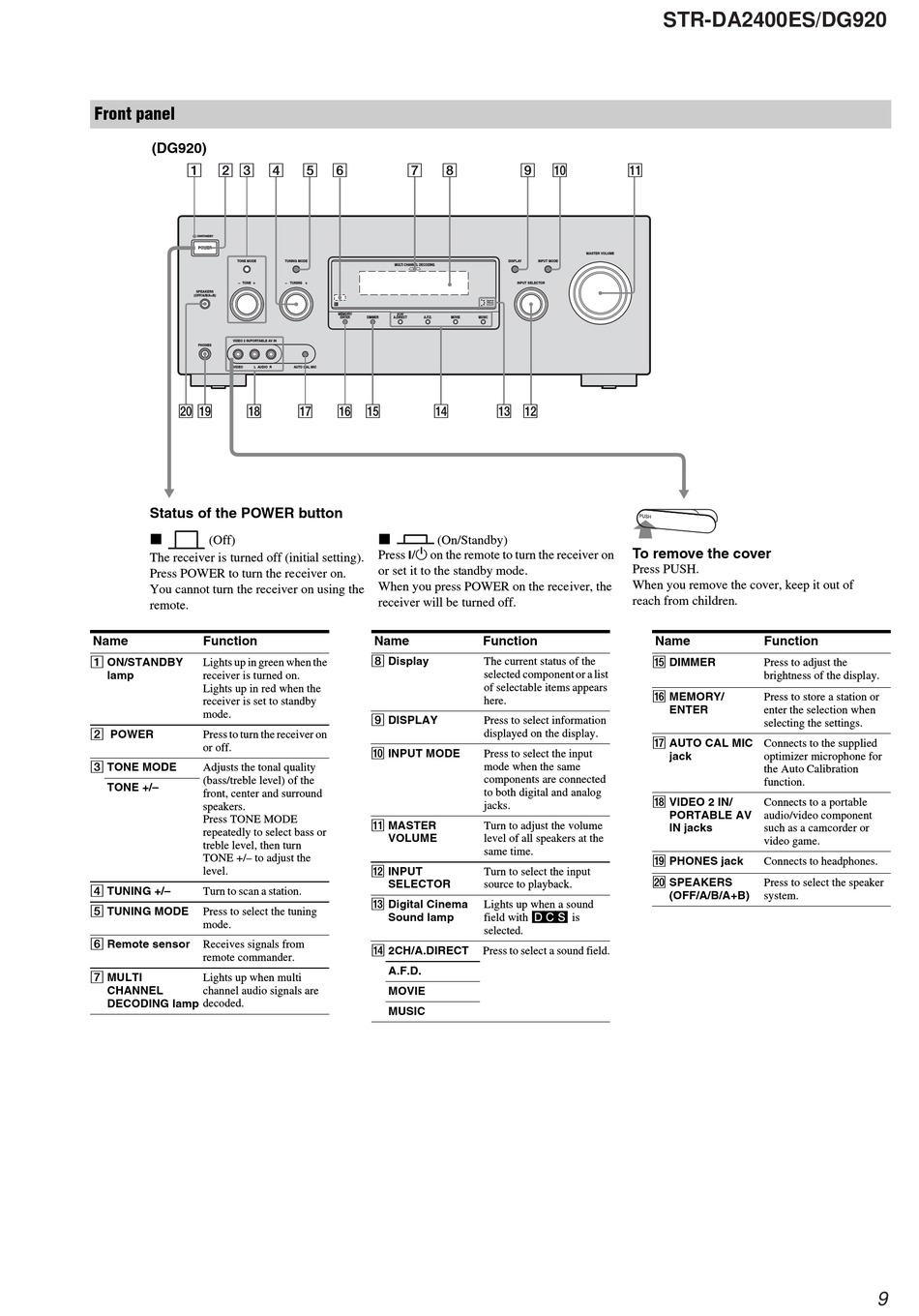

Front panel

(DG920)
ON/STANDBY
POWER
TONE MODE
TONE
SPEAKERS
(OFF/A/B/A+B)
VIDEO 2 IN/PORTABLE AV IN
PHONES
VIDEO
L AUDIO R
Status of the POWER button
(Off)
The receiver is turned off (initial setting).
Press POWER to turn the receiver on.
You cannot turn the receiver on using the
remote.
Name
Function
ON/STANDBY
Lights up in green when the
lamp
receiver is turned on.
Lights up in red when the
receiver is set to standby
mode.
POWER
Press to turn the receiver on
or off.
TONE MODE
Adjusts the tonal quality
(bass/treble level) of the
TONE +/–
front, center and surround
speakers.
Press TONE MODE
repeatedly to select bass or
treble level, then turn
TONE +/– to adjust the
level.
TUNING +/–
Turn to scan a station.
TUNING MODE
Press to select the tuning
mode.
Remote sensor
Receives signals from
remote commander.
MULTI
Lights up when multi
CHANNEL
channel audio signals are
DECODING lamp
decoded.
TUNING MODE
MULTI CHANNEL DECODING
TUNING
MEMORY/
2CH/
ENTER
DIMMER
A.DIRECT
A.F.D.
MOVIE
AUTO CAL MIC
(On/Standby)
Press /
on the remote to turn the receiver on
or set it to the standby mode.
When you press POWER on the receiver, the
receiver will be turned off.
Name
Display
DISPLAY
INPUT MODE
MASTER
VOLUME
INPUT
SELECTOR
Digital Cinema
Sound lamp
2CH/A.DIRECT
A.F.D.
MOVIE
MUSIC
MASTER VOLUME
DISPLAY
INPUT MODE
INPUT SELECTOR
MUSIC
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Function
The current status of the
selected component or a list
of selectable items appears
here.
Press to select information
displayed on the display.
Press to select the input
mode when the same
components are connected
to both digital and analog
jacks.
Turn to adjust the volume
level of all speakers at the
same time.
Turn to select the input
source to playback.
Lights up when a sound
field with
is
selected.
Press to select a sound field.
STR-DA2400ES/DG920
Name
Function
DIMMER
Press to adjust the
brightness of the display.
MEMORY/
Press to store a station or
ENTER
enter the selection when
selecting the settings.
AUTO CAL MIC
Connects to the supplied
jack
optimizer microphone for
the Auto Calibration
function.
VIDEO 2 IN/
Connects to a portable
PORTABLE AV
audio/video component
IN jacks
such as a camcorder or
video game.
PHONES jack
Connects to headphones.
SPEAKERS
Press to select the speaker
(OFF/A/B/A+B)
system.
9
