STR-DA2400ES/DG920

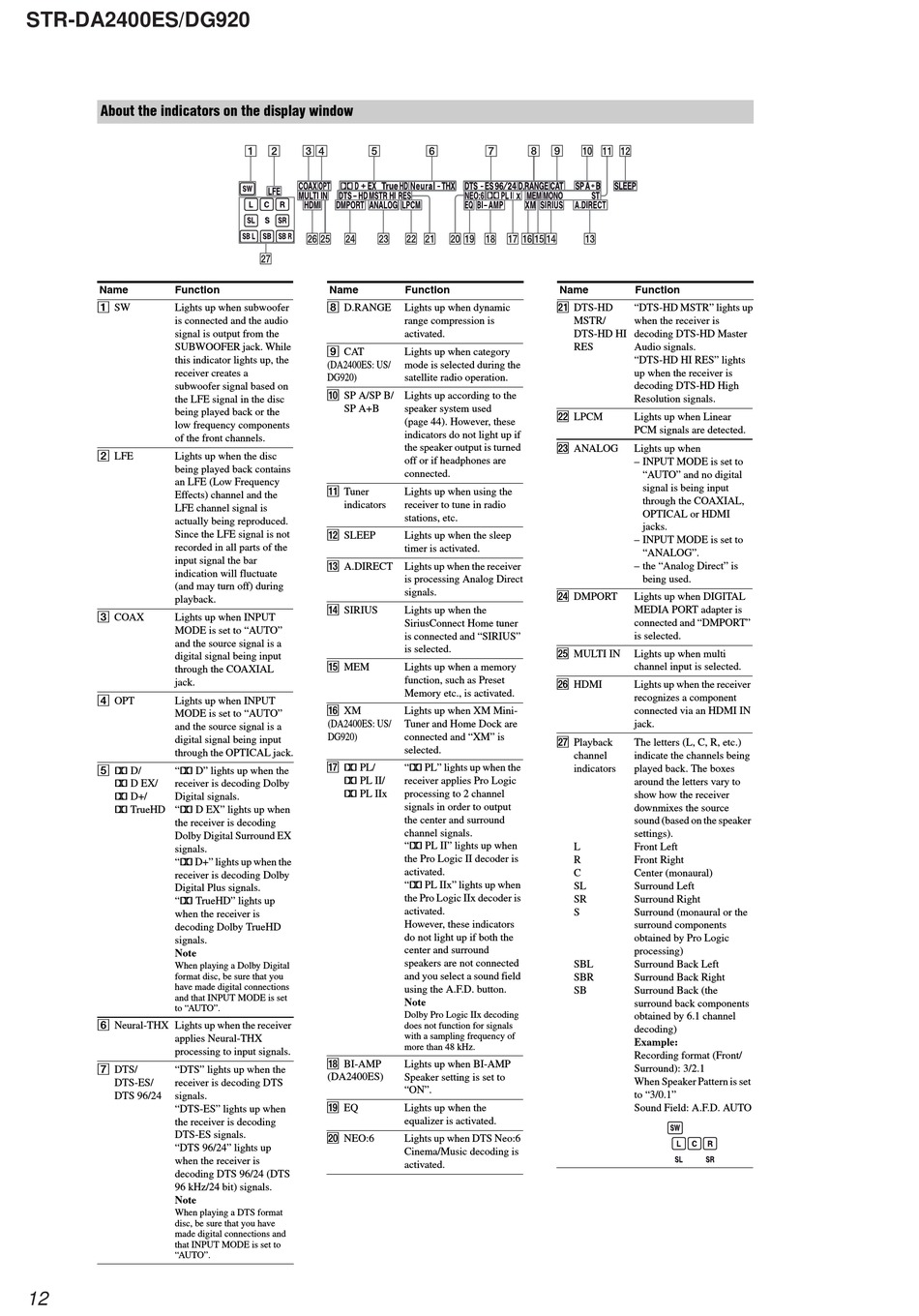

About the indicators on the display window
Name
Function
SW
Lights up when subwoofer
is connected and the audio
signal is output from the
SUBWOOFER jack. While
this indicator lights up, the
receiver creates a
subwoofer signal based on
the LFE signal in the disc
being played back or the
low frequency components
of the front channels.
LFE
Lights up when the disc
being played back contains
an LFE (Low Frequency
Effects) channel and the
LFE channel signal is
actually being reproduced.
Since the LFE signal is not
recorded in all parts of the
input signal the bar
indication will fluctuate
(and may turn off) during
playback.
COAX
Lights up when INPUT
MODE is set to "AUTO"
and the source signal is a
digital signal being input
through the COAXIAL
jack.
OPT
Lights up when INPUT
MODE is set to "AUTO"
and the source signal is a
digital signal being input
through the OPTICAL jack.
D/
"
D" lights up when the
D EX/
receiver is decoding Dolby
D+/
Digital signals.
TrueHD
"
D EX" lights up when
the receiver is decoding
Dolby Digital Surround EX
signals.
"
D+" lights up when the
receiver is decoding Dolby
Digital Plus signals.
"
TrueHD" lights up
when the receiver is
decoding Dolby TrueHD
signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is set
to "AUTO".
Neural-THX Lights up when the receiver
applies Neural-THX
processing to input signals.
DTS/
"DTS" lights up when the
DTS-ES/
receiver is decoding DTS
DTS 96/24
signals.
"DTS-ES" lights up when
the receiver is decoding
DTS-ES signals.
"DTS 96/24" lights up
when the receiver is
decoding DTS 96/24 (DTS
96 kHz/24 bit) signals.
Note
When playing a DTS format
disc, be sure that you have
made digital connections and
that INPUT MODE is set to
"AUTO".
12
Name
Function
D.RANGE
Lights up when dynamic
range compression is
activated.
CAT
Lights up when category
(DA2400ES: US/
mode is selected during the
DG920)
satellite radio operation.
SP A/SP B/
Lights up according to the
SP A+
B
speaker system used
(page 44). However, these
indicators do not light up if
the speaker output is turned
off or if headphones are
connected.
Tuner
Lights up when using the
indicators
receiver to tune in radio
stations, etc.
SLEEP
Lights up when the sleep
timer is activated.
A.DIRECT
Lights up when the receiver
is processing Analog Direct
signals.
SIRIUS
Lights up when the
SiriusConnect Home tuner
is connected and "SIRIUS"
is selected.
MEM
Lights up when a memory
function, such as Preset
Memory etc., is activated.
XM
Lights up when XM Mini-
Tuner and Home Dock are
(DA2400ES: US/
DG920)
connected and "XM" is
selected.
PL/
"
PL" lights up when the
PL II/
receiver applies Pro Logic
PL IIx
processing to 2 channel
signals in order to output
the center and surround
channel signals.
"
PL II" lights up when
the Pro Logic II decoder is
activated.
"
PL IIx" lights up when
the Pro Logic IIx decoder is
activated.
However, these indicators
do not light up if both the
center and surround
speakers are not connected
and you select a sound field
using the A.F.D. button.
Note
Dolby Pro Logic IIx decoding
does not function for signals
with a sampling frequency of
more than 48 kHz.
BI-AMP
Lights up when BI-AMP
(DA2400ES)
Speaker setting is set to
"ON".
EQ
Lights up when the
equalizer is activated.
NEO:6
Lights up when DTS Neo:6
Cinema/Music decoding is
activated.
Name
Function
DTS-HD
"DTS-HD MSTR" lights up
MSTR/
when the receiver is
DTS-HD HI
decoding DTS-HD Master
RES
Audio signals.
"DTS-HD HI RES" lights
up when the receiver is
decoding DTS-HD High
Resolution signals.
LPCM
Lights up when Linear
PCM signals are detected.
ANALOG
Lights up when
– INPUT MODE is set to
"AUTO" and no digital
signal is being input
through the COAXIAL,
OPTICAL or HDMI
jacks.
– INPUT MODE is set to
"ANALOG".
– the "Analog Direct" is
being used.
DMPORT
Lights up when DIGITAL
MEDIA PORT adapter is
connected and "DMPORT"
is selected.
MULTI IN
Lights up when multi
channel input is selected.
HDMI
Lights up when the receiver
recognizes a component
connected via an HDMI IN
jack.
Playback
The letters (L, C, R, etc.)
channel
indicate the channels being
indicators
played back. The boxes
around the letters vary to
show how the receiver
downmixes the source
sound (based on the speaker
settings).
L
Front Left
R
Front Right
C
Center (monaural)
SL
Surround Left
SR
Surround Right
S
Surround (monaural or the
surround components
obtained by Pro Logic
processing)
SBL
Surround Back Left
SBR
Surround Back Right
SB
Surround Back (the
surround back components
obtained by 6.1 channel
decoding)
Example:
Recording format (Front/
Surround): 3/2.1
When Speaker Pattern is set
to "3/0.1"
Sound Field: A.F.D. AUTO
