Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked "*" are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑
Parts Color Cabinet's Color

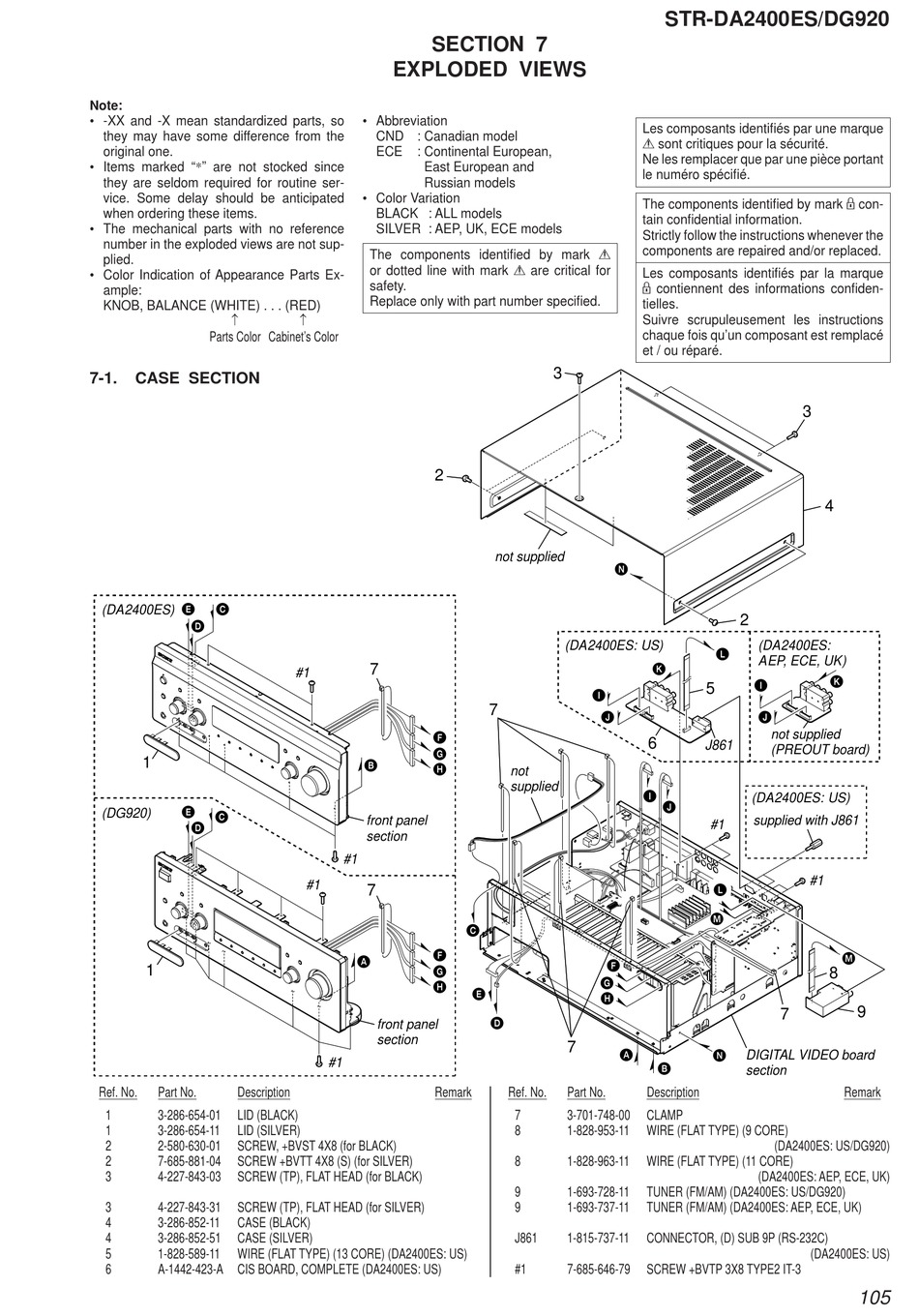

7-1.
CASE SECTION
(DA2400ES)
1
(DG920)
1
Ref. No.
Part No.
Description
1
3-286-654-01
LID (BLACK)
1
3-286-654-11
LID (SILVER)
2
2-580-630-01
SCREW, +BVST 4X8 (for BLACK)
2
7-685-881-04
SCREW +BVTT 4X8 (S) (for SILVER)
3
4-227-843-03
SCREW (TP), FLAT HEAD (for BLACK)
3
4-227-843-31
SCREW (TP), FLAT HEAD (for SILVER)
4
3-286-852-11
CASE (BLACK)
4
3-286-852-51
CASE (SILVER)
5
1-828-589-11
WIRE (FLAT TYPE) (13 CORE) (DA2400ES: US)
6
A-1442-423-A
CIS BOARD, COMPLETE (DA2400ES: US)
SECTION 7
EXPLODED VIEWS
• Abbreviation
CND : Canadian model
ECE
: Continental European,
East European and
Russian models
• Color Variation
BLACK : ALL models
SILVER : AEP, UK, ECE models
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
↑
2
7
#1
front panel
section
#1
#1
7
front panel
section
#1
Remark
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu'un composant est remplacé
et / ou réparé.
3
not supplied
(DA2400ES: US)
7
6
not
supplied
7
Ref. No.
Part No.
Description
7
3-701-748-00
CLAMP
8
1-828-953-11
WIRE (FLAT TYPE) (9 CORE)
8
1-828-963-11
WIRE (FLAT TYPE) (11 CORE)
9
1-693-728-11
TUNER (FM/AM) (DA2400ES: US/DG920)
9
1-693-737-11
TUNER (FM/AM) (DA2400ES: AEP, ECE, UK)
J861
1-815-737-11
CONNECTOR, (D) SUB 9P (RS-232C)
#1
7-685-646-79
SCREW +BVTP 3X8 TYPE2 IT-3
STR-DA2400ES/DG920
3
4
2
(DA2400ES:
AEP, ECE, UK)
5
not supplied
J861
(PREOUT board)
(DA2400ES: US)
supplied with J861
#1
#1
8
7
DIGITAL VIDEO board
section
(DA2400ES: US/DG920)
(DA2400ES: AEP, ECE, UK)
(DA2400ES: US)
9
Remark
105
