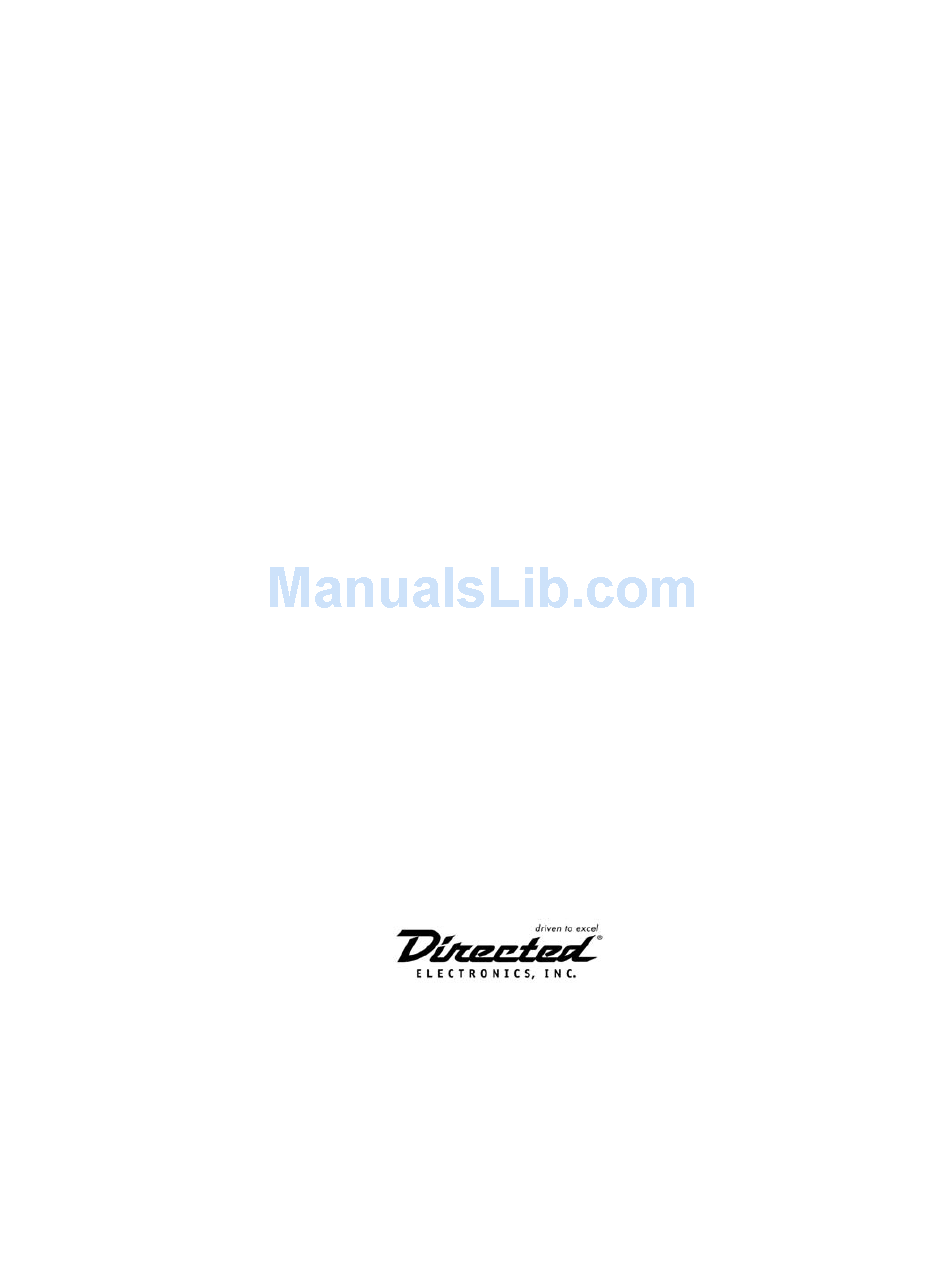

AM1
AM1
Security System
installation guide
© 2003 Directed Electronics, Inc. Vista, CA N427A 12-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Directed Electronics AM1

Summary of Contents for Directed Electronics AM1

  • Page 1 Security System installation guide © 2003 Directed Electronics, Inc. Vista, CA N427A 12-03...
  • Page 2 , Soft Chirp , Stealth Coding , Stinger ® ® ® ® ™ ® ™ ® Valet , Vehicle Recovery System , VRS , and Warn Away are all Trademarks or Registered Trademarks of ® ™ ™ ® Directed Electronics, Inc.

  • Page 3: Table Of Contents

    ....32 plug-in harnesses ....21 wiring quick reference guide ..33 © 2003 directed electronics, inc.
  • Page 4 © 2003 directed electronics, inc.

  • Page 5: What Is Included

    This product is not intended for consumer installation and will have NO WARRANTY unless it is installed by an authorized dealer. © 2003 directed electronics, inc.

  • Page 6: Before Beginning The Installation

    This is a general list of tools required to complete the installation of this security sys- tem in most vehicles. Some vehicles may require additional tools. Digital multi-meter Nutdriver and/or socket set Wire cutters/strippers Panel removal tool © 2003 directed electronics, inc.

  • Page 7: Deciding On Component Location

    (they are 1.5 meters long). Keep it away from the heater core (or any other heat sources) and any obvious leaks. Some good control module locations: Above the glove box, inside the center console, above the underdash fuse box, above the radio, etc. © 2003 directed electronics, inc.

  • Page 8: Integrated Led/Valet Switch

    12V We recommend two possible sources for 12V constant: The (+) terminal of the battery, or the constant supply to the ignition switch. Always install a fuse within 12 inches of this connection. © 2003 directed electronics, inc.

  • Page 9: Finding The 12V Switched Ignition Wire

    If it drops close to or all the way to zero, go back to step 3. If it stays steady at (+)12V, you have found an ignition wire. © 2003 directed electronics, inc.
  • Page 10 Attach the (+) probe of the meter to +12V. Probe the wire you suspect of being the parking light wire. Usually, the area near the headlight/parking light switch is an excellent area to start, as is the kick panel. © 2003 directed electronics, inc.

  • Page 11: Finding The Door Pin Switch Circuit

    The dome light in these vehicles is turned on when the door handle is lifted. These usually have a wire coming out of the door into the kick panel which will provide a (-) trigger for all doors. © 2003 directed electronics, inc.

  • Page 12: Main Harness Wire Connection Guide

    N N O O T T E E : : If connecting the orange wire to control another module, such as a 529T or 530T window controller, a 1 amp diode (type 1N4004) will be required. Insert the diode as shown below. © 2003 directed electronics, inc.
  • Page 13 It will supply a (+) 10A output. If the light flash polarity fuse jumper inside the unit is moved to the opposite position (see Internal Jumpers), this wire sup- plies a (-) 10A output. This is suitable for driving (-)parking light wires. © 2003 directed electronics, inc.
  • Page 14 Connect the green wire to a wire which shows ground when any door is opened. In vehicles with factory delays on the domelight circuit, there is usually a wire that is unaffected by the delay circuitry. © 2003 directed electronics, inc.
  • Page 15 H1/8 BLACK (-) chassis ground connection: Connect this wire to bare metal, prefer- ably with a factory bolt rather than your own screw. Screws tend to either strip or loosen with time. All components, should be grounded to the same point in the vehi- cle if possible. © 2003 directed electronics, inc.
  • Page 16 H1/12 RED/WHITE (-) 200mA auxiliary channel/delayed accessory output: If pro- grammed for an auxiliary output, this wire will provide a (-) pulse when the lock but- ton on the factory transmitter is pressed twice within three seconds. This output can be © 2003 directed electronics, inc.

  • Page 17: Auxiliary Harness Wire Connection

    BROWN (-) Horn Honk Output H2/1 GREEN Arm Input H2/2 Disarm Defeat Input H2/3 BLUE Disarm Input H2/4 GRAY (+) Trunk Release/Sensor Shunt Input H2/5 VIOLET/BLACK No Function H2/6 YELLOW/BLACK Light Flash Monitor Input H2/7 © 2003 directed electronics, inc.

  • Page 18: Auxiliary Harness Wiring Guide

    If the factory transmitter unlocks the driver’s door first, the BLUE wire must be connected to the wire that changes state when the driver’s door is unlocked by itself. © 2003 directed electronics, inc.
  • Page 19 Connect this wire to the light flash wire that flashes when the factory transmitter is used. This may be a status LED, parking lights, reverse lights, etc., depending on the vehicle type and manufacturer. This wire can accept a (+) positive or (-) negative input. © 2003 directed electronics, inc.

  • Page 20: Keyless Entry Systems-Three Types

    There are three main types of keyless entry systems. Systems that unlock the driver’s door first and have internal relays, systems that unlock the driver’s door first but have external relays, and systems without driver’s priority door unlock. factory remote—driver’s door unlock © 2003 directed electronics, inc.
  • Page 21 If the switch wire shows (+) 12V, then use the follow- ing diagram: N N O O T T E E : : It is often easy to access the passenger unlock wire going to the rear door motor on the driver’s side. © 2003 directed electronics, inc.
  • Page 22 N N O O T T E E : : Failure to insert the diodes at the correct point will allow the system to be dis- armed by one of the power door lock switches inside the vehicle. The best place to insert the diode is at the keyless entry module itself or at the relays. © 2003 directed electronics, inc.

  • Page 23: Door Lock Harness Wire Connection

    Make sure the LED wires are not shorted to ground as the LED will be damaged. data port—Bitwriter ® The black three-pin port can be used for programming the unit or to accommodate a ® serial controller. The Bitwriter is recommended for programming. © 2003 directed electronics, inc.

  • Page 24: Four-Pin Optional Sensor Harness

    N N O O T T E E : : It is important that all the INPUT signals to the control module are in the rest sta- tus state (no activity) before entering the learn routine. Wait at least 15-seconds after the ignition is turned OFF to begin this rountine, or the unit will be placed in Valet ® mode. © 2003 directed electronics, inc.

  • Page 25: To Learn Lock

    N N O O T T E E : : If the Unlock learn was unsuccessful, the Unlock procedure can be repeated by using the LOCK learn procedure, except that at step 2 press and release the inte- grated LED/Valet® switch TWICE. (The LED will flash in groups of w flashes.) © 2003 directed electronics, inc.

  • Page 26: To Exit The Learn Routine

    N N O O T T E E : : When adjusting the sensor, it must be in the same mounting location that it will be after the install is completed. Adjusting the sensor and then relocating the module requires readjustment. © 2003 directed electronics, inc.

  • Page 27: Internal Programming Jumper

    (-) output on the WHITE wire, H1/2. To access the jumper, remove the sliding door from on top of the control module, as shown below. FUSE/JUMPER FUSE/JUMPER (+) POSITION (-) POSITION © 2003 directed electronics, inc.

  • Page 28: Zones

    4. Within 5-seconds, press and release the integrated LED/Valet ® switch. The LED will flash in groups indicating the last two zones reported triggered. For example, if zone 2 and 3 were the last two zones to be triggered, the LED will flash © 2003 directed electronics, inc.

  • Page 29: Rapid Resume Logic

    The integrated LED/Valet ® switch to enter the feature programming routine. Use the Directed Electronics Bitwriter ®. N N O O T T E E : : If Feature Programming Lockout is set to ON, all features will be locked and can only be accessed by using a Bitwriter ®...

  • Page 30: To Enter Feature Programming Routine

    Press and hold the integrated LED/Valet switch once more. ® accessing another menu Release, then press and release hold the integrated LED/Valet ® switch. © 2003 directed electronics, inc.

  • Page 31: Exiting Feature Programming

    Siren Duration–30 seconds Siren Duration–60 seconds Valet switch input: 1-pulse Valet switch input: 2-5 pulses ® ® Horn pulse honk duration 0.020 seconds (does not affect full trig- 0.030, 0.040, 0.050 seconds ger pulse duration) © 2003 directed electronics, inc.

  • Page 32: Features #2 Menu

    Ignition-Controlled UnLocking ON Ignition-Controlled Unlocking OFF Active Locking Passive Locking Door Lock Pulse Duration–0.8 sec. Door Lock Pulse Duration–3.5 sec. Single Unlock Pulse Double Unlock Pulse Channel 3: Validity Channel 3: Second Unlock Code Hopping ON Code Hopping OFF © 2003 directed electronics, inc.

  • Page 33: Master Dealer Remotes

    The system will then operate according to how the operating set- tings have been preset. It is also possible to reprogram the operating settings by fol- lowing the feature programming section of this guide. © 2003 directed electronics, inc.

  • Page 34: Troubleshooting

    Are you using a binary, master dealer remote? Remember, you can program the settings using a master dealer remote. However, the unit will follow the dealer default settings when using a binary remote to operate the system. © 2003 directed electronics, inc.

  • Page 35: Wiring Quick Reference Guide

    © 2003 directed electronics, inc.
  • Page 36 © 2003 directed electronics, inc.
