Arrow 5
O O w w n n e e r r ' ' s s G G u u i i d d e e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arrow 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Directed Electronics Arrow 5

Summary of Contents for Directed Electronics Arrow 5

  • Page 1 Arrow 5 O O w w n n e e r r ’ ’ s s G G u u i i d d e e...

  • Page 2: Limited Lifetime Consumer Warranty

    limited lifetime consumer warranty Directed Electronics, Inc. ("Directed") promises to the original purchaser to repair or replace with a comparable reconditioned model any Directed unit (hereafter the "unit"), excluding without limitation the siren, the remote transmitters, the associated sensors and accessories, which proves to be defective in workmanship or material under reasonable use during the life- time of the vehicle provided the following conditions are met: the unit was professionally installed and serviced by an authorized Directed dealer;...

  • Page 3: Trademarks And Copyrights

    LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON- TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights and you may also have other rights that vary from State to State.

  • Page 4: Table Of Contents

    table of contents limited lifetime consumer warranty .....i trademarks and copyrights ..ii table of contents ... . .1 what is included .

  • Page 5: Transmitter Configurations

    Arrow 5 control module and harness Two three-button transmitters XHF antenna/receiver with harness Pre-wired blue status LED PlainView 2 Valet switch 504C dual-stage shock sensor with harness 514C neo-siren Presentation pack Quick reference card Two window decal's...

  • Page 6: Important Information

    important information Congratulations on the purchase of your state-of-the-art vehicle security system. It has been designed to provide years of trouble-free operation. This system must be installed by an authorized dealer. Installation of this product by anyone other than an authorized dealer voids the warranty.

  • Page 7: Fcc/Id Notice

    fcc/id notice This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by the party responsi- ble for compliance could void the user's authority to operate this device.

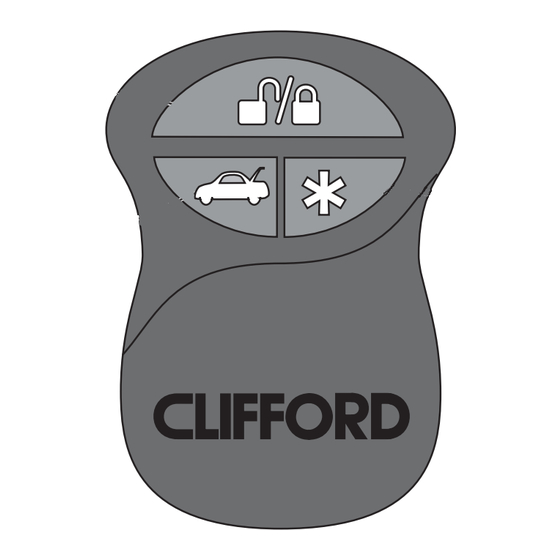

  • Page 8: Transmitter Functions

    transmitter functions This system uses computer-based code learning to learn the transmitter buttons. This makes it possible to assign any transmitter button to any system function. The transmitter initially comes programmed with stan- dard configuration, but may also be customized using the CliffNet Wizard PC program.

  • Page 9: Using Your System

    using your system The buttons used in the instructions in this manual correspond to the standard transmitter configuration. If your transmitter has been custom configured, the icons on your transmitter buttons may not correspond to the indicated functions. arming You can activate, or arm, the system by pressing on your trans- mitter for one second.

  • Page 10: Disarming

    and programmed for passive locking) at 30 seconds, but the siren will not chirp. The early chirps provide you with a 25-second warning prior to arming. n n o o t t e e : : If any protected entry point (a door or a switch-protected trunk or hood) is open, the system will not passively arm.

  • Page 11: Disarming Without A Transmitter8

    disarming without a transmitter This feature allows you to disarm the system without the transmitter should it be lost, damaged, or disabled. In order to disarm without a transmitter, you must have the vehicle’s ignition key, know where the PlainView 2 Valet switch is located, and have the PIN code. Be sure to check with the installer for the location of the PlainView 2 Valet switch and instructions for entering the PIN code.

  • Page 12: Transmitter Sensor Disable

    transmitter sensor disable To temporarily disable a sensor input, arm the system, press the simultaneously. The lights will flash four times and all warn away trigger zones three and eight are bypassed. Press the buttons again; the lights flash four times and both warn away and full trigger zones three and eight are bypassed until the system is disarmed.

  • Page 13: Auxiliary Channel Bypass

    auxiliary channel bypass Alarm sensor input zones three and eight will be bypassed while a pulsed or timed auxiliary Output is active. panic mode with smart door locking If you are threatened in or near your vehicle, you can attract attention by triggering the system with your transmitter! Just press two seconds to enter Panic Mode.

  • Page 14: Transmitter Valet Mode

    After the last digit continue to hold three seconds. The LED status indicator will light steadily if you are entering Valet Mode and will turn off if you are exiting Valet Mode. To exit Valet Mode: 1. Turn the ignition on. 2.

  • Page 15: Battery Saver Mode

    battery saver mode After 48 hours in the armed state, the LED will decrease the flash rate to the normal rate; after 96 hours it will decrease to low battery warning When the transmitter battery is low, the system will generate five quick chirps when disarmed.

  • Page 16: Multiple Event Total Recall

    multiple event total recall This will report the last eight system triggers. Press and hold While still holding release the button. The LED will start to blink to indicate the most recent trigger and proceed down to the eighth trigger. If fewer than eight triggers are stored in memory, the LED will blink continuous- ly until the system is armed/disarmed using the transmitter after recalling the final trigger.

  • Page 17: Select Siren Sounds

    Doors are covered by FACT differently; if the alarm is triggered by an open door for three full cycles, the doors will be bypassed until the trig- ger ceases. FACT is programmable. See the Programming Options section of this guide. n n o o t t e e : : Arming and disarming the system does not reset this function! The only way to reset a bypassed zone is for 60 minutes or to turn on the ignition.

  • Page 18: Diagnostics

    Press on the PlainView 2 Valet switch while playing the desired sound to add that sound; press while playing the desired sound to delete that sound. diagnostics The microprocessor at the heart of your security system is constantly monitoring all of the switches and sensors that are connected to it. It detects any faulty switches and sensors and prevents them from dis- abling the entire system.

  • Page 19: Disarming Diagnostics

    disarming diagnostics Extra disarm chirps are the Tamper Alert. If three chirps are heard when disarming, the system was triggered in your absence. If three chirps are heard, the LED status indicator will indicate which zone was involved (see the Table of Zones section). The system will retain this information in its memory.

  • Page 20: Anti-Code Grabbing (Acg)

    Zone - Number of LED Flashes Description Instant trigger - a heavier impact detected by the shock sensor Door switch trigger Instant trigger - often used for hood/trunk pinswitches Ignition trigger Instant trigger - for optional sensors System Power Reset anti-code grabbing (ACG) This unit features Anti-Code Grabbing (ACG) with Random Code Encryption.

  • Page 21: High Frequency

    high frequency Your system transmits and receives at 433 MHz. This provides a cleaner spectrum with less interference and a more stable signal. smart power up II This security system will store its current state to non-volatile memory. If power is lost and then reconnected the system will recall the stored state from memory.

  • Page 22: Programming Options

    Power Saver in Valet Mode: When the system enters Valet Mode the LED illuminates steadily. If the vehicle is not used (ignition is not turned on) for a period of one hour while the system is in Valet Mode, the LED will shut off. If the system remains in Valet Mode, the LED will come back on the next time the ignition is turned on and then back off.

  • Page 23: Manual Programming Instructions

    locking allows the vehicle's doors to lock when the security system passively arms (after the 30 second countdown). This feature only works if passive arming has been programmed. Panic mode enabled/disabled: Some states have laws against siren capability. Full trigger response 30, 60, or 90 seconds: This determines how long the full triggered sequence lasts.
  • Page 24 Enter PIN - Enter the factory preset PIN code of 2 by press- on the PlainView 2 Valet switch twice, then once. n n o o t t e e : : If the factory preset PIN has been changed, the new PIN must be entered.

  • Page 25: User Selectable Features

    user selectable features * This feature is only available with optional 515C siren. ** This feature is only available with optional IntelliStart connected. *** This feature is only available with optional SmartWindows connected. user selectable features descriptions - column one add new remote (auto learn) Auto-learn new three-button cello remote controls to the system in the standard button configuration.
  • Page 26 auto arm - on/off On: When the system sees the ignition turn off and the last protected entry (door, hood, or trunk) close, it will begin a 30-second countdown before arming itself. After the first five seconds, you will hear two chirps and the lights will flash.

  • Page 27: User Selectable Features Descriptions - Column Two

    passive lock - on/off On: The doors will lock when the system passively arms. This feature only applies when passive arming is programmed on. Off: The doors will not lock when the system passively arms. siren duration - 30/60/90 The system will sound the alarm for the programmed dura- tion (30/60/90 seconds) during an alarm trigger or when the system is put into panic mode.
  • Page 28 select siren sounds The individual sounds the 515C siren produces during an full trigger alarm can be customized for owner recognition of an alarm trigger. For more information, please refer to the Select Siren Sounds section of this guide. fact II on/off On: The alarm will bypass for 60 minutes if zones 3, 5, and 8 are triggered three times within a one hour period.

  • Page 29: User Selectable Features Descriptions - Column Three

    panic on/off On: The panic feature is available. Off: The panic feature is not available. user selectable features descriptions - column three The features in this column pertain to programming individual trans- mitter channels in custom configurations. Following is an explanation of the features.
  • Page 30 remote valet The transmitter channel programmed into this feature will make the system enter/exit valet mode. remote start This feature is only available with IntelliStart connected The transmitter channel programmed into this feature will activate or shut down the Intellistart remote start system. window control This feature is only available with SmartWindows connected The transmitter channel programmed into this feature will...

  • Page 31: Pin Programming

    pin programming A PIN code can have one to four digits; each digit can be from 0-9. n n o o t t e e : : A PIN code cannot begin with a zero. Programming Procedure Enter the feature location in the installer programming grid. Immediately press and release switch.

  • Page 32: Glossary Of Terms

    PIN Code Confirmation Procedure Begin this procedure within 15 seconds of finishing the programming sequence or the new code will not be set. Turn on the ignition. Enter the new PIN code. Press and hold LED turns on: New PIN code is learned and program- ming is complete.
  • Page 33 LED : Blue light mounted somewhere in the vehicle. It is used to indi- cate the status of your system. It is also used to report triggers and faults in the system or sensors. Shock Sensor : This is a sensor mounted in the vehicle that is designed to pick up impacts to the vehicle.

  • Page 34: Expansions

    security & convenience expansions Here we have listed only some of the many expansion options avail- able. Please contact your dealer for a complete list of all the options available to you. Backup Battery: The 520T keeps the system armed, triggers the alarm and keeps the starter interrupt active if main battery power is disconnected.

  • Page 36: Health Check

    health check Directed Electronics recommends you return to your installing Clifford dealer to have your system checked for correct operation. The first check is due one year after the installation date and at yearly intervals thereafter. n n o o t t e e : : There may be a small charge incurred for this service. ©...
  • Page 37 The company behind this system is Directed Electronics, Inc. Since its inception, Directed has had one purpose, to provide consumers with the finest vehi- ® cle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, Directed 9001 registered.
