Product Specification/Installation Sheet
Description
The Universal
Monitor is a
microprocessor
with multi-
sensing, remote
monitoring and
remote control
capabilities. Its
advanced
technology
provides high-
availability monitoring around the clock.
The Universal Monitor can operate as an
independent, stand-alone controller or in
conjunction with Liebert's SiteScan Web
Enterprise Monitoring System.
The enclosure of the Universal Monitor makes
it suited for various applications in both new
construction and retrofit jobs. The Universal
Monitor can be mounted on a wall's surface or
recessed within a wall.
The keypad display on
the face of the panel is
a standard part of the
Universal Monitor.
The display, the
gateway to all
configuration and
monitoring, is
password-protected.
The Universal Monitor
has a standard,
on-board modem for
remote monitoring via
a telephone line.
The modem is
preconfigured to work
with the panel,
eliminating
configuration and
setup requirements.
ONITOR

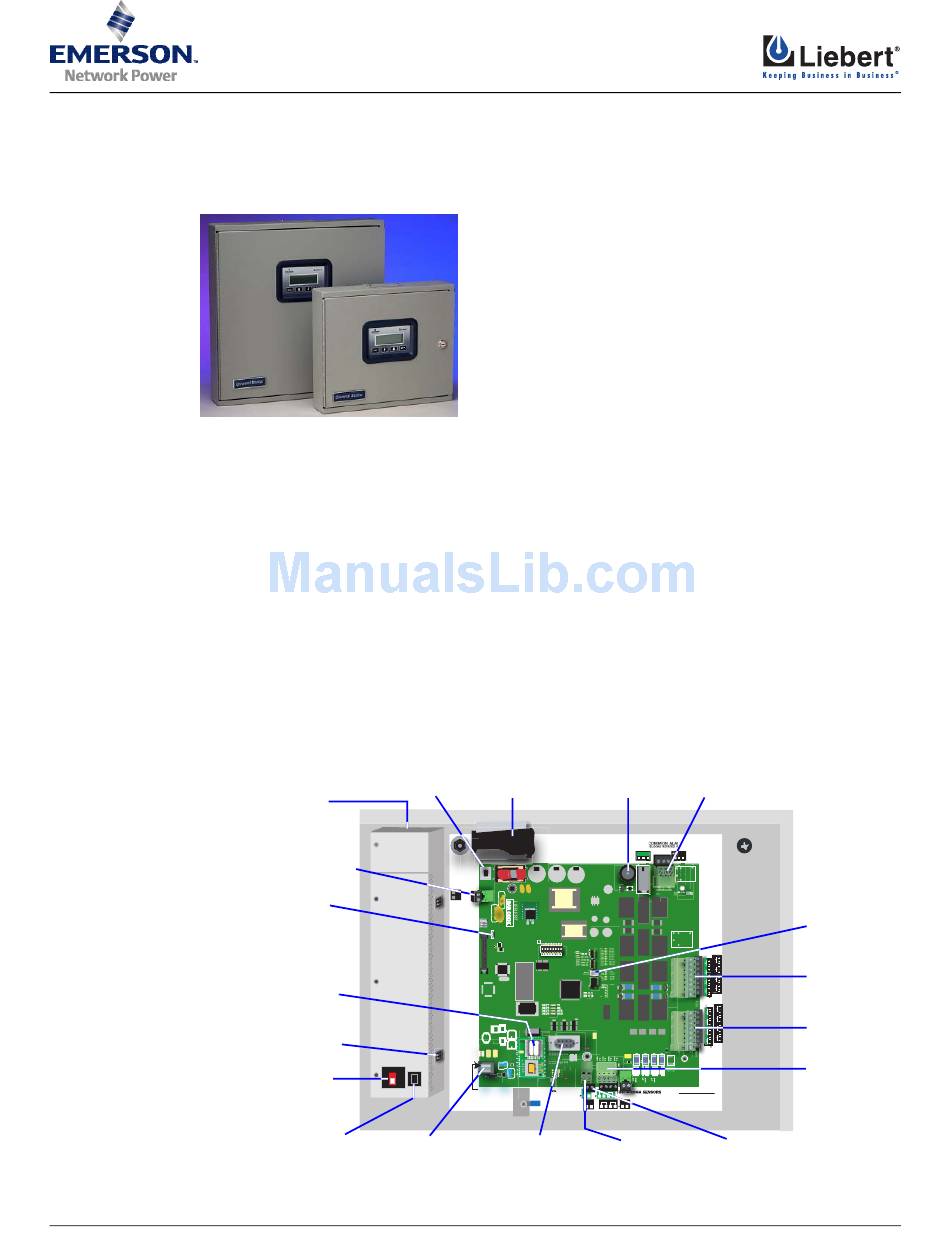

Universal Monitor
Two sizes of enclosures
Universal Monitor Components and Key Features
Power On/Off
switch
Transformer
module*
24VAC
power
connector
LCD
contrast
adjustment
Modem
24VAC
connector*
ON
Power
On/Off
switch*
Power
receptacle*
Phone line
connector
*Transformer module comes standard in large enclosure only
Features
• Custom configuration for specific applications
• Paging capability—up to four pager numbers
• Preconfigured on-board modem
• Alarm, Event and Trend logs with time and
date stamp
• Battery backup to ensure alarm notification
• Backup and download configuration files
• User interface via RS232 or modem
connection
• On-board audible alarm
• Configuration data and operating program
permanently stored in nonvolatile
Electrically Erasable Programmable Read
Only Memory (EEPROM) for protection
against power loss
• Real-time clock
• Status LEDs for verification and
diagnostics
Battery Audible
pack horn
LS1
+
TB7:
START
24V INPUT P11
R40
R2
P23: BATTERY
BATTERY
LCD
CONTRAST
TP1
VBATT
GND
ON ON DIP
DS56 OUTPUT1
S2 OUTPUT2
DS54
1 2 3 4 5 6 7 8 DS63 OUTPUT3
OUTPUT4
OFF DS61
DS60 OUTPUT5
DS62 OUTPUT6
DS55 OUTPUT7
DS57 OUTPUT8
CTRLLOCK
DS83 DS59
CAN TX DS58 SENLOCK
DS84 CAN RX DS53 CMN ALR
MOP
F PROG
574 TX
574 RX
485 RX
485 TX
INPUT1
INPUT2
INPUT3
INPUT4
DS70
DS67 INPUT5
DS66 INPUT6
DS65 INPUT7
R
DS64 INPUT8
4 R334 C71
MODEM
4 D
1-2 TOP
3-4 BOTTOM
MODEM
J11: PHONE
485
TB10: COMMS
PIN 3-TIP
(TOP) + + +
PIN 4-RING — — —
422 AG
+ +
(BOTTOM) + — —
—
Serial interface
connector (RS232/EIA574)
1
Common alarm
connectors
TB5: COMMON ALARM
(TERMINAL BLOCKS ROTATED IN VIEW)
NO C NC NO C NC
(TOP) (BOTTOM)
OM OM
ENABLE
AUDIBLE
Q11
TOP
TB3:
RELAY
OUTPUTS
(BOTTOM)
(TOP)
8
4
7
3
6
2
5
1
(BOTTOM)
(TOP)
8
4
7
3
6
2
5
1
TB2:
CONTACT
INPUTS
ALL CIRCUITS:
CLASS 2
TB9: ANALOG
GROUND
EIA485 SiteScan Web
connector connector (EIA422)
Manual
override
switch
(outputs)
Digital
output
connectors
Digital
input
connectors
Analog
input
connectors
