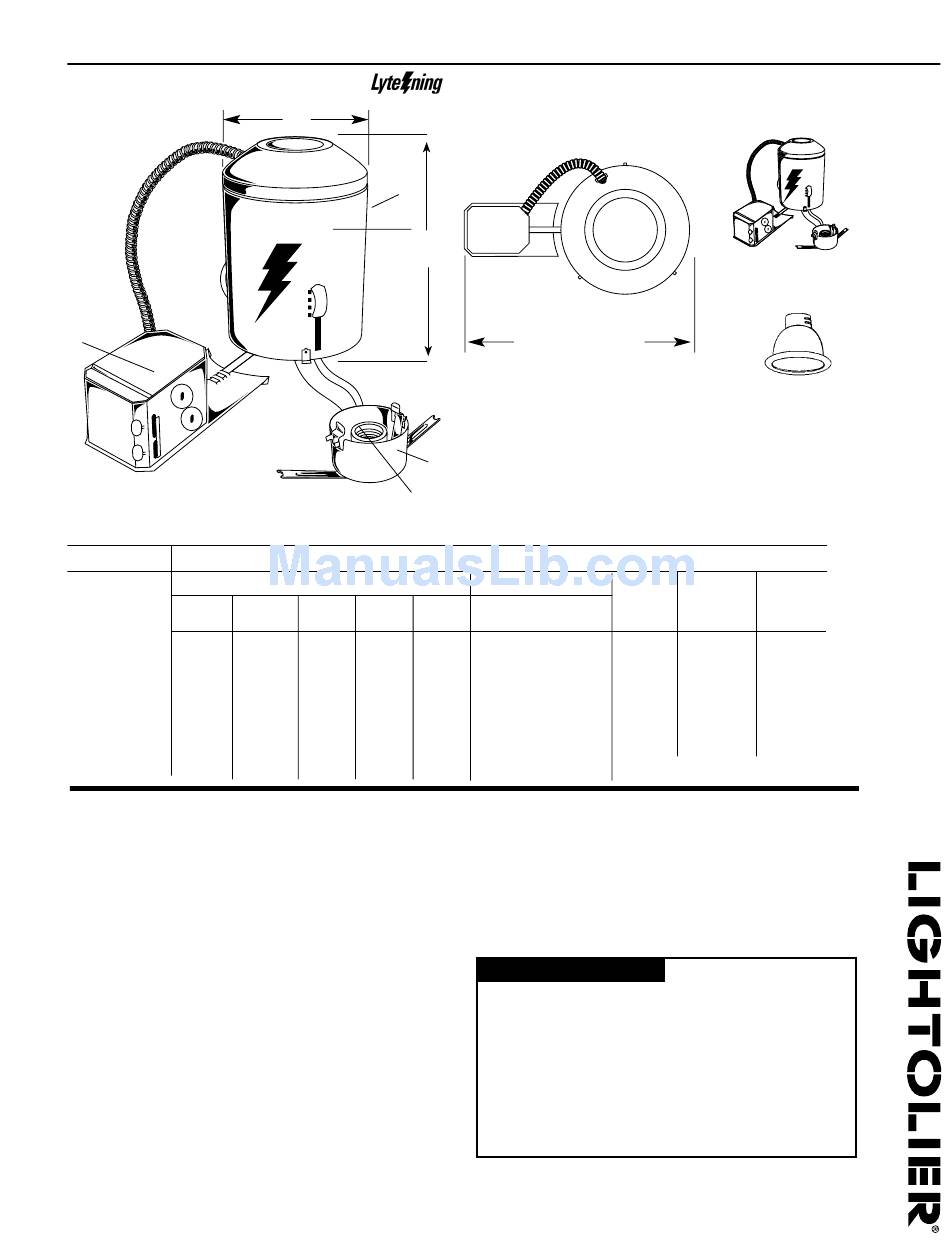

Ceiling Opening 5 3/8" Diameter
5" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Reflector Trims — See Individual Reflector Trim Specification Sheets
Reflector
Cone
1004ICR
1045
1012
1046
1012NM
1046CD
1013
1013BK
1013WH
1013NM
1013CD
1013BKNM
1013CDNM
Features
1. Housing: .032 (#20 ga.) Aluminum. U.L. listed convertible IC/NON-
IC. Integral retaining spring secures housing to ceilings up to 2" thick.
Removable for access to junction box and ceiling plenum.
2. Junction Box: 2 1/2" X 2 1/2" X 3 1/2" (21 cu. in.) .032 (#22 ga.) galva-
nized steel. U.L. listed for 90°C supply wire. Integral cable clamps permit
attachment of non-metallic (#12 or #14 ga.) Romex
additional connectors.
3. Socket Housing: Impact extruded aluminum or galvanized steel. Attached
trim retaining spring secures trim to any height on housing wall.
4. Socket: Porcelain medium base: nickel plated screw shell. Pre-wired with
#18 ga. SF1 (300 VOLT 200°C) leads to junction box.
5. Thermal Protector: Meets NEC and U.L. requirements. Located inside
housing.
Lytecaster
5" Aperture
Incandescent Convertible IC/Non-IC Remodeler Frame-In Kit
5 1/4"
5
1
7 1/2"
3
4
Open Downlight
Satin
Baffles
Basic
Cone
White
1008
1005
1071
1008NM
1005NM
1010
1005BNM
1010NM
1005WH
1076
1076WH
®
