Lightolier Lytecaster 2002P1 Specification

Page 1 of 1
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Specular
Reflector
2002P1 2045
2046
2046CD
Features

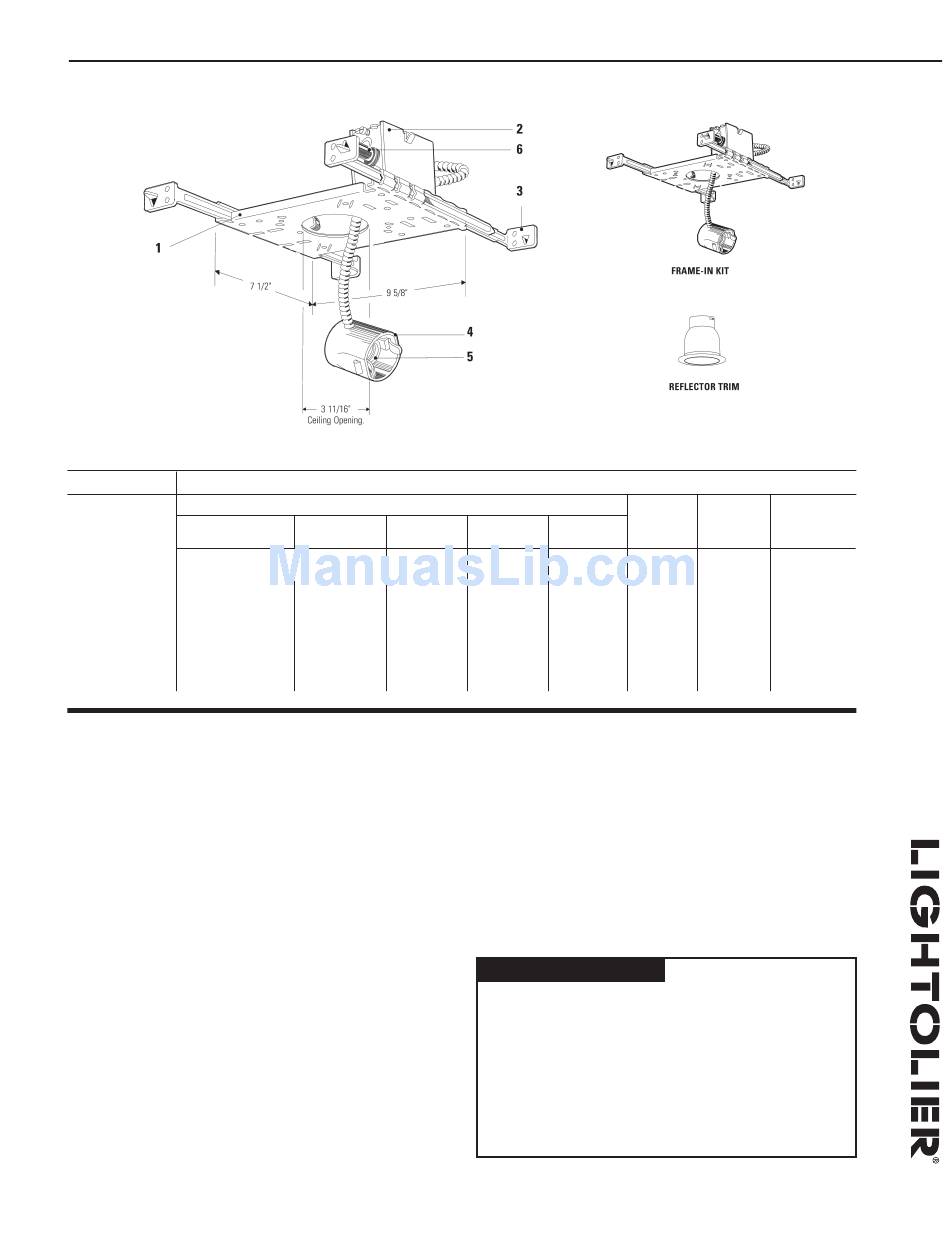

1. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1" thick. Push-in/twist-out rotoclips hold reflector flush to
ceiling.
2. Junction Box: 4" x 3 1/2"x 2", .063" (#14 ga.) galvanized steel. U.L. listed for
maximum of 8 No. 12 ga. 75° C through branch circuit conductors (60° C for
end of run). Integral cable clamps permit attachment of nonmetallic Romex
or armored cable without need of additional connectors.
3. Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend to 27"
with integral nailing tabs. Attaches to wood joist without need of
accessories.
4. Socket Housing: Aluminum or galvanized steel.
5. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with
#18 ga. SF1 leads to junction box.
6. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
Lytecaster
Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight
Cone Satin
Cone
2012 2008
2012NM 2010NM
2013 2010
2013NM 2008NM
2013BKNM
2013BK
2013CD
2013CDNM
2013WH
®
Recessed Downlighting
®
3 3/4" Aperture Incandescent Standard Frame-In Kit
Baffles Pinhole Wall
Washer
2005 2011 2095
2005BNM 2096
2005NM 2096CD
2005WH
Options & Accessories
Mounting Bars: 1964 - 20" set of (2)
T-Bar Ceiling Clips: 1956 - set of (4)
Plaster Ceiling Ring: 1960 - 7/8" depth for wet plaster ceilings.
277V Remote Step-Down
Transformer: 7997 - 277V down to 120V, 300W maximum load
Extra Thick Ceiling Ring (2" max): 1967C
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex is a registered trademark of General Cable Industies Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
