Lightolier Lytecaster 1004IC Specification

Page 1 of 1
7
1
2
5
6
5" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Anodized Anodized
Reflector Cone
1004IC 1045 1012
1004ICQ** 1046 1012NM
1004ICN 1046CD 1013
1004ICNQ** 1013BK
1013CD
1013NM
1013BKNM
1013CDNM
1013WH

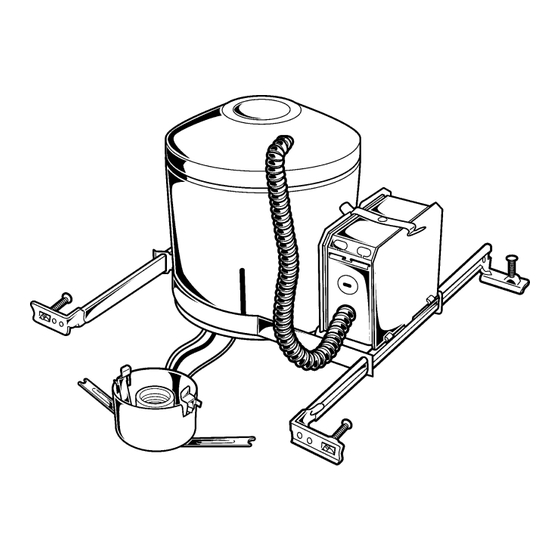

Features

1. Housing: .032 (#20 ga.) aluminum. UL listed convertible IC/NON-IC. 2"
vertical adjustment in ceiling. Can be removed for access to junction box
and ceiling plenum. AirSeal housing minimizes air leakage to less than 2
®
CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code (Section
602.3.3) and Washington State Energy Code (Section 502.4) and reduces
heat loss and condensation in ceiling.
2. Mounting Frame: .048 (#18 ga.) galvanized steel. Locks into position along
length of mounting bars with locking spring and bendable slot. (3) slots 90°
apart simplify alignment.
3. Junction Box: 2"X 4" X 3 1/2" (22 cu. in.) .032 (#22 ga.) galvanized steel.
UL listed for maximum 6 (#12 ga.) 1004IC/N 90°C through branch circuit con-
ductors. Integral cable clamps permit attachment of non-metallic (#12 or #14
ga.) Romex cable without tools or additional connectors.
®
4. Mounting Bars: .059 (#16 ga.) galvanized steel. Bars pivot for easy attach-
ment and wire-in below ceiling line. Bars extend to accommodate 16" to
24" O.C. joist spacing. The 1004IC features integral self-tapping philips
screws for secure attachment to wood or metal construction. The 1004ICN
features integral nails for secure attachment to wood. Both attach to T-bar
ceilings without the need of accessories.
5. Socket Housing: Impact extruded aluminum or galvanized steel. Attached
trim retaining spring secures trim to any height on housing wall.
6. Socket: Porcelain medium base: nickel plated screw shell. Pre-wired with
#18 ga. SF1 (300 VOLT 200° C) leads to junction box.
7. Thermal Protector: Meets NEC and UL requirements. Located inside
housing.
Lytecaster
5" Aperture
1004ICN
(Integral Nail)
1004IC
(Integral Screw)
13 3/4" MIN.
24" MAX.
3
Overall Height
4
1004IC/N: 7 1/2"
1104IC
Open Downlight
Satin Baffles Basic
Cone White
1008 1005 1071
1008NM 1005NM
1010 1005WH
1010NM 1005BNM
1076
1076WH
Recessed Downlighting
®
Incandescent Convertible IC/Non-IC Frame-In Kit
Overall Length
1004IC/N: 9"
Overall Width
1004IC/N: 5 3/4"
Top View
Adjustable
Eyeball Enclosed Open
Diffusers Wet Location
1022 1021* 1081CD
1022WH 1024* 1081WH
1082 1177LX
1088 1178LX
1088GW 1090*
1088WH
* For Non-IC applications only.
**Supplied with integral push-In wire connectors
Options & Accessories
AirSeal Kit: LAS56
®
NOTE: Use only if factory installed tape or knockouts are removed from vertical
adjustment slots in housing wall.

Labels

UL (Type IC/NON-IC Convertible; Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
AirSeal ® is a registered trademark of Lightolier.
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
