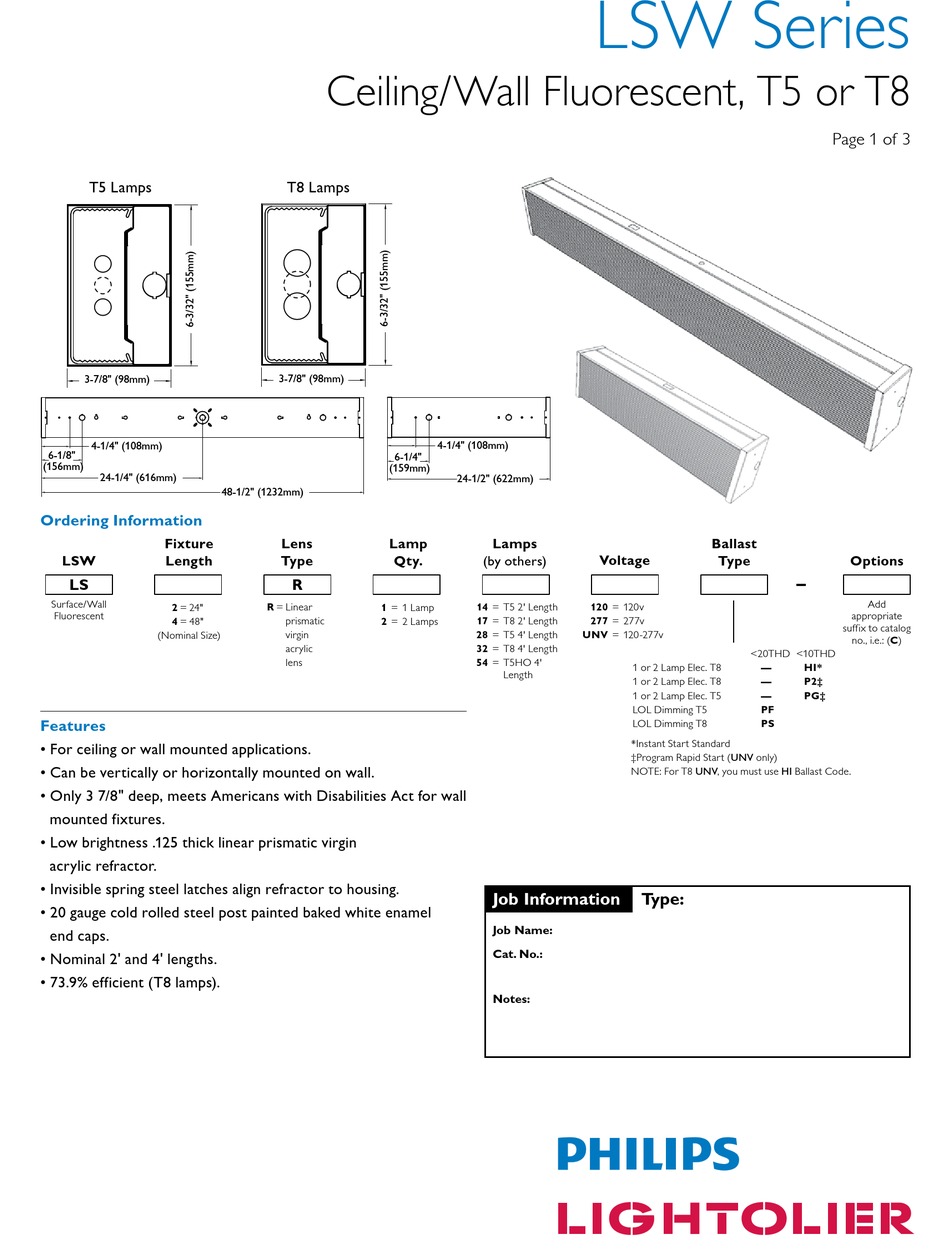

Lightolier LSW Series Specification

T5 Lamps
mm)
3-7/8" (98mm)
4-1/4" (108mm)
6-1/8"
(156mm)
24-1/4" (616mm)
Ordering Information
Fixture
4 1
LSW Length
LS
Surface/Wall
2 = 24"
Fluorescent
4 = 48"
(Nominal Size)
Features
4 3/8 (11 mm
• For ceiling or wall mounted applications.
1/
( 59 )
• Can be vertically or horizontally mounted on wall.
24 8 (619mm
• Only 3 7/8" deep, meets Americans with Disabilities Act for wall
mounted fixtures.
• Low brightness .125 thick linear prismatic virgin
acrylic refractor.
6 3/8"
• Invisible spring steel latches align refractor to housing.
24-3/4" ( 29mm
• 20 gauge cold rolled steel post painted baked white enamel
end caps.
• Nominal 2' and 4' lengths.
• 73.9% efficient (T8 lamps).

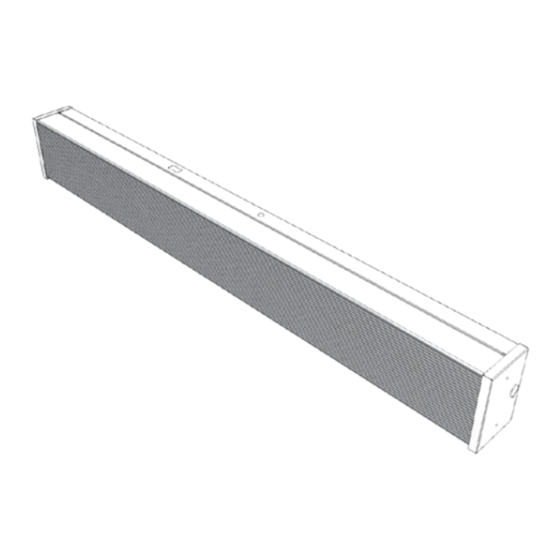

Ceiling/Wall Fluorescent, T5 or T8
T8 Lamps
3-7/8" (98mm)
6-1/4"
(159mm)
48-1/2" (1232mm)
Lens Lamp
Type Qty.
R
R = Linear 1 = 1 Lamp
prismatic 2 = 2 Lamps
virgin
acrylic
lens
4 /4 (1238mm)
LSW Series
4-1/4" (108mm)
24-1/2" (622mm)
Lamps
(by others) Voltage
14 = T5 2' Length 120 = 120v
17 = T8 2' Length 277 = 277v
28 = T5 4' Length UNV = 120-277v
32 = T8 4' Length
54 = T5HO 4'
Length
8 3/4"
Job Information
Job Name:
Cat. No.:
Notes:
Ballast
Type
<20THD <10THD
1 or 2 Lamp Elec. T8 — HI*
1 or 2 Lamp Elec. T8 — P2‡
— PG‡
1 or 2 Lamp Elec. T5
PF
LOL Dimming T5
PS
LOL Dimming T8
*Instant Start Standard
‡Program Rapid Start (UNV only)
NOTE: For T8 UNV, you must use HI Ballast Code.
Type:
100
Page 1 of 3
Options
Add
appropriate
suffix to catalog
no., i.e.: (C)
