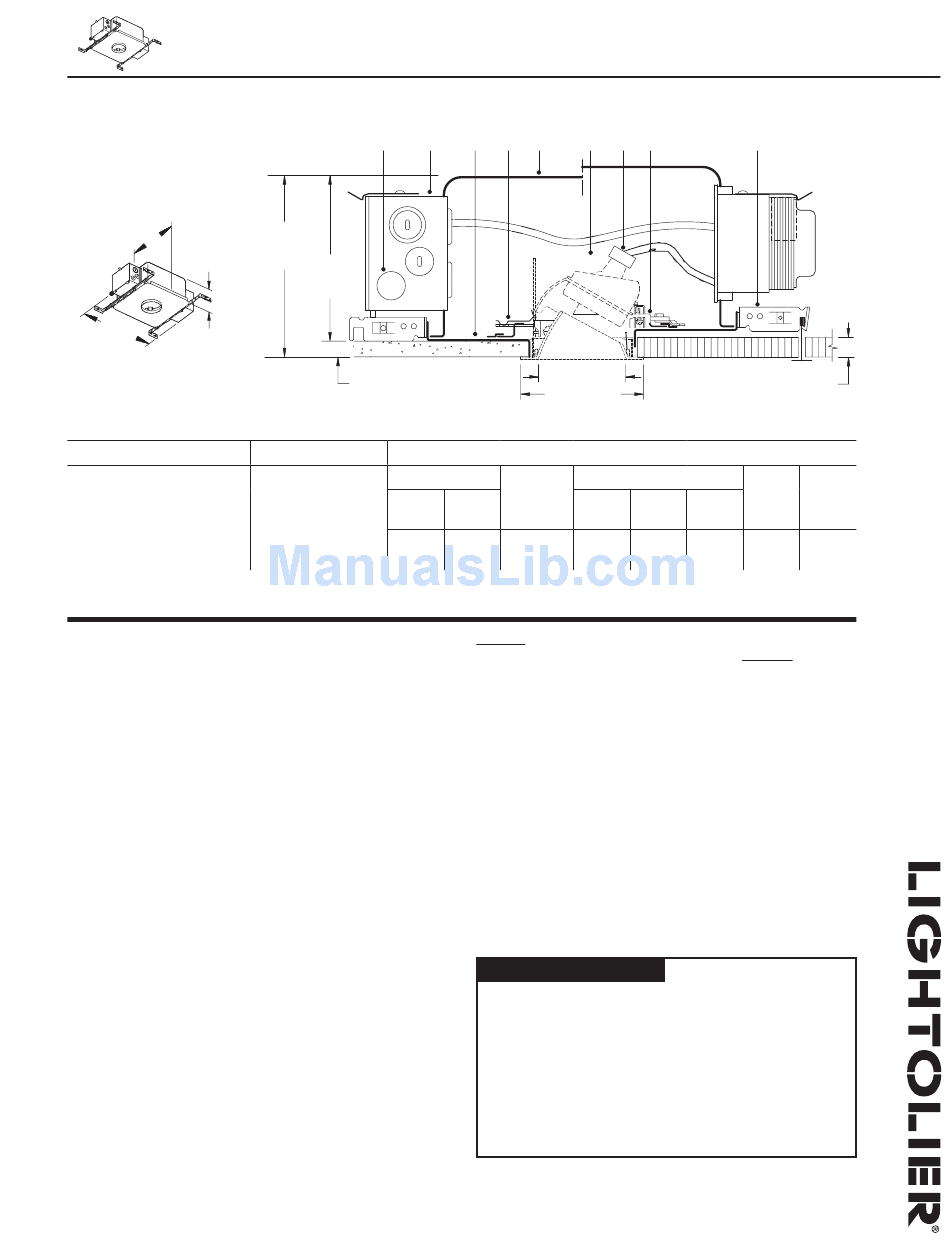

Lightolier Calculite Evolution Non-IC Airseal C3ALV Specification

Calculite
Page 1 of 1
9 5/8"
(245mm)
Plus Ceiling Thk.
5" (127mm)
14 3/8"
(365mm)
Ceiling Cutout: 3-1/2" (89 mm) Dia.
For Complete Fixture Order: Trim Kit + Frame-In Kit. Each Sold Separately.
Frame-In Kit
C3ALV Magnetic 120V/277V
C3ALVE1 Electronic 120V
C3ALVE2 Electronic 277V
* Lamp wattage restriction: 65W for up to 1" thick ceiling, 50W for ceiling thickness greater than 1" (up to 2")
Note: Magnetic not recommended for residential or noise sensitive areas.
Features
1. Housing: Drawn, 0.036" (20 Ga.) steel. Matte black finish. Tight rigidly
built housing minimizes air leakage to less than 2 CFM at 1.57 PSF (or
75pa), which complies with Model Energy Code and Washington State
Energy Code and reduces heat loss and condensation in ceiling.
2. Mounting Frame: Die-formed, 0.036" (20 Ga.) steel, matte black finish.
1/2" deep integral lip. Four slots are positioned 90° apart to simplify
alignment.
3. Trim Kit Horizontal Adjustment Mechanism: Die-formed steel ring,
matte black finish. Provides 362° horizontal stop, lockable with Philips
screwdriver.
4. Thick Ceiling Vertical Adjustment Mechanism: Adjustable trim kit
vertically to accommodate up to 2" thick ceiling, tool less and lockable.
5. Mounting Bars: Galvanized steel, 0.059" (#16 ga.). Bars pivot for easy
attachment and wire-in below ceiling line. Pre-installed telescoping
bars extend to accommodate 16" to 24" O.C. joist spacing. Bars can
accommodate 12" O.C. joist spacing after a slight field modification.
Integral nails for secure attachment to wood; attach to T-bar ceilings with
out the need of accessories.
6. Lampholder: Procelain bi-pin socket. Pre-wired with No.18 AWG
Teflon leads.
7. Junction Box: 3-1/2" X 4" X 2-3/8" deep; 0.063" (#14 ga.) galvanized
steel. UL listed for maximum of (8) No. 12 AWG 90° C through branch
circuit conductors. Accessible from inside and outside of luminaire.
Outside J-Box door is hinged for maximum opening.
8. Thermal Protector: Meets NEC and UL requirements. Insulation must
be kept 3" away from any parts of the luminaire and must not be placed
above luminaire in a manner which will entrap heat.
9. Trim Kit: Order Separately. See individual trim kit specification sheets for
information.
Electrical:
Transformer: Replaceable from below; Transformer door rotates into fixture,
positioning transformer directly over aperture to allow one-handed removal
Evolution Non-IC Airseal
®
8 7
5" (127mm)
5 1/2"
(140mm)
1/2" (13mm) Lip
Lamp*
Downlight
42W-65W MR16 (12V) Open
20W-65W MR16 (12V) Reflector
20W-65W MR16 (12V)
C3MRD
Series
2 9 6
4 1
3" (76mm) Dia.
4" (102mm) Dia.
Trim Kit (See individual Trim Kit Specification Sheets)
Adjustable Accent
Wall Washer
Downlight
1 1/4" Cone
(Wet Loc.)
Pinhole
C3MRPD C3MRL C3MRA
Series Series Series
Magnetic: 120V/277V 60 Hz. dual-voltage, core & coil. (Note: Magnetic not
recommended for residential or noise sensitive areas.) Electronic: 120V or
277V 50/60 Hz., regulated lamp volage, HPF, EMI and circuit protections, ther-
mal auto-reset, quiet operation.
Dimming Controls: Use only dimmers specifically designed for use with
magnetic or electronic transformers. Consult Lightolier Control for informa-
tion. Low voltage luminaires may produce audible sound when used with dim-
mers, which may be objectionable in acoustically critical areas.
Labels
U.L. (Suitable For Damp Locations), I.B.E.W.
Complies with Air Leakage Requirements as stated in the Model Energy Code
and the Washington State Energy Code.

Options and Accessories

Plaster Trim Ring (use with flangeless trim kit): CA3FMR
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • E0711
Frame-In Kit
®
3" Aperture, MR16 (12V)
3 5
2" (59mm) Max.
Ceiling Thk.
Glasslite Glasslite
Downlight Adjustable
Cone 1 1/4"
(Wet Loc.) (Wet Loc.)
(Wet Loc.) (Wet Loc.)
C3MRW C3MRPA C3MRGD C3MRGA
Series Series Series
Type:
www.lightolier.com
C3ALV
Series
