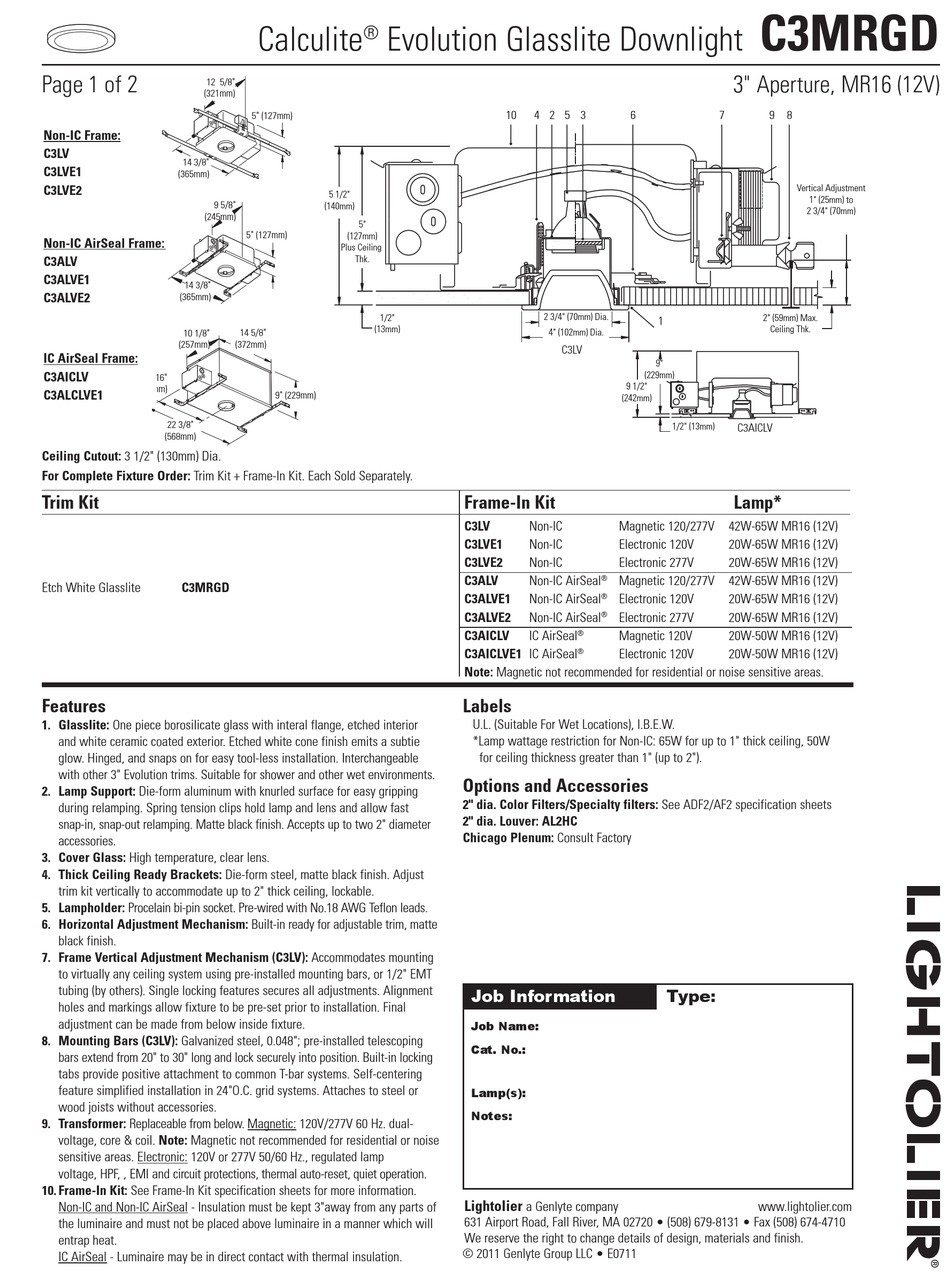

Page 1 of 2
Non-IC Frame:
Non-IC:
C3LV
C3LV
C3LVE1
14 3/8"
C3LVE1
C3LVE2
(365mm)
C3LVE2
Non-IC AirSeal Frame:
C3ALV
Non-IC AirSeal:
C3ALV
C3ALVE1
C3ALVE1 C3ALVE2
14 3/8"
C3ALVE2
(365mm)
10 1/8"
(257mm)
IC AirSeal Frame:
C3AICLV
11 3/16"
IC AirSeal:
(284mm)
C3ALCLVE1
C3AICLV C3AICLVE1
22 3/8"
(568mm)
Ceiling Cutout: 3 1/2" (130mm) Dia.
For Complete Fixture Order: Trim Kit + Frame-In Kit. Each Sold Separately.
Trim Kit
Spec. Sheet
C3MRGD
Etch White Glasslite
C3MRGD
Features
1. Glasslite: One piece borosilicate glass with interal flange, etched interior
and white ceramic coated exterior. Etched white cone finish emits a subtie
glow. Hinged, and snaps on for easy tool-less installation. Interchangeable
with other 3" Evolution trims. Suitable for shower and other wet environments.
2. Lamp Support: Die-form aluminum with knurled surface for easy gripping
during relamping. Spring tension clips hold lamp and lens and allow fast
snap-in, snap-out relamping. Matte black finish. Accepts up to two 2" diameter
accessories.
3. Cover Glass: High temperature, clear lens.
4. Thick Ceiling Ready Brackets: Die-form steel, matte black finish. Adjust
trim kit vertically to accommodate up to 2" thick ceiling, lockable.
5. Lampholder: Procelain bi-pin socket. Pre-wired with No.18 AWG Teflon leads.
6. Horizontal Adjustment Mechanism: Built-in ready for adjustable trim, matte
black finish.
7. Frame Vertical Adjustment Mechanism (C3LV): Accommodates mounting
to virtually any ceiling system using pre-installed mounting bars, or 1/2" EMT
tubing (by others). Single locking features secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below inside fixture.
8. Mounting Bars (C3LV): Galvanized steel, 0.048"; pre-installed telescoping
bars extend from 20" to 30" long and lock securely into position. Built-in locking
tabs provide positive attachment to common T-bar systems. Self-centering
feature simplified installation in 24"O.C. grid systems. Attaches to steel or
wood joists without accessories.
9. Transformer: Replaceable from below. Magnetic: 120V/277V 60 Hz. dual-
voltage, core & coil. Note: Magnetic not recommended for residential or noise
sensitive areas. Electronic: 120V or 277V 50/60 Hz., regulated lamp
voltage, HPF, , EMI and circuit protections, thermal auto-reset, quiet operation.
10. Frame-In Kit: See Frame-In Kit specification sheets for more information.
Non-IC and Non-IC AirSeal - Insulation must be kept 3"away from any parts of
the luminaire and must not be placed above luminaire in a manner which will
entrap heat.
IC AirSeal - Luminaire may be in direct contact with thermal insulation.
Spec. Sheet
Calculite
Evolution Glasslite Downlight
®
C3MRGD
12 5/8"
(321mm)
5" (127mm)
5 1/2"
9 5/8"
(140mm)
(245mm)
5"
5" (127mm)
(127mm)
Plus Ceiling
Thk.
1/2"
(13mm)
14 5/8"
(372mm)
9" (229mm)
10
4
2
5
3
6
2 3/4" (70mm) Dia.
4" (102mm) Dia.
C3LV
(229mm)
9 1/2"
(242mm)
Frame-In Kit
C3LV
Non-IC
Magnetic 120/277V
C3LVE1
Non-IC
Electronic 120V
C3LVE2
Non-IC
Electronic 277V
C3ALV
Non-IC AirSeal
Magnetic 120/277V
®
C3ALVE1
Non-IC AirSeal
Electronic 120V
®
C3ALVE2
Non-IC AirSeal
®
Electronic 277V
C3AICLV
IC AirSeal
Magnetic 120V
®
C3AICLVE1 IC AirSeal
Electronic 120V
®
Note: Magnetic not recommended for residential or noise sensitive areas.
Labels
U.L. (Suitable For Wet Locations), I.B.E.W.
*Lamp wattage restriction for Non-IC: 65W for up to 1" thick ceiling, 50W
for ceiling thickness greater than 1" (up to 2").
Options and Accessories
2" dia. Color Filters/Specialty filters: See ADF2/AF2 specification sheets
2" dia. Louver: AL2HC
Chicago Plenum: Consult Factory
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • E0711
C3MRGD
3" Aperture, MR16 (12V)
7
9 8
Vertical Adjustment
1" (25mm) to
2 3/4" (70mm)
2" (59mm) Max.
1
Ceiling Thk.
9"
1/2" (13mm)
C3AICLV
Lamp*
42W-65W MR16 (12V)
20W-65W MR16 (12V)
20W-65W MR16 (12V)
42W-65W MR16 (12V)
20W-65W MR16 (12V)
20W-65W MR16 (12V)
20W-50W MR16 (12V)
20W-50W MR16 (12V)
Type:
www.lightolier.com
