Lightolier 1102T series Instructions For Maintenance Reference

(
(
STEP3
R ,.,.,.
, .,,
"
..... ,.,.,.,.. , ,
:,,.,' .,, ,, . .
REFLECTOI
HOUSING
F
SOCKET
CUP
SIDE
OPENING
F
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
INSTRUCTION SHEET NO.
This fixture is intendedfor installationin accordancewith the NationalElectricalCode and local
regulations.To
assure full compliance with local codes and regulations, check with your local electrical
inspector before installation.
To
prevent eleckical shock, turnoff electricity at fuse box before proceeding.
IS:1105T
Retain these instructionsfor maintenancereference.
R0791 Page 1 of 2

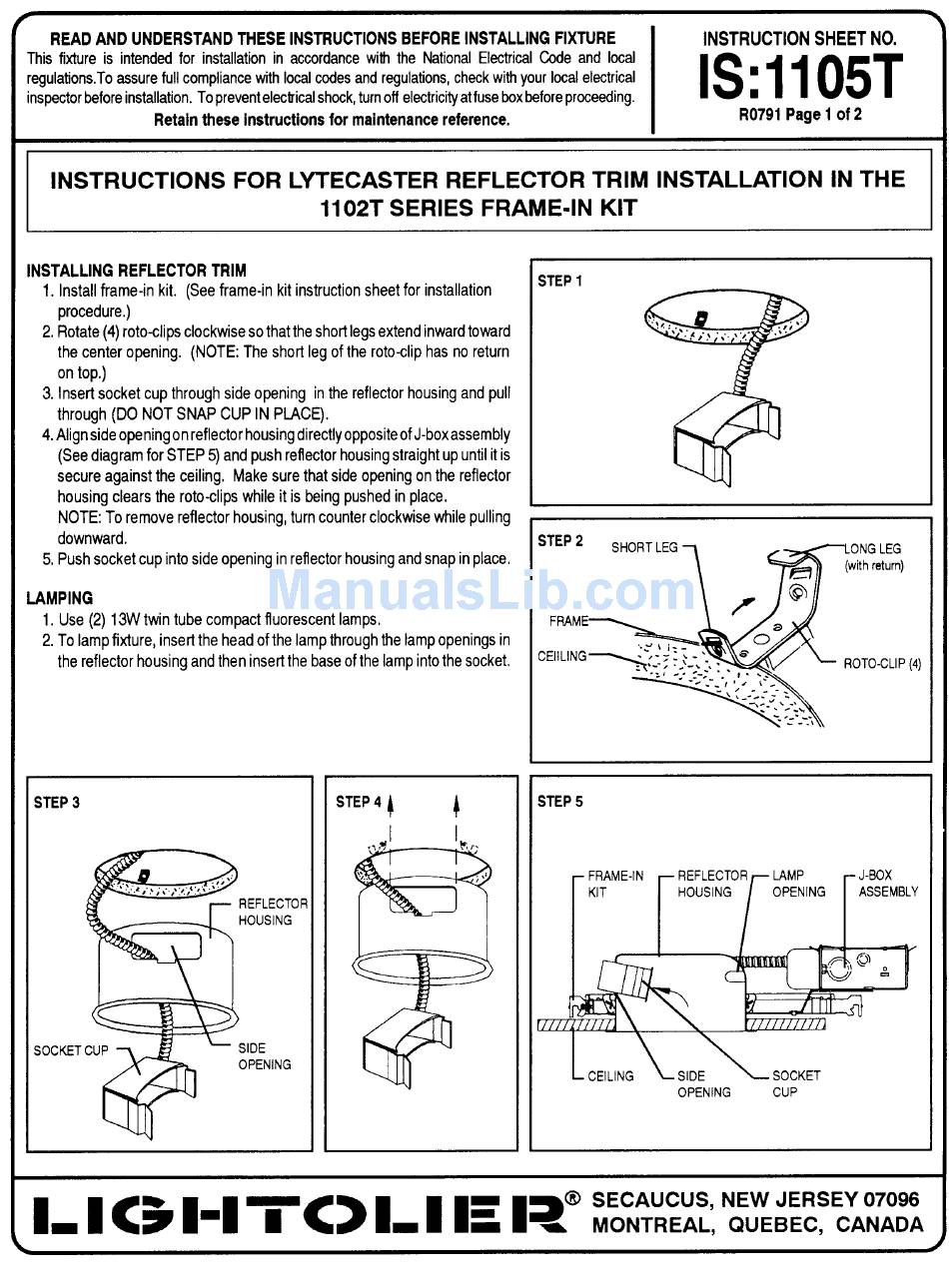

INSTRUCTIONS FOR LWECASTER REFLECTOR TRIM INSTALLATION IN THE
II02T SERIES FRAME-IN KIT
INSTALLING REFLECTORTRIM
1,Install frame-in kit. (Seeframe-in kit instructionsheet for installation
STEP1
procedure,)
2. Rotate(4) roto-clipsclockwiseso that the shortlegsextendinwardtoward
the center opening, (NOTE: The short leg of the roto-clip has no return
on top.)
3. Insert socket cup through side opening in the reflectorhousingand pull
through (DO NOT SNAP CUP IN PLACE).
4. Align side opening onreflectorhousing directly opposite of J-box assembly
(See diagram for STEP 5) and push reflector housing straight up until it is
secure against the ceiling, Make sure that side openingon the reflector
housing clears the roto-clips while it is being pushed in place.
NOTE: To remove reflectorhousing,turn counterclockwisewhile pulling
downward,
STEP2
5, Pushsocket cup into side openingin reflectorhousingand snap in place.
SHORT LEG
Y
ONG LEG
(with return)
LAMPING
1. Use (2) 13W twin tube compact fluorescent lamps,
7G
2. To lamp fixture, insert the head of the lamp through the lamp openings in
'"ME> "
the reflector housing and then insert the base of the lamp into the socket,
CE''L'NGV:':;+ :.:0
ROTO-CLIP
(4)
Yi:-
?
LBC31=[
7-C> 1-1 E R" ER#R?:;s%it
