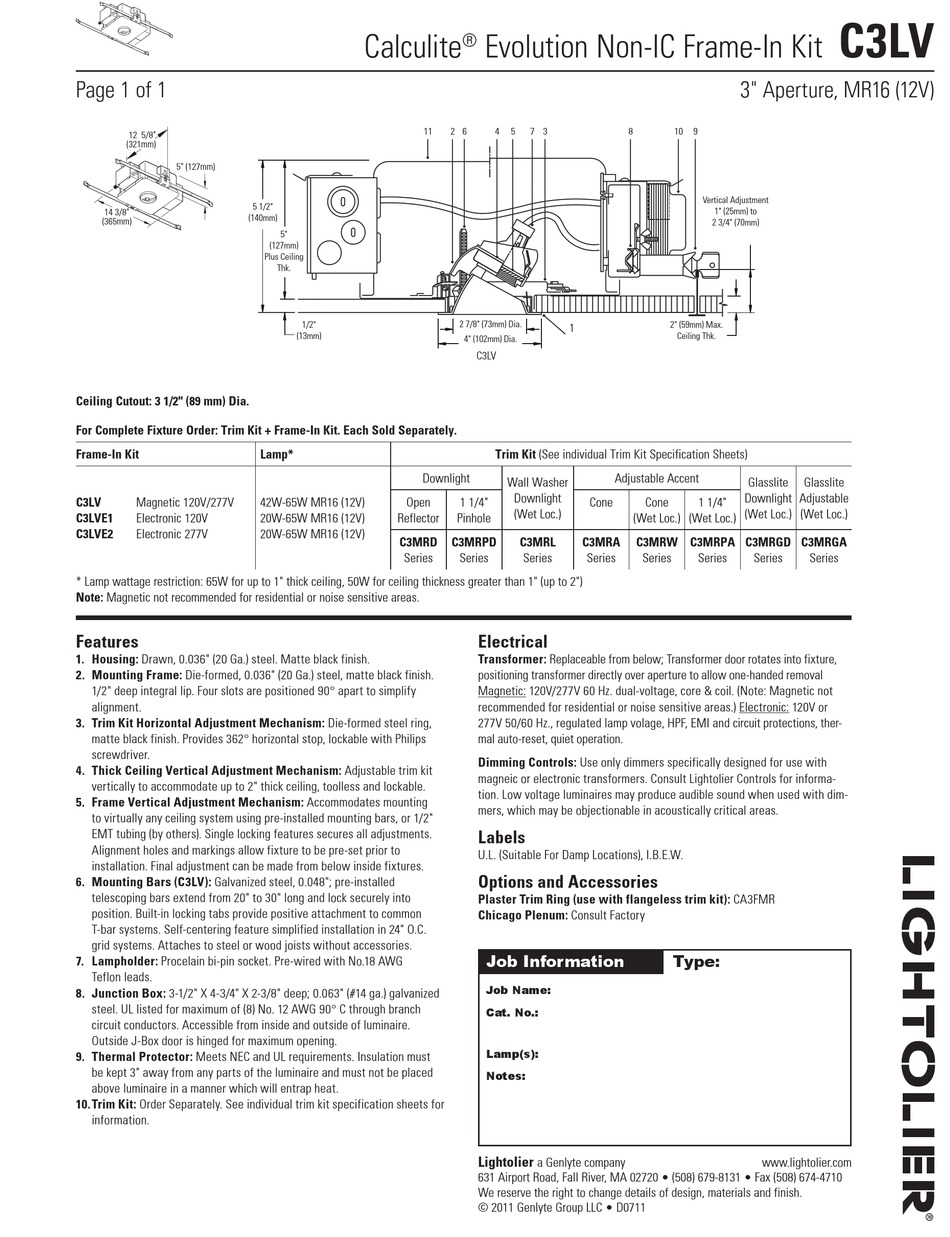

Lightolier Calculite C3LV Specification

Page 1 of 1
12 5/8"
(321mm)
5" (127mm)
5 1/2"
14 3/8"
(140mm)
(365mm)
C3LV
Ceiling Cutout: 3 1/2" (89 mm) Dia.
For Complete Fixture Order: Trim Kit + Frame-In Kit. Each Sold Separately.
Frame-In Kit
C3LV Magnetic 120V/277V
C3LVE1 Electronic 120V
C3LVE2 Electronic 277V
* Lamp wattage restriction: 65W for up to 1" thick ceiling, 50W for ceiling thickness greater than 1" (up to 2")
Note: Magnetic not recommended for residential or noise sensitive areas.
Features
1. Housing: Drawn, 0.036" (20 Ga.) steel. Matte black finish.
2. Mounting Frame: Die-formed, 0.036" (20 Ga.) steel, matte black finish.
1/2" deep integral lip. Four slots are positioned 90° apart to simplify
alignment.
3. Trim Kit Horizontal Adjustment Mechanism: Die-formed steel ring,
matte black finish. Provides 362° horizontal stop, lockable with Philips
screwdriver.
4. Thick Ceiling Vertical Adjustment Mechanism: Adjustable trim kit
vertically to accommodate up to 2" thick ceiling, toolless and lockable.
5. Frame Vertical Adjustment Mechanism: Accommodates mounting
to virtually any ceiling system using pre-installed mounting bars, or 1/2"
EMT tubing (by others). Single locking features secures all adjustments.
Alignment holes and markings allow fixture to be pre-set prior to
installation. Final adjustment can be made from below inside fixtures.
6. Mounting Bars (C3LV): Galvanized steel, 0.048"; pre-installed
telescoping bars extend from 20" to 30" long and lock securely into
position. Built-in locking tabs provide positive attachment to common
T-bar systems. Self-centering feature simplified installation in 24" O.C.
grid systems. Attaches to steel or wood joists without accessories.
7. Lampholder: Procelain bi-pin socket. Pre-wired with No.18 AWG
Teflon leads.
8. Junction Box: 3-1/2" X 4-3/4" X 2-3/8" deep; 0.063" (#14 ga.) galvanized
steel. UL listed for maximum of (8) No. 12 AWG 90° C through branch
circuit conductors. Accessible from inside and outside of luminaire.
Outside J-Box door is hinged for maximum opening.
9. Thermal Protector: Meets NEC and UL requirements. Insulation must
be kept 3" away from any parts of the luminaire and must not be placed
above luminaire in a manner which will entrap heat.
10. Trim Kit: Order Separately. See individual trim kit specification sheets for
information.
Calculite
11
5"
(127mm)
Plus Ceiling
Thk.
1/2"
(13mm)
Flangeless Trim with
Plaster Ring Accessory
Lamp*
3 3/8" (86mm) Dia.
Downlight
42W-65W MR16 (12V) Open
20W-65W MR16 (12V) Reflector
20W-65W MR16 (12V)
C3MRD
Series
Evolution Non-IC Frame-In Kit
®
2 6 4 5 7 3 8
2 7/8" (73mm) Dia.
1
4" (102mm) Dia.
C3LV
9"
(229mm)
9 1/2"
(242mm)
Trim Kit (See individual Trim Kit Specification Sheets)
1/2" (13mm) Adjustable Accent
Wall Washer
Downlight
1 1/4" Cone
(Wet Loc.)
Pinhole
C3MRPD C3MRL C3MRA
Series Series Series
Electrical
Transformer: Replaceable from below; Transformer door rotates into fixture,
positioning transformer directly over aperture to allow one-handed removal
Magnetic: 120V/277V 60 Hz. dual-voltage, core & coil. (Note: Magnetic not
recommended for residential or noise sensitive areas.) Electronic: 120V or
277V 50/60 Hz., regulated lamp volage, HPF, EMI and circuit protections, ther-
mal auto-reset, quiet operation.
Dimming Controls: Use only dimmers specifically designed for use with
magneic or electronic transformers. Consult Lightolier Controls for informa-
tion. Low voltage luminaires may produce audible sound when used with dim-
mers, which may be objectionable in acoustically critical areas.
Labels
U.L. (Suitable For Damp Locations), I.B.E.W.

Options and Accessories

Plaster Trim Ring (use with flangeless trim kit): CA3FMR
Chicago Plenum: Consult Factory
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • D0711
3" Aperture, MR16 (12V)
10 9
Vertical Adjustment
1" (25mm) to
2 3/4" (70mm)
2" (59mm) Max.
Ceiling Thk.
C3AICLV
Glasslite Glasslite
Downlight Adjustable
Cone 1 1/4"
(Wet Loc.) (Wet Loc.)
(Wet Loc.) (Wet Loc.)
C3MRW C3MRPA C3MRGD C3MRGA
Series Series Series Series
Type:
www.lightolier.com
C3LV
