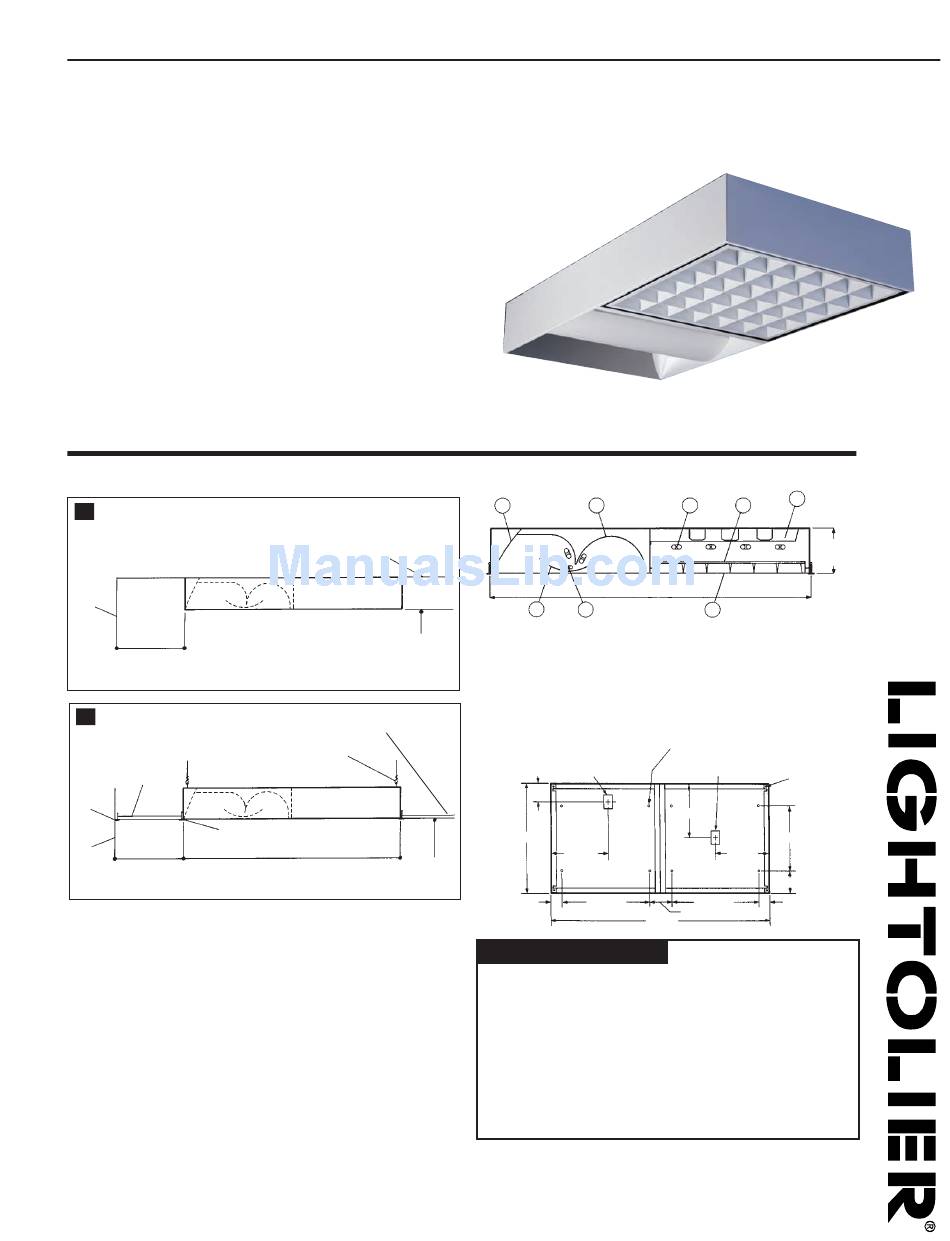

Lightolier Md.Coffer MDCGWSVA2SB4SB Specification

MD * Coffer 2' x 4' Recessed or Surface
Page 1 of 4
Features
• Four integral lighting functions: indirect ambient, direct reading,
examination and optional night light.
• Precise light control for glare free patient environment.
• Installs as a one-piece unit.
• Recessed or surface mounted to ceiling which eliminates damage to
fixture from hospital equipment attached to bed.
• 6-7/8" deep.
• All lamps are shielded.
• All twin tube T5 lamps are accessible for relamping without tools.
• All ballasts accessible thru louver compartment.
• Optional low voltage electronic sequential switch mounted in fixture
for ambient and reading light controlled with pillow speaker
(optional by others).
• Optional night light.
• Meets NYC Code requirements. Chicago Plenum requirements
available.
Mounting Methods
surface
S
Wall
Mount
12" - 18"
from wall
Exposed T-grid ceiling
G
Accoustical tile
Wall angle (by others)
or T-bar
(by others)
T-bar
Mount
(by others)
12" - 18"
Wall
from wall
6/07
Ceiling
9'6" max.
mounting
height
Accoustical tile
(by others)
Secure fixture
(4 places)
48"
9'-6" max.
ceiling
height
MDCGWSVA2SB4SB
Indirect Ambient Light with Perforated Mesh Shield
Dimensions
1 3
48" (1219mm)
2 7
1. Reading light with low iridescence anodized semi-specular aluminum reflector.
2. Perforated mesh lamp shield with white acrylic overlay.
3. Ambient light with flat white reflector (flat white interior).
4. Examination light with 36 (6x6) cell flat white baked enamel louver.
5. Prismatic virgin acrylic overlay.
6. Twin tube T5 lamps (6).
7. Optional night light 7/9 watt PL.
8. Ballast compartment accessible by opening louver and reflector.
2" x 3" access plate with (2) 7/8"
dia. K.O.s (Ambient/Reading)
4"
23-3/4"
12-3/4"
19-11/16"
2-1/32"
47-3/4"
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 a Genlyte company
Multi-Function Patient Lighting
8
6 5
6-7/8"
(175mm)
4
Mounting holes (8)
2" x 3" access plate with (2) 7/8"
dia. K.O.s (Examination)
Tabs for wire
supports
(4 places)
11-7/8"
14"
11-7/8"
4-7/8"
19-11/16" 2-1/32"
4-5/16"
Type:
www.lightolier.com
Section 8/Folio R40-21 Rev. A
