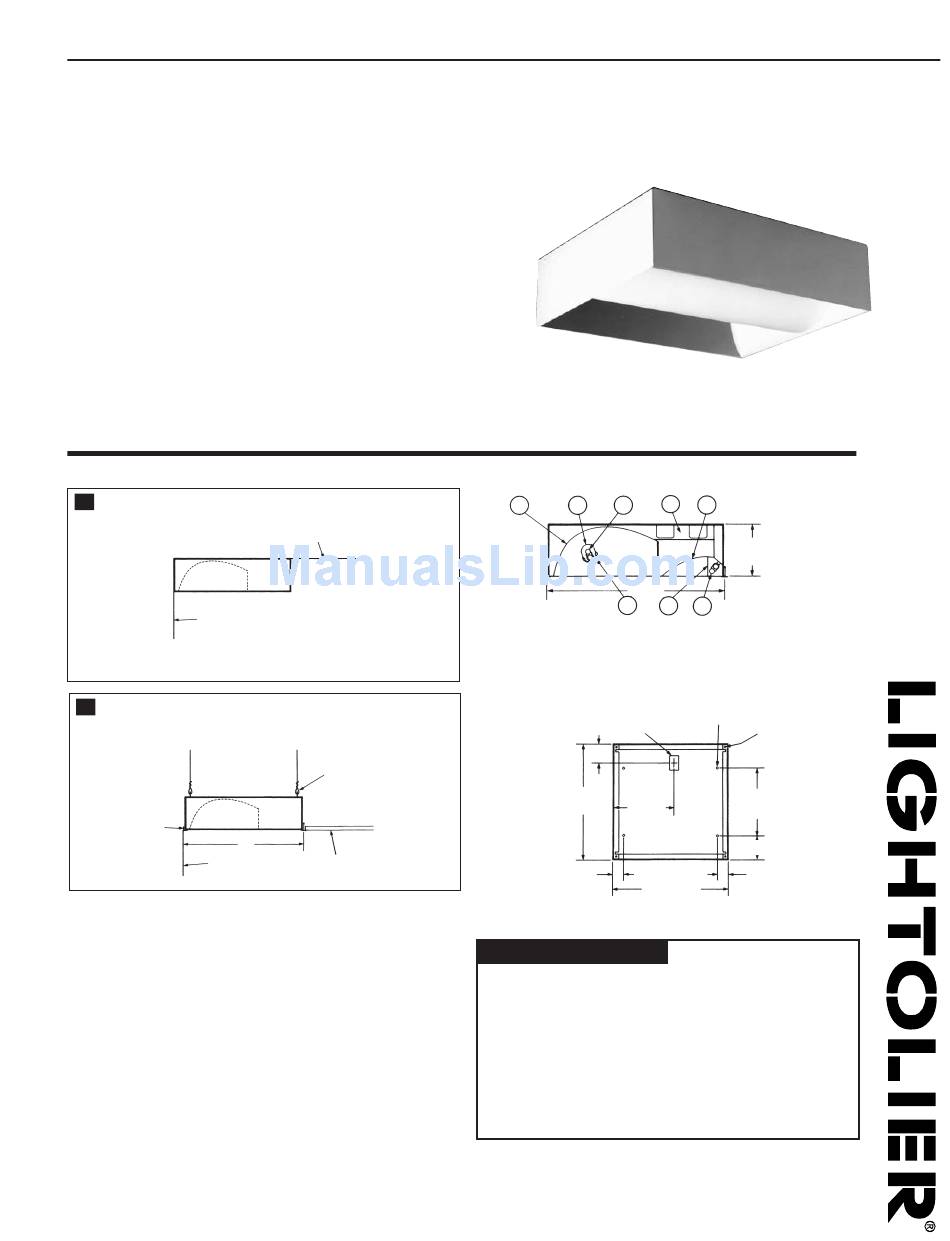

Lightolier MD2G2SB Specification

Page 1 of 4
Features
• Three lighting functions with intregral ambient, reading and optional
nurse's night light.
• Precise light control for glare free patient environment.
• Installs as a one-piece unit.
• Recessed or surface mounted to ceiling against wall which elimi-
nates damage to fixture from hospital equipment attached to bed.
• 6-7/8" deep.
• All lamps are enclosed.
• All twin tube T5 lamps are accessible for relamping without tools.
• Optional low voltage electronic sequential switch mounted in fixture
for ambient and reading light controlled with pillow speaker
(optional by others).
• Optional night light.
• Meets NYC Code requirements. Chicago Plenum requirements
available.
MOUNTING METHODS
Surface
S
Wall
exposed T-grid ceiling
G
Wall angle
or T-bar
by others
48"
Wall
4/07
MD * 4 2' x 2' Recessed or Surface
DIMENSIONS
Ceiling
Secure fixture
(4 places)
Acoustical Tile
(by others)
Lightolier
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 a Genlyte company
Multi-Function Patient Lighting
5 4
1
24"
(610mm)
2
1. Reading light with low iridescence anodized semi-specular aluminum reflector.
2. Extruded aluminum lamp baffle.
3. Ambient light with low iridescence anodized semi-specular aluminum reflector.
4. Twin tube T5 lamps (2).
5. Clear acrylic lens.
6. Ballast compartment.
2" x 3" access plate with
(2) 7/8" dia. K.O.s
4" (102mm)
23-3/4"
12-3/4"
(603mm)
(324mm)
2-1/32"
19-11/16" (500mm)
(52mm)
23-3/4" (603mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
a Genlyte company
MD2G2SB
6
3
6-7/8"
(175mm)
5
4
Mounting holes (4)
Tabs for wire
supports
(4 places)
14"
(356mm)
4-7/8" (124mm
2-1/32"
(52mm)
Type:
www.lightolier.com
Section 8/Folio R40-12 Rev. B
