INSTRUCTION SHEET NO

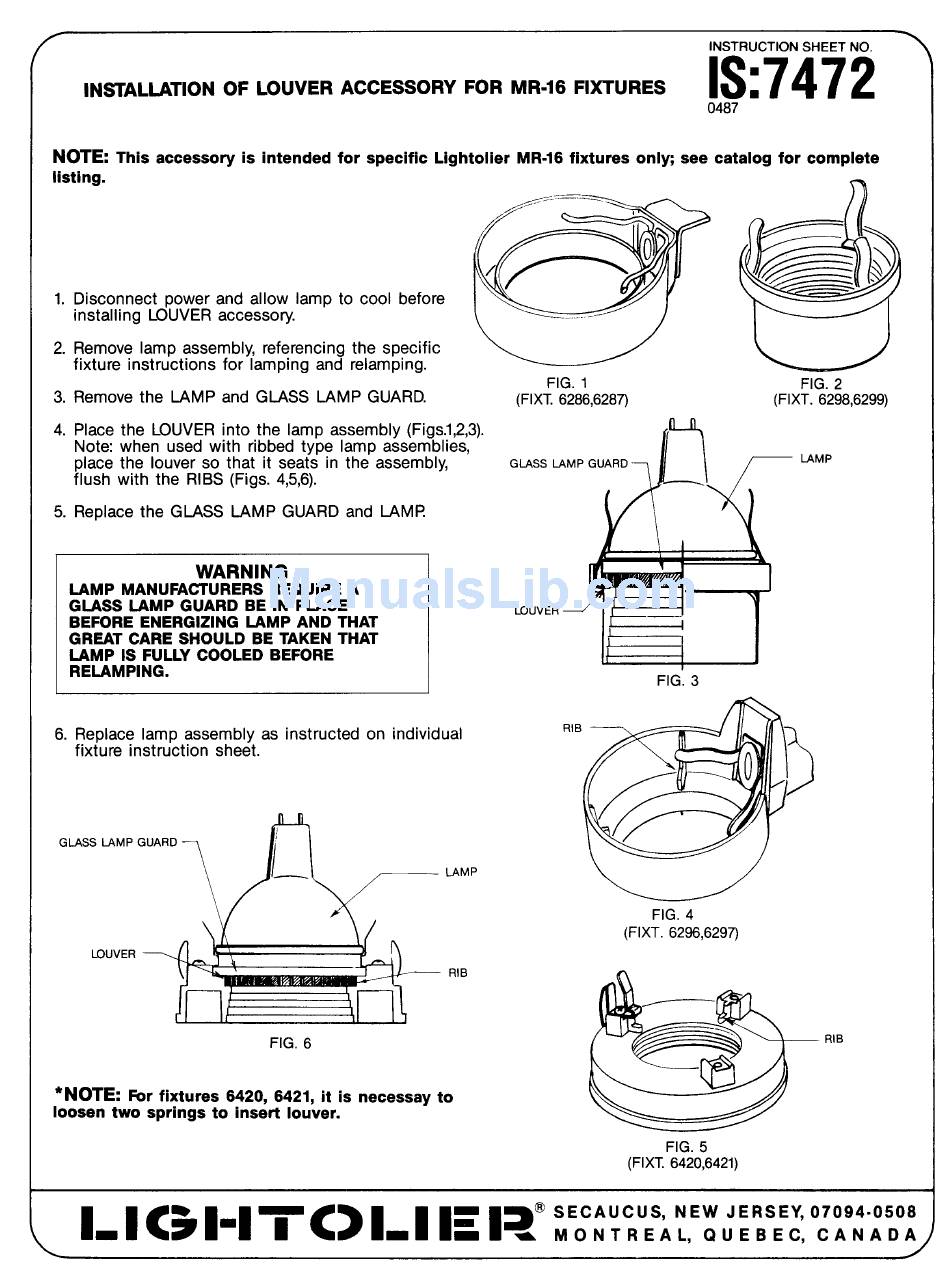

INSTALLATION OF LOUVER ACCESSORY FOR MR-16 FIXTURES
IS:7472
0487
NOTE:
This accessory is intended for specific Lightolier MR-16 fixtures only see catalog for complete
listing.
1. Disconnect power and allow lamp to cool before
installing LOUVER accessory.
~e~ @4
2. Remove lamp assembly, referencing the specific
fixture instructions for Iamping and relamping.
~u
3. Remove the LAMP and GLASS LAMP GUARD.
4. Place the LOUVER into the lamp assembly (Figs.l,2,3).
Note: when used with ribbed type lamp assemblies,
place the louver so that it seats in the assembly,
flush with the RIBS (Figs. 4,5,6).
5. Replace the GLASS LAMP GUARD and LAMP
WARNING
LAMP MANUFACTURERS REQUIRE A
GLASS LAMP GUARD BE IN PLACE
BEFORE ENERGIZING LAMP AND THAT
GREAT CARE SHOULD BE TAKEN THAT
LAMP IS FULLY COOLED BEFORE
RELAMPING.
6. Replace lamp assembly as instructed on individual
fixture instruction sheet.
'"SS"MPG"AR
LOUVER
FIG. 6
*NOTE:
l%r fixtures 6420, 6421, it is
loosen two springs to insert louver.
RIB
necessay to
FIG. 1 FIG. 2
(FIXT. 6286,6287) (FIXT. 6298,6299)
GLASS LAMP GUARD
LOUVER
FIG. 3
LAMP
FIG. 4
(FIXT. 6296,6297)
FIG.
5
(FIXT. 6420,6421)
RIB
