Lightolier C4X4MR Instructions For Maintenance Reference

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To
assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.

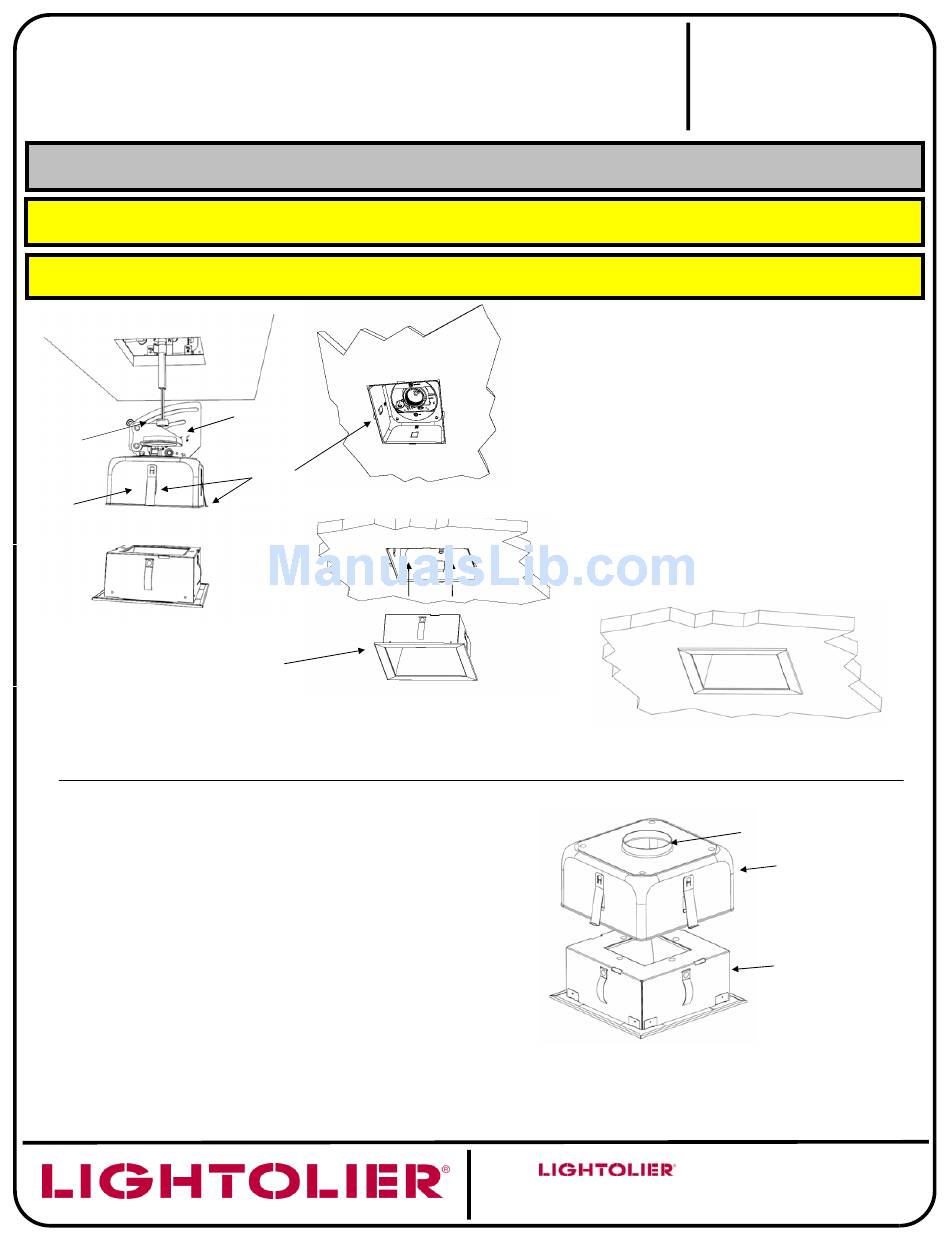

INSTALLATION INSTRUCTIONS FOR 4" MATRIX RECESSED MR-16
DOWNLIGHT, ADJUSTABLE ACCENT and LENSED WALLWASH TRIMS.
CAUTION: (RISK OF FIRE) DO NOT INSTALL INSULATION ABOVE NOR WITHIN 3 INCHES (76mm) OF ANY
CAUTION: USE ONLY ROUGH-IN SECTIONS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURERS' ROUGH-IN KITS
WILL VOID THE UNDERWRITERS LABRATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.
SOCKET
SUB-
ASSEMBLY

Downlight Trim:

This trim is provided with a downlight sub-assembly, lampholder assembly,
and a lower reflector unit.
1. Separate LOWER REFLECTOR from SUB-ASSEMBLY. Set LOWER
REFLECTOR aside.
2. Feed SOCKET through lamp opening as shown above. Install SUB-
ASSEMBLY into F.I.K. (in ceiling) by pushing through ceiling opening
until flush with ceiling.
3. ** To install MR16 Incandescent lamp, see LAMPING
INSTRUCTIONS FOR MR16 INCANDESCENT instructions on page 2.
** To install HID MR16 please refer to the lamping
instructions that ship with the lampholder in the HID frame.
4. Install LOWER REFLECTOR into SUB-ASSEMBLY until flange is flush
with ceiling.
PART OF THE LUMINAIRE (LIGHTING FIXTURE)
CEILING
CEILING
ADJUSTMENT
MECHANISM
SPRING
CLIPS
LOWER
REFLECTOR
INSTRUCTION SHEET NO.
B0707

Adjustable Accent Trim:

This trim is provided with a lampholder assembly, lamp
adjustment mechanism/sub-assembly and a lower reflector unit.
1. Separate LOWER REFLECTOR from SUB-ASSEMBLY. Set
LOWER REFLECTOR aside.
2. Feed SOCKET through lamp opening as shown. Install
SUB-ASSEMBLY into F.I.K. (in ceiling) by pushing through
ceiling opening until flush with ceiling.
3. ** To install MR16 Incandescent lamp, see LAMPING
INSTRUCTIONS FOR MR16 INCANDESCENT instructions
on page 2.
** To install HID MR16 please refer to the lamping
instructions that ship with the lampholder in the HID frame.
4. Lamp tilt angle is adjusted via screw marked "TILT".
5. To adjust rotational position of lamp, loosen screw marked
"ROTATION", and manually rotate lamp assembly until
desired position is reached. Tighten screw to lock.
6. Install LOWER REFLECTOR into SUB-ASSEMBLY until
flange is flush with ceiling.
FINISHED INSTALLATION
A GENLYTE COMPANY
631 Airport Road, Fall River, MA 02720
IS:C4X4MR
Page 1 of 2
LAMP
OPENING
SUB-
ASSEMBLY
LOWER
REFLECTOR
