Lightolier MJ6 Series Specification

MJ6E1RW12DEH

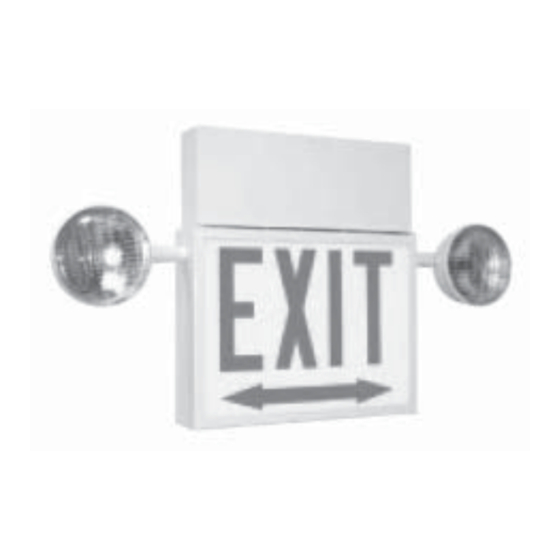

Combination Model
26.25"
(66.7 cm)
12.75"
(32.4 cm)
14.5"
9.5"
(36.8 cm)
(24.1 cm)
Standard Model
12.75"
(32.4 cm)
14.5"
(36.8 cm)
9.5"
(24.1 cm)
Features
Illumination: Exit face
illumination is provided
by a special high intensity
indirect white LED lighting
strips. Letter brightness and
illumination uniformity exceed
UL requirements. MJ6E-DEH
combination models with
side mounted lamp heads
are provided with 6 V, 12 W
halogen bi-pin lamps.
Housing: MJ6 Series exits
are constructed of heavy-duty
steel finished in white baked-
on powder paint providing
scratch and corrosion
resistance. Exit face features
6" letters with 3/4" stroke on
translucent glass panels and full
length directional arrows to
meet City of Chicago visibility
requirements. Mounting
canopy is standard.
MJ6 Series
C
HICAGO
Battery: Maintenance-free,
sealed, lead calcium battery
has an estimated service life
of 5 years, and an operating
temperature range of
65°F (19°C) to 85°F (30°C).
120 minutes of emergency
illumination.
Electronics: 120/277 VAC
dual voltage input with surge-
protected, solid-state circuitry.
Fully automatic, temperature
compensating, variable rate
float charging system is
complete with low voltage
disconnect, AC lockout,
brownout protection, AC
indicator lamp and test switch.
Input Power Requirements:
AC Only:
9.6 W (120 VAC)
9.2 W (277 VAC)
Emergency Operation:
10.6 W (120 VAC)
10.2 W (277 VAC)
Job Information Type:
Job Name:
Cat. No.:
Notes:
LED S E
TEEL
Page 1 of 2
Code Compliance
All models are UL listed and
meet NFPA 101 Life Safety
Code, NEC, OSHA and City
of Chicago codes. Emergency
models are UL 924 listed.
Warranty
Three year unit warranty
(excludes lamps). Three year
full plus seven year prorated
battery warranty.
XIT
