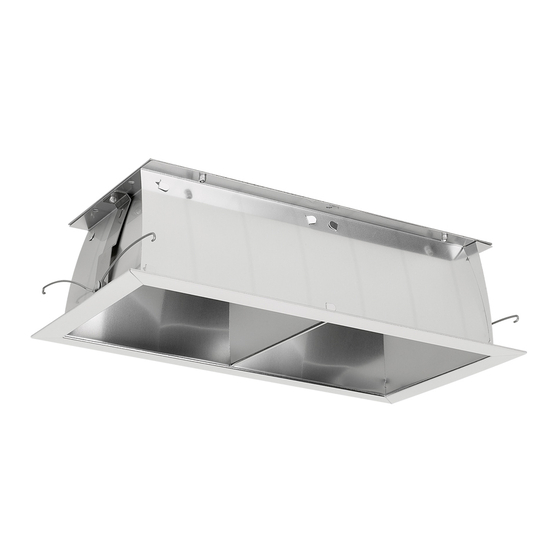

Lightolier Calculite Matrix 4X4 Specification

Page 1 of 2
5
5 1/2"
Ceiling Cutout: 5 1/8" L X 5 1/8" W
Trim Kits
Reflector
Finish / Flange
Trims
4X4CLW
Specular Clear / White
4X4CLP Specular Clear / Polished
4X4CCLW Comfort Clear / White
4X4CCLP
Comfort Clear / Polished
4X4CCDW Comfort Clear Diff. / White
4X4CCDP Comfort Clear Diff. / Polished
4X4CCGP Clear Corrugated / Self Flange
4X4WHW White / White
Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish. 55°
visual and reflected cutoff. Overlap flange accommodates different ceiling
types. Precision mitered flange corners.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 22 ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accommodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-box door is hinged for easy access.
7. Mounting Brackets: 16 ga. steel. Adjustable from inside fixture. Utilize 3/4"
or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
Options & Accessories
Chicago Plenum with Fuse (slow blow): Add LCF suffix to Frame-In Kit,
consult factory for specifications.
Mounting Bars / T-Bar Anchor Clips: See specification sheet "MBA".
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
10"
9 5/8"
5 7/8"
7 1/8"
7
4 1/2"
5 3/4"
Frame-In Kits
Frame-In Kits Type Ballast
4X4132HU Non-IC Electronic
4X4132HUEM4E Non-IC Electronic - Emergency
4X4132HCU3
Non-IC PowerSpec
4X4132HJUM7 Non-IC Mark 7
4X4132HJ1MX Non-IC Mark 10
4X4132HJ2MX
Non-IC Mark 10
Calculite Matrix
®
4 1/2" X 4 1/2" Square Aperture (1) 26/32W Triple Tube
5"
Top View
4 2 1 3
4 1/2"
5 3/4"
Input Triple Tube
Voltage Wattage
120/277V 26/32W
120/277V 26/32W
® HDF Dimming 120/277V 26/32W
Dimming 120/277V 26/32W
®
Dimming 120V 26/32W
®
Dimming 277V 26/32W
®
Electrical
UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply
conductors.
Note: For complete ballast data and lamp/ballast compatibility refer to
"Ballast" specification sheet.
General
UL listed for damp locations, I.B.E.W. Union Made.
Specular Clear finish (CL) reflector trims meet IES RP-1 practice.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Open Downlight
®
6
1 1/4" Max.
Ceiling Thickness
Length Width Height
10" 9 1/2" 5 3/4"
10" 11" 5 3/4"
10" 9" 5 3/4"
10" 9 1/4" 5 3/4"
10" 9 1/4" 5 3/4"
10" 9 1/4" 5 3/4"
Type:
4X4
