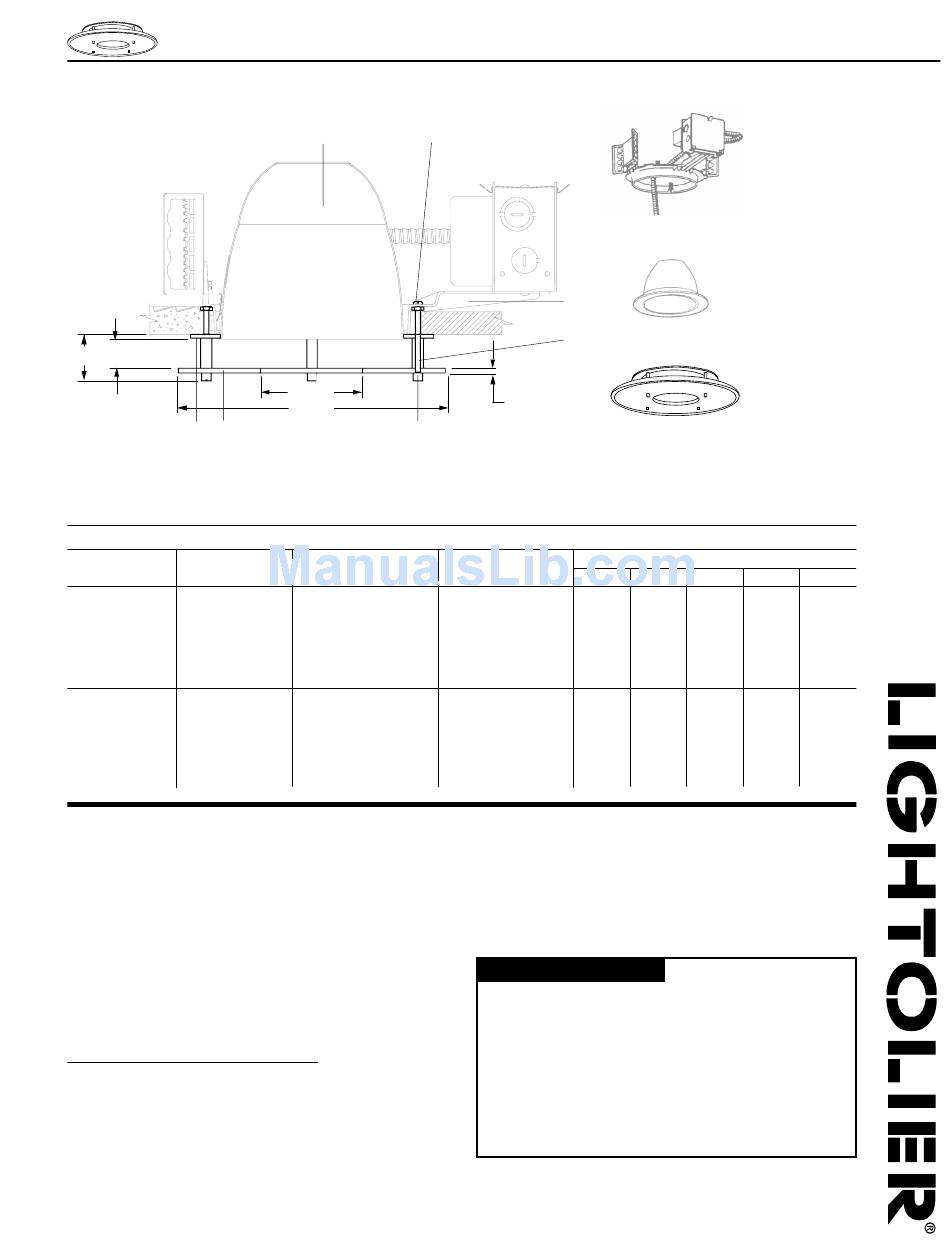

Lightolier Calculite DP Specification

Page 1 of 1
E
C
4 1
Complete Fixture consists of decorative element, standard Frame-In Kit and Trimless Reflector. Select each separately.
Ordering Information
Decorative Element
Catalog No. Finish/Color
DP6 WH White with white
inner and outer
rubber edging.
DP6 SA Satin aluminum
with black inner and
outer rubber edging.
DP7 WH White with white
inner and outer
rubber edging.
DP7 SA Satin aluminum
with black inner and
outer rubber edging.
Features
1. Decor Ring: Perforated aluminum disc 1/16" thick.
2. Spacer: Aluminum with matte white finish for use with white disc, brushed
aluminum for use with the satin aluminum disc.
3. Decorative Knob: Four placed 90° apart, matte white finish for use with
matte white disc, brushed aluminum finish for use with satin aluminum disc.
4. Trim Ring: .090" thick aluminum ring with matte white finish.
5. Reflector: See reflector trim for Specification Sheet.
6. Frame-In Kit: See Frame-In Kit for Specification Sheet.
7. Mounting Frame Stud: Four #8-32 screws.
Lighting Data
See applicable downlight Specification Sheet for base lighting data. Multiply the
candlepower values or the coefficient of utilization by the following factors:
A Lamp downlights
Compact Fluorescent lamp downlights
PAR Lamp downlights
Mechanical
Decorative elements securely fastened to four mounting frame studs.
Calculite
5 7
B
A
3
Trimless Reflector Frame-In Kit
For use with all Calculite For use with all Calculite
6" Compact Fluorescent 6" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. ® except ProSpec.
For use with all Calculite For use with all Calculite
7" Compact Fluorescent 7" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. ® except ProSpec.
6" 7"
.70 .70
.65 .75
.85 .85
® Decorative Architectural Designs
6" & 7" Aperture Decorative Perforated Metal Disc
Frame-In Kit
6
Trimless Reflector
2
D
Perforated Metal Disc
A
10 5/8" 4 1/8"
®
12" 5 1/2"
®
Finishes/Color
Powder coated white disc, spacer and knob with white inner and outer rubber
edging.
Satin aluminum disc, spacer and knob with black inner and outer rubber edging.
Labels
U.L. (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Dimensions
B C D E
1 7/8" 3/16" 1 1/16"
1 7/8" 3/16" 1 1/16"
Type:
www.lightolier.com
DP
