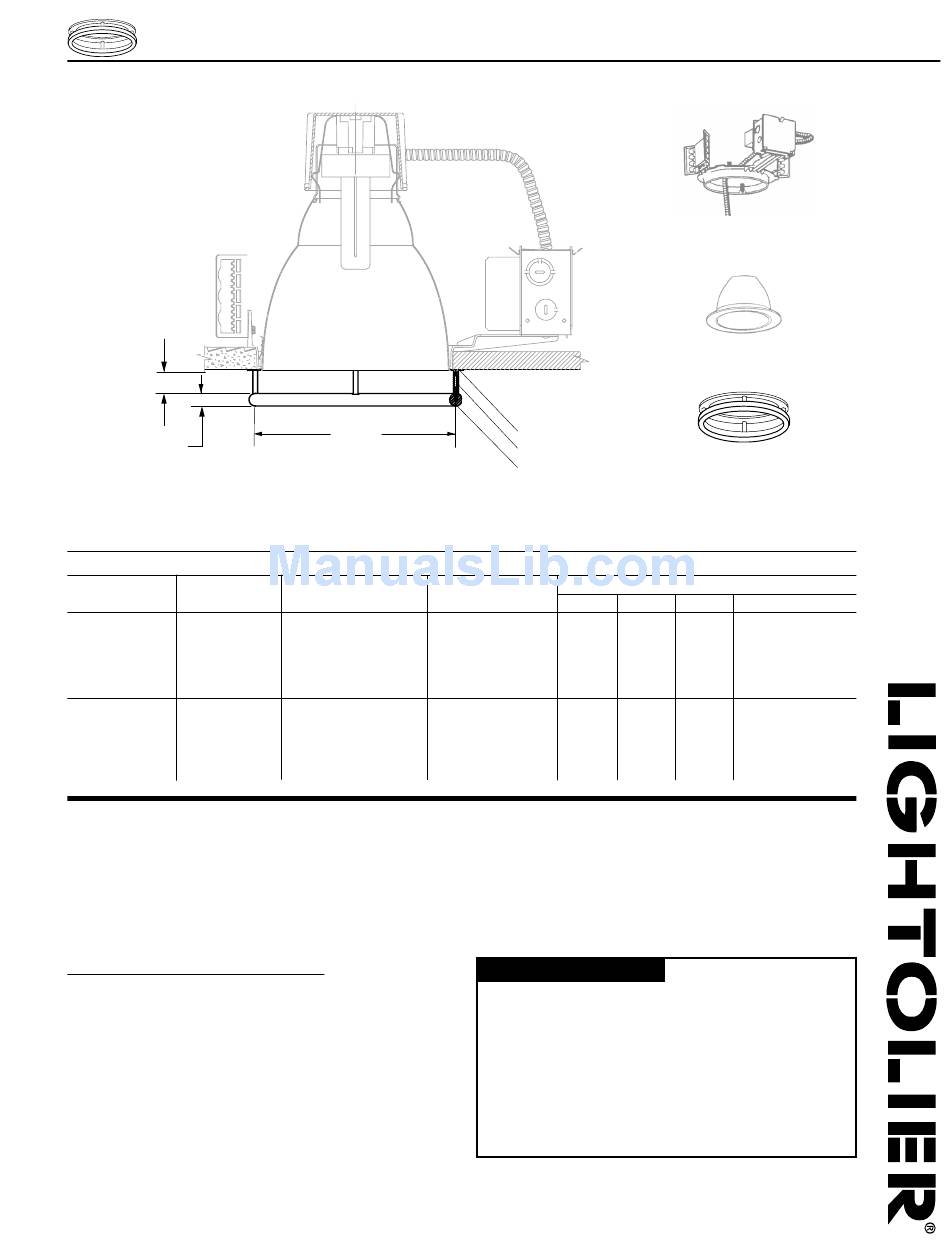

Lightolier Calculite DR Specification

Page 1 of 1
B
C
Complete Fixture consists of decorative element, standard Frame-In Kit and Trimless Reflector. Select each separately.
Ordering Information
Decorative Element
Catalog No. Finish/Color
DR6 BA Brushed Aluminum
DR6 PB Polished Brass
DR7 BA Brushed Aluminum
DR7 PB Polished Brass
Features
1. Decor Ring: 1/2" dia. solid aluminum metal ring with brushed or polished
finish.
2. Spacers: four 3/16" dia. aluminum spacers with matching finish.
3. Trim Ring: 0.90" thick aluminum ring with Matte White finish.
Lighting Data
See applicable downlight Specification Sheet for base lighting data. Multiply the
candlepower values or the coefficient of utilization by the following factors:
A Lamp downlights
Compact Fluorescent lamp downlights
PAR Lamp downlights
Mechanical
Decorative elements securely fastened to 4 mounting screws.
Calculite
A
Trimless Reflector Frame-In Kit
For use with all Calculite For use with all Calculite
6" Compact Fluorescent 6" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. ® except ProSpec.
For use with all Calculite For use with all Calculite
7" Compact Fluorescent 7" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. ® except ProSpec.
6" 7"
.70 .70
.65 .75
.85 .85
® Decorative Architectural Designs
6" & 7" Aperture Decorative Single Ring
3
2
1
Dimensions
A B
7 1/6" 1 1/2"
®
8 7/16" 1 1/2"
®
Finishes/Color
Brushed Aluminum
Polished Brass
Labels
U.L. (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Frame-In Kit
Trimless Reflector
Single Ring
C
1/2"
1/2"
Type:
www.lightolier.com
DR
