Lightolier Calculite DC Specification

Page 1 of 1
D
E
Complete Fixture consists of decorative element, standard Frame-In Kit and trimless reflector. Select each separately.
Ordering Information
Decorative Element
Catalog No. Finish/Color
DC6 W
White Acrylic
DC6 G
Soda Lime Green Acrylic
DC6 B
Cobalt Blue Acrylic
DC7 W
White Acrylic
DC7 G Soda Lime Green Acrylic
DC7 B
Cobalt Blue Acrylic
Features
1. Decorative Crown: 1/8" thick thermo formed acrylic with a light sandblasted
finish.
2. Decorative Ball: Four 3/4" dia. aluminum balls with satin brushed and clear
lacquer finish.
3. Rods: Four 1/8" dia. stainless steel rods.
4. Trim Ring: .090" thick aluminum ring with matte white finish.
Lighting Data
See applicable downlight Specification Sheet for base lighting data. Multiply the
candlepower values or the coefficient of utilization by the following factors:
6" A Lamp downlights
6" Compact Fluorescent lamp downlights
6" PAR Lamp downlights
Mechanical
Decorative elements securely fastened to trim ring with 4 brushed aluminum
balls and stainless steel rods.
Calculite
A
B
C
Trimless Reflector
For use with all Calculite For use with all Calculite
6" Compact Fluorescent 6" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. except ProSpec.
For use with all Calculite For use with all Calculite
7" Compact Fluorescent 7" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. except ProSpec.
.70
.65
.85
® Decorative Architectural Designs
6" & 7" Aperture Decorative Suspended Crown
4
3
2
1
Frame-In Kit
A B
4 11/16" 7 1/6"
6 1/16" 8 7/16"
Finishes/Color
White Acrylic
Soda Lime Green Acrylic
Cobalt Blue Acrylic
Labels
U.L. (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Frame-In Kit
Trimless Reflector
Suspended
Acrylic Crown

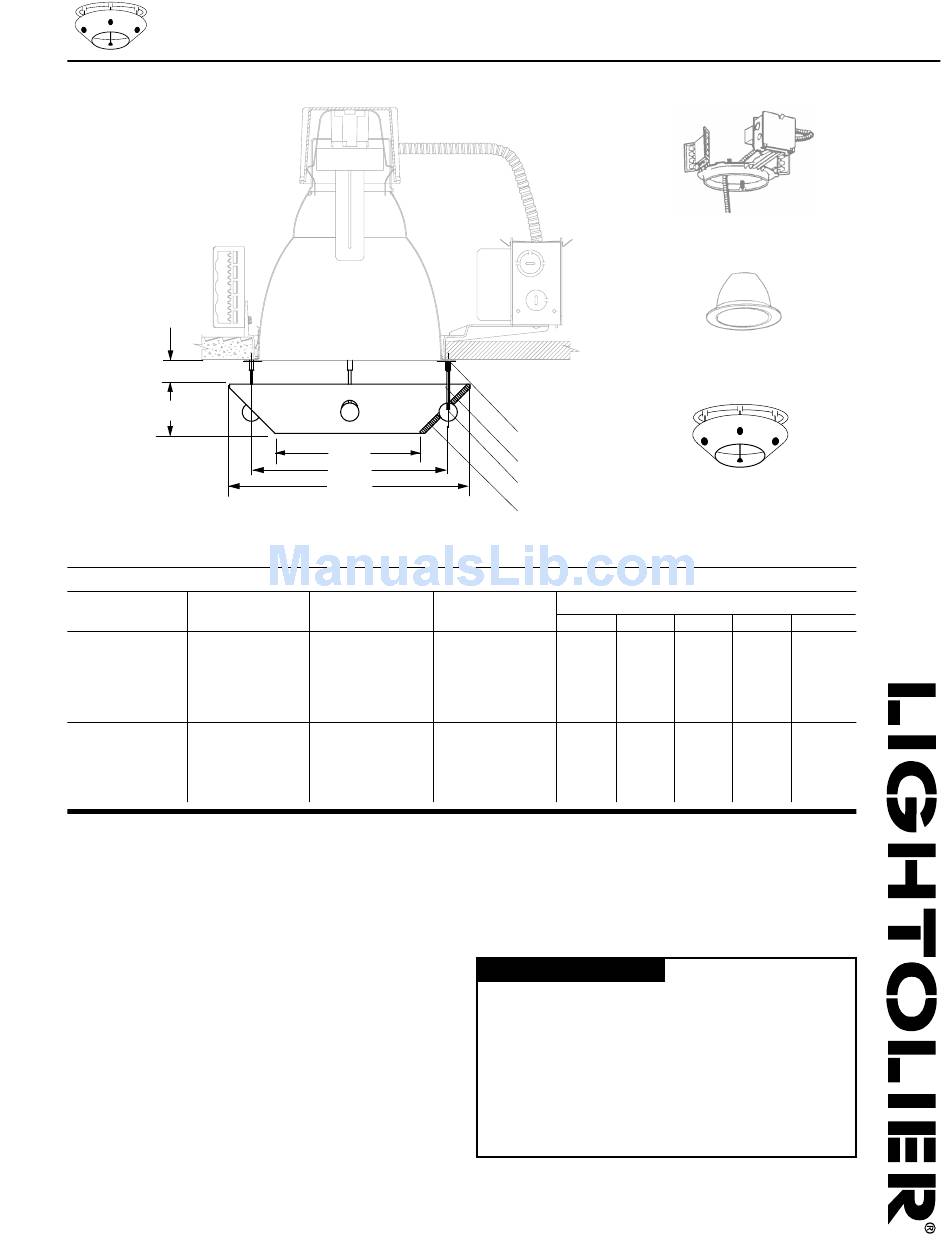

Dimensions
C D E
8 27/32" 1 1/2" 2"
10 1/4" 1 1/2" 2"
Type:
www.lightolier.com
DC
