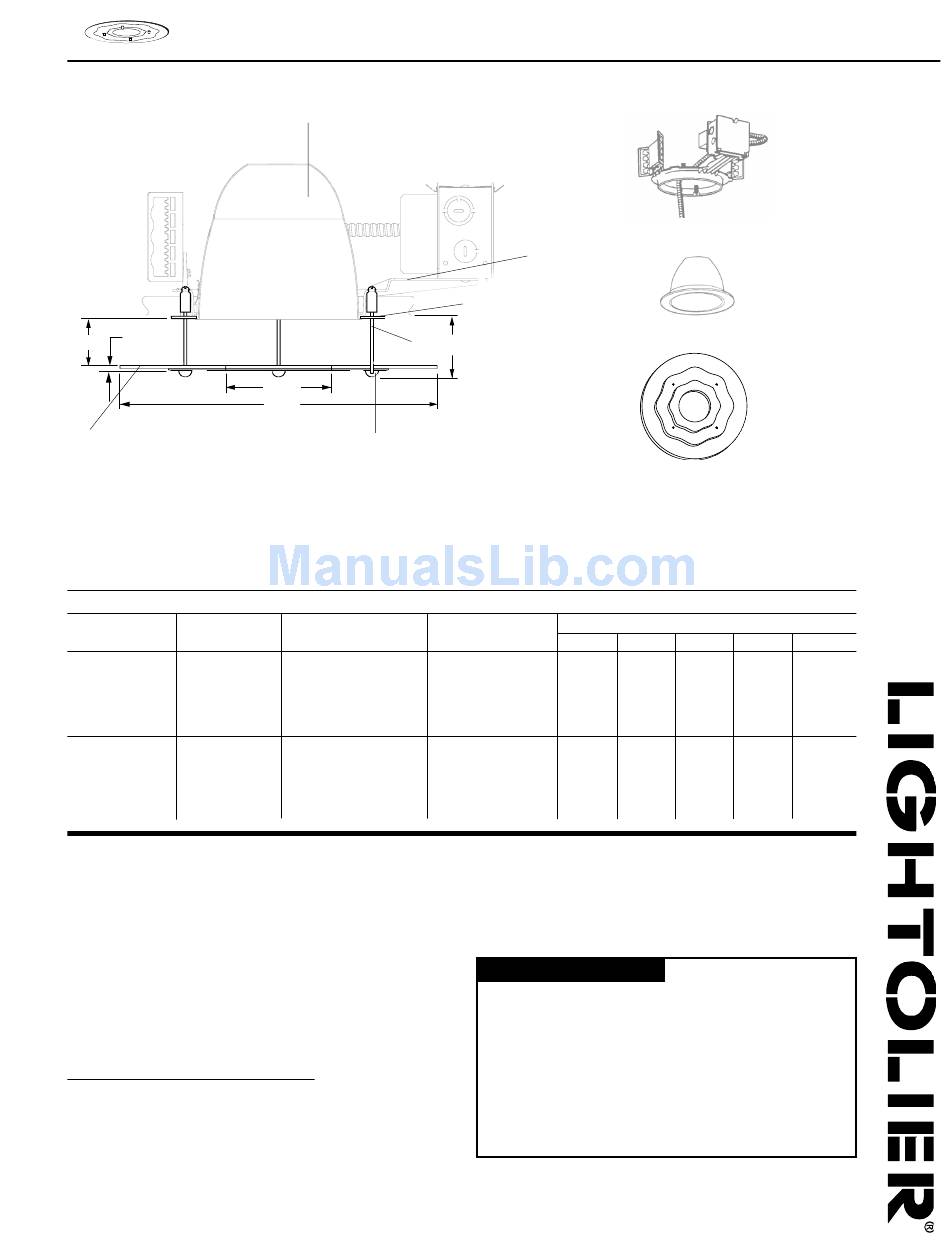

Lightolier Calculite GW Specification

Page 1 of 1
D
E
1
Complete Fixture consists of decorative element, standard Frame-In Kit and Trimless Reflector. Select each separately.
Ordering Information
Decorative Element
Catalog No. Finish/Color
GW6 Clear Outer Ring
White Inner Rings
GW7 Clear Outer Ring
White Inner Rings
Features
1. Decor Disc: Three layers of hand fused art glass. A clear sandblasted base
fused with a white inner ring which is curved in appearance.
2. Mounting Rod: 4 stainless steel rods 1/8" diameter.
3. Decorative Fasteners: Four placed 90° apart, with matte white painted
finish.
4. Trim Ring: .090" thick aluminum ring with matte white finish.
5. Reflector: See reflector trim for Specification Sheet.
6. Frame-In Kit: See Frame-In Kit for Specification Sheet.
Lighting Data
See applicable downlight Specification Sheet for base lighting data. Multiply the
candlepower values or the coefficient of utilization by the following factors:
A Lamp downlights
Compact Fluorescent lamp downlights .65
PAR Lamp downlights
Mechanical
Decorative Elements securely fastened to 4 mounting frame rods with 4 half
round decorative spheres (3/8" dia.) and 4 (1/8" dia.) stainless steel rods for
maximum security.
Calculite
5
2
B
A
3
Trimless Reflector Frame-In Kit
For use with all Calculite For use with all Calculite
6" Compact Fluorescent 6" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. ® except ProSpec.
For use with all Calculite For use with all Calculite
7" Compact Fluorescent 7" Compact Fluorescent
and Incandescent open and Incandescent open
trimless downlight downlight Frame-In Kits
reflectors except ProSpec. ® except ProSpec.
6" 7"
.70 .70
.75
.85 .85
® Decorative Claritas Art Glass
6" & 7" Aperture Decorative Glass Circle with Wave Form
6
4
C
A
12"
®
13 1/2"
®
Labels
U.L. (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
Frame-In Kit
Trimless Reflector
Circle with Wave Form
Dimensions
B C D E
4" 2 1/4" 1/4" 1 3/4"
5" 2 1/4" 1/4" 1 3/4"
Type:
www.lightolier.com
GW
