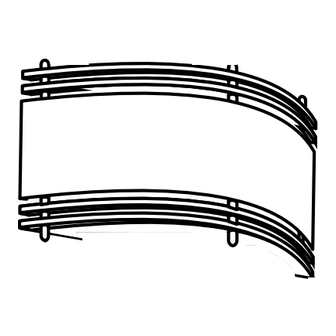

Lightolier Decorative Visor 1 40618U Specification

Page 1 of 2
7 7/8" High
Cat. No. Finish Lamps
40618WHU White (2) 13W Quad Tube 4-Pin
40618SBU Satin Brass (2) 13W Quad Tube 4-Pin
40618SCU Satin Chrome (2) 13W Quad Tube 4-Pin
Features
1. Diffuser Assembly: Front arch and spill rings, die-formed 20 ga. steel, see
chart for finishes. Removable by loosening two screws and unhooking from
backplate. All painted surfaces baked enamel.
2. Diffuser: (2) injection molded white translucent acrylic.
3. Holder Knobs: Turned brass, see chart for finishes.
Fixture conforms to (ADA) Federal Regulations.
Lamping
Compact Fluorescent: 13W Quad Tube 4-Pin
General Electric Osram/Sylvania
F13 DBX/SPX*/4P CF13DD/E/*
* Manufacturers' color temperature designation.
Mounting
Directly to most outlet boxes with crossbar provided.
Electrical
Lampholders: Compact Fluorescent: 4-pin, G24q-1 base
Ballasts: Electronic120/277V
Total input Watts 30
Max.line Current (Amps) 0.25 / 0.11
Power Factor >.97
Ballast Factor >.98
THD <10%
Min. Starting Temp. -18°C (0°F)
Decorative Visor 1
14 1/4" Wide
Top View
2
Front View
Width Height
14 1/4" 7 7/8"
14 1/4" 7 7/8"
14 1/4" 7 7/8"
Labels
UL listed suitable for damp locations, I.B.E.W.
Philips
PL-C13W/*/4P
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
® Direct/Indirect Light
3
4" Extension
1
Side View
Extension Ballast Type
4" 1-2 Lt. Electronic
4" 1-2 Lt. Electronic
4" 1-2 Lt. Electronic
Type:
a Genlyte Thomas Company
40618U
Wall Mounted Fluorescent
Voltage
120V/277V
120V/277V
120V/277V
www.lightolier.com
