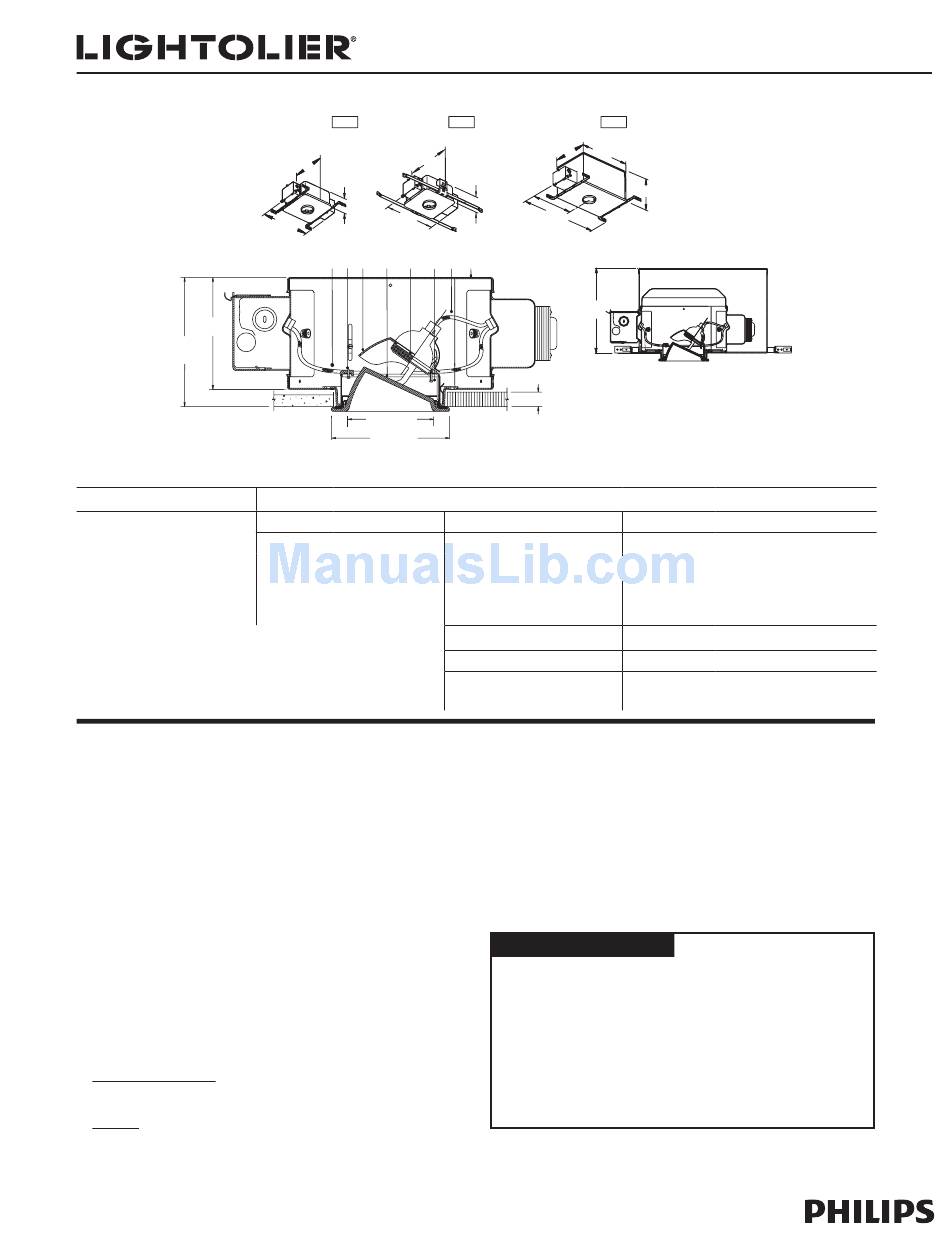

Lightolier Evolution Glasslite C4MRGA Specifications

Page 1 of 2
6" min.*
6 1/2" max.
* 6" min. is for up to 3/4" thick ceiling.
Ceiling Cutout: 5 1/16" (129 mm) Dia.
Reflector Trim
C4MRGA
Etched White
Interior and
Flange
Note: Magnetic transformers may produce audible sound when used with
dimmers, which may be objectionable in acoustically critical areas.
Features
1. Glasslite: One piece borosilicate glass with integral flange, etched interior and
white ceramic coated exterior. Etched white cone finish emits a subtle glow.
Hinged, and snaps onto lampholder assembly for easy tool-less installation.
Interchangeable with other Evolution 4 1/2" low voltage trims. Suitable for
spas, hot tubs, and other wet environments.
2. Lampholder Assembly: Die-cast aluminum. Built-in aperture shield blocks
view into fixture. 45° vertical tilt (35° max. with remodel frame-in kit), 360°
horizontal rotation; are lockable to hold position. Hot aiming is possible with
a phillips screwdriver. Matte black finish. Lamp shield keeps interior of fixture
dark.
3. Lamp Support: Die-formed aluminum with knurled surface for easy gripping
during relamping. Spring tension clips hold lamp and lens and allow fast snap-
in, snap-out relamping. Matte black finish.
4. Vertical /Horizontal Locking: Single screw adjustment; independent locking
system.
5. Socket Harness: Porcelain bi-pin socket. Pre-wired with No.
18 Teflon leads.
®
6. Power Harness: Provides power to transformer,
7. Frame-In Kit: Compatible frame-in kits are listed above. See separate frame-in
kit specification sheets for details.
Non-IC and Non-IC AirSeal
sides and wiring compartments, and must not be placed above fixture in a man-
ner which will entrap heat.
IC-AirSeal - Fixture may be in direct contact with insulation.
®
8. Maximum Ceiling Thickness: .875", 1.75" with C4TCA2 accessory
(see C4TCA2 specification sheet for details)
Lightolier is a Philips group brand
C4ALV
9 5/8"
(245mm)
5" (127mm)
14 3/8"
(365mm)
6 4 2
5 1/4"
3 7/8" Dia.
5 1/2" Dia.
Frame-In Kit
Non-IC 120V/277V
C4LVMU
Magnetic 120/277V
C4LVE1 Electronic 120V
C4LVE2 Electronic 277V
42-75W
MR16(12V)
- Insulation must be kept 3" away from fixture
®
Calculite
®
C4LV
C4AICLV
10 1/8"
(257mm)
12 5/8"
(321mm)
11 3/16"
5" (127mm)
(284mm)
22 3/8"
14 3/8"
(568mm)
(365mm)
1 3 4 5 7
.875" Max. Ceiling Thk.
C4MRGA / C4LV or
C4MRGA / C4ALV
Non-IC AirSeal 120V/277V
®
C4ALVMU Magnetic 120/277V
C4ALVE1 Electronic 120V
42-75W
MR16(12V)
Remodel Frame-In Kit
Non-IC 120V
C4LVE1RM 50W Max. MR16 (12V)

Options and Accessories

Evolution 4" Trims with Non-IC Frames
C4MRGA 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter
Labels
CULUS Listed (suitable for wet locations), I.B.E.W.
Teflon is a registered trademark of E.I. DuPont.
®
US Patent No. 5,957,573. Other US and Foreign Patents Pending.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0708
Evolution Glasslite
4 1/2" Aperture MR16 Glasslite Adjustable
14 5/8"
(372mm)
9" (229mm)
9 1/4"
C4MRGA / C4AICLV
IC AirSeal 120V
®
C4AICLVM1
Magnetic 120V
C4AICLVE1 Electronic 120V
20-50W
MR16(12V)
See separate specification sheet for more
information
Type:
C4MRGA
