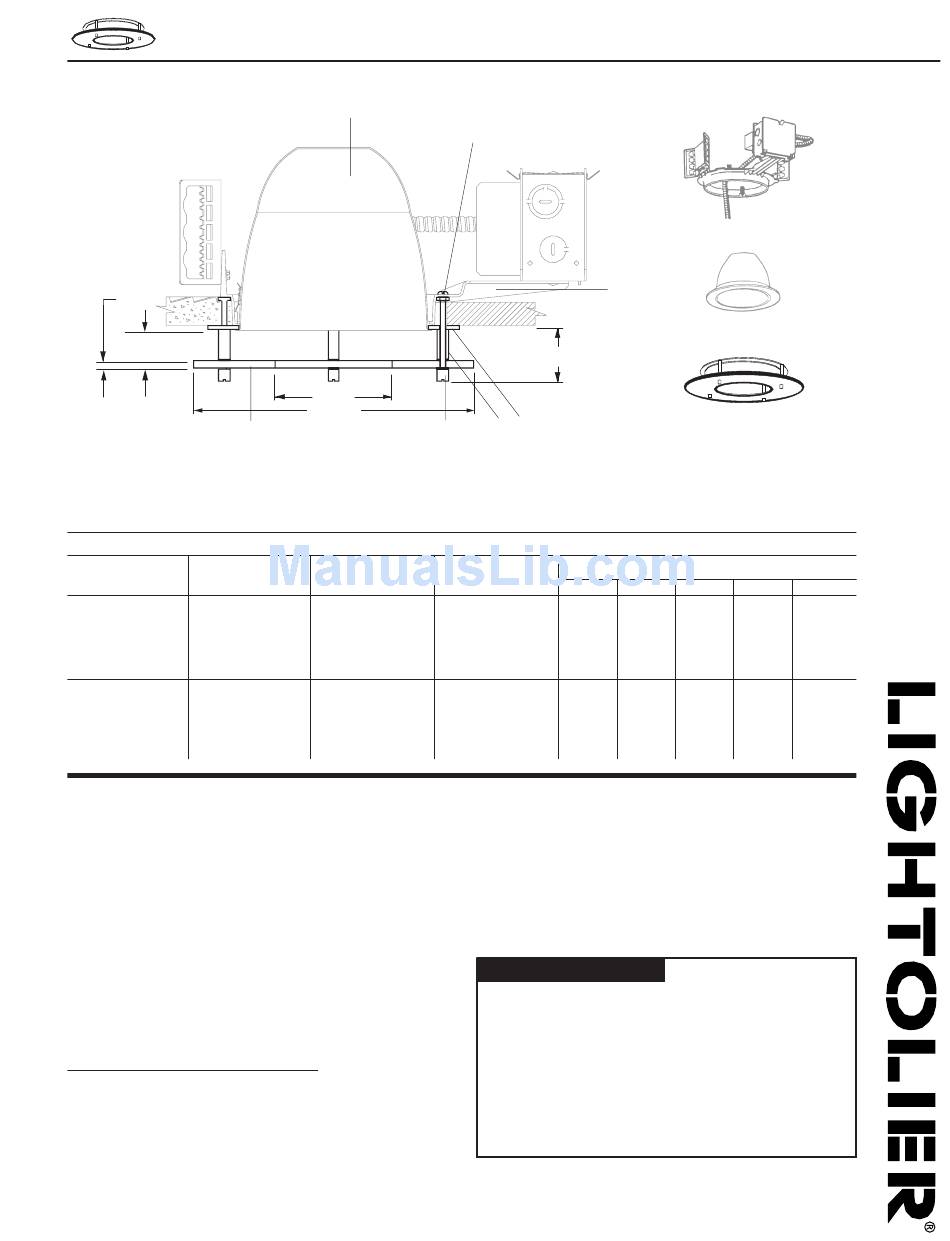

Lightolier Calculite DD Specification

Page 1 of 1
D
E
Complete Fixture consists of Decorative Element, standard Frame-In Kit and Trimless Reflector. Select each separately.
Ordering Information
Decorative Element
Catalog No. Finish/Color
DD6
Soda lime green glass
with sandblasted band
and open center
aperture.
DD7
Soda lime green glass
with sandblast band and
an open center aperture.
Features
1. Decor Disc: Tempered soda lime glass 3/8" thick, sandblasted ring around
center aperture 3 5/8" wide for the 6" and 4 1/2" wide for the 7" . Clear edge
3/8" wide band.
2. Spacer: Matte white painted aluminum.
3. Decorative Knob: 3/8" dia. aluminum. Four placed 90° apart, matte white
finish.
4. Trim Ring: .090" thick aluminum ring with matte white finish.
5. Reflector: See Reflector Trim for Specification Sheet.
6. Frame-In Kit: See Frame-In Kit for Specification Sheet.
7. Mounting Frame Stud: Four #8-32 screws.
Lighting Data
See applicable downlight Specification Sheet for base lighting data. Multiply the
candlepower values or the coefficient of utilization by
the following factors:
A Lamp downlights
Compact Fluorescent lamp downlights
PAR Lamp downlights
with C700 Frame - use 250W lamp maximum.
Calculite
5
B
A
1
Trimless Reflector
For use with all Calculite
6" Compact Fluorescent
and Incandescent open
trimless downlight
reflectors except ProSpec.
For use with all Calculite
7" Compact Fluorescent
and Incandescent open
trimless downlight
reflectors except ProSpec.
6" 7"
.70 .70
.65 .75
.85 .85
Decorative Architectural Designs
®
6" & 7" Aperture Decorative Glass Disc with Center Aperture
7
6
C
2
3 4
Frame-In Kit
A
For use with all Calculite
12"
6" Compact Fluorescent
and Incandescent open
downlight Frame-In Kits
except ProSpec.
For use with all Calculite
14"
7" Compact Fluorescent
and Incandescent open
downlight Frame-In Kits
except ProSpec.
Mechanical
Decorative elements securely fastened to four mounting frame studs and
4 (3/8" dia.) aluminum knobs.
Labels
U.L. (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division) • B1003
Frame-In Kit
Trimless Reflector
Glass Disc with Open
Center Aperture
Dimensions
B C D E
4" 1 7/8" 3/8" 1 1/16"
5" 1 7/8" 3/8" 1 1/16"
Type:
www.lightolier.com
DD
