Page 1 of 2
Catalog No. Finishes
8420WH
Matte White
8420BK
Matte Black
8420AL
Aluminum

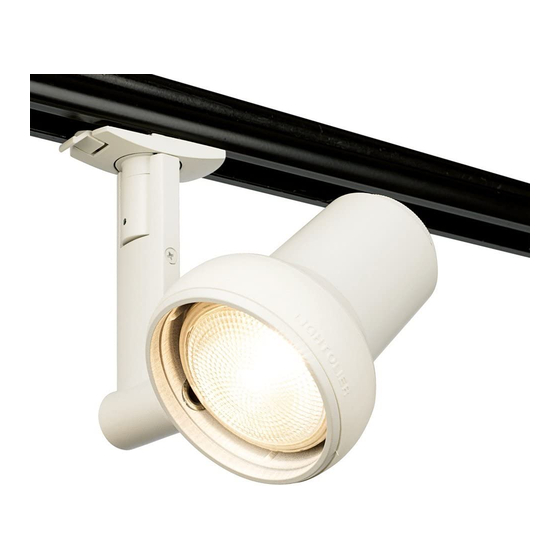

General Description
Die-cast spot fully encloses par lamp. Lightoliers unique "Cool-Grip"
system incorporates a bold silicone rubber band which surrounds the lighting
element and allows you to aim the fixture even when hot. Solidly engineered
with vents for heat dissipation to ensure cool operation - front relamping for
easy maintenance.
Finish
All painted finishes baked enamel.
Electrical
Porcelain socket, medium base, nickel plated screw shell. No. 18 braided
SF-1 leads with silicone sleeving.
Labels
UL; I.B.E.W.; cUL
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • B0711
Mounting
Lamp
All Lytespan Track
PAR20 50W Max.
Systems
aiming
TM
Lytespan
Track Lighting
®
Accessories
Holder - 8472
Louver (Hex Cell) - AL25HC
Beam Smoother - AF25LF
Beam Elongator - AF25AS
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
8420
Sof-Tech
Spot PAR20
®
Type:
