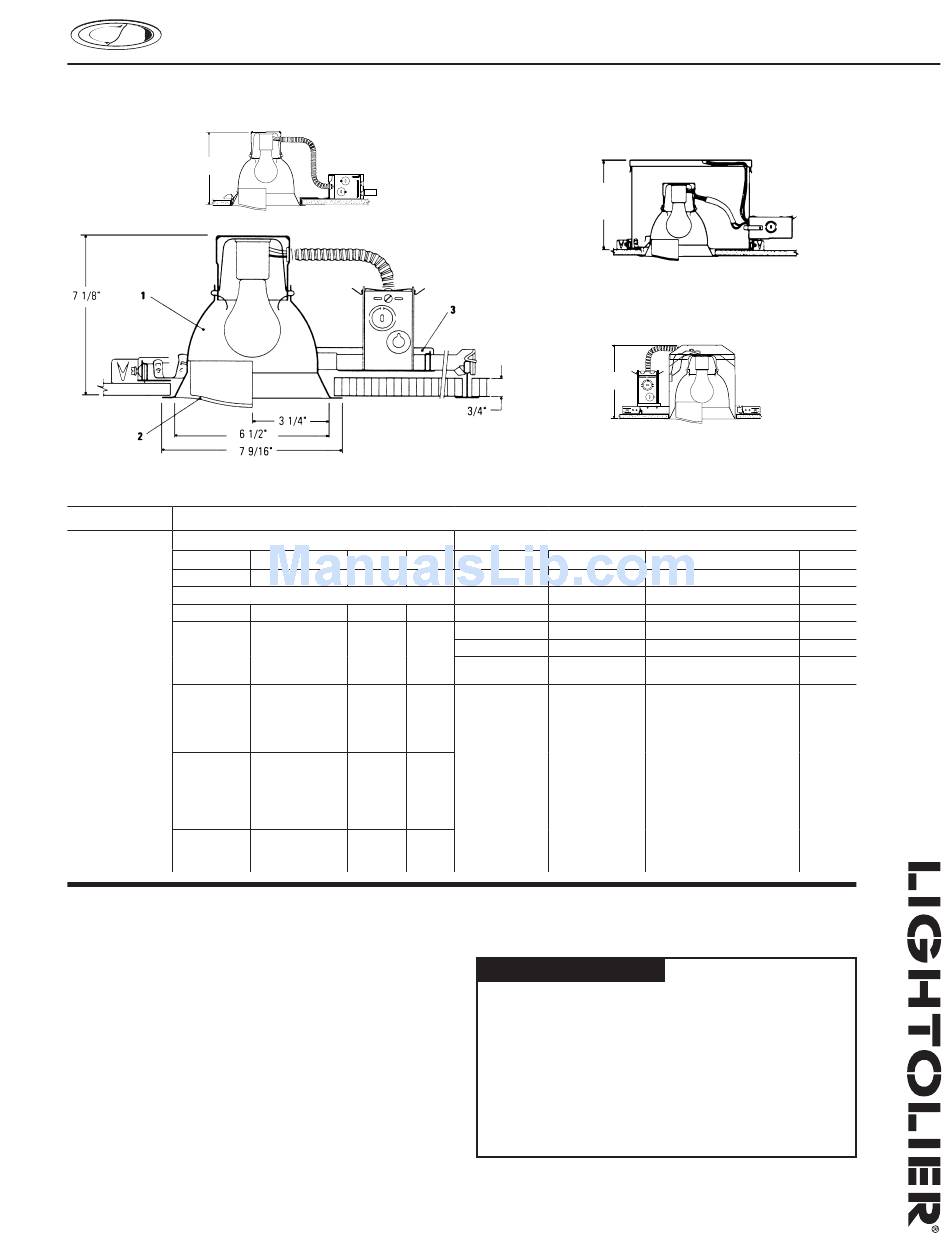

Lightolier Lytecaster 1185 Specification

Page 1 of 2
7 1/8"
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit
1185
L56LED
Perma White
Frame-In Kit
1102P1
1103R
1100IC
1100AICM
1104ICX/N
1100DICM
1100DAICM
1104IC/N
1104ICR
1104IC/N
1104ICR
Features
1. Deep Reflector: Hydroformed aluminum, .040" thick (18 ga.); Perma White
finish with 88% reflectance; white trim flange. Provides smooth wash of light
over wall surface without scallops or shadows.
2. Aperture Plate: Molded high-heat polymer, white finish.
3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Options & Accessories
Spread Lens: L56WWLENS - Proprietary spread lens for use with
combination of wall washer optics and LED Frame-In Kits.
Lytecaster
1185/1103R
0
1185/1102P1 Series
Standard Incandescent
LED
Installation Type Lamping Height
Non-IC Retrofit LED 7 1/8"
Incandescent
Installation Type Lamping Height
Non-IC 100W A19 7 1/8"
Non-IC Remodeler 7 1/8"
IC 52W A19 7 5/16"
AirSeal IC 7 5/16"
®
AirSeal IC 7 1/4"
®
Deep IC 40W A19 9 1/4"
Deep AirSeal IC 9 1/4"
®
AirSeal IC 7 1/2"
®
IC Remodeler 7 1/2"
Non-IC 60W A19 7 1/2"
Non-IC Remodeler 7 1/2"
Recessed Downlighting
®
6 3/4" Aperture Basic White Wall Washer Reflector Trim
Non-IC Remodeler Ring
™
9 1/4"
1185/1100 DEEP IC Series
Incandescent Insulated Ceiling
7 1/2"
Frame-In Kit Installation Type
1104F13 Series IC
1104F18 Series IC
1104F26 Series IC
1100FTU Series Non-IC
1100AICMFT AirSeal IC
®
1910XFH1
Conversion Kit
1910XDH1 Conversion Kit
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • K1111
1185/1104IC/N
0
Convertible
™
IC/Non-IC
Fluorescent
Lamping Height
(1) Quad/Triple 13W (GX24q-1) 7 1/2"
(1) Quad/Triple 18W (GX24q-2) 7 1/2"
(1) Triple 26W (GX24q-3) 7 1/2"
(1) Triple 26/32W (GX24q-3) 6 7/8"
(1) Triple 26/32W (GX24q-3) 6 7/8"
(1) Quad 13W (GX23-2) 6 7/8"
(2) Quad 13W (GX23-2) 6 7/8"
Type:
www.lightolier.com
1185
