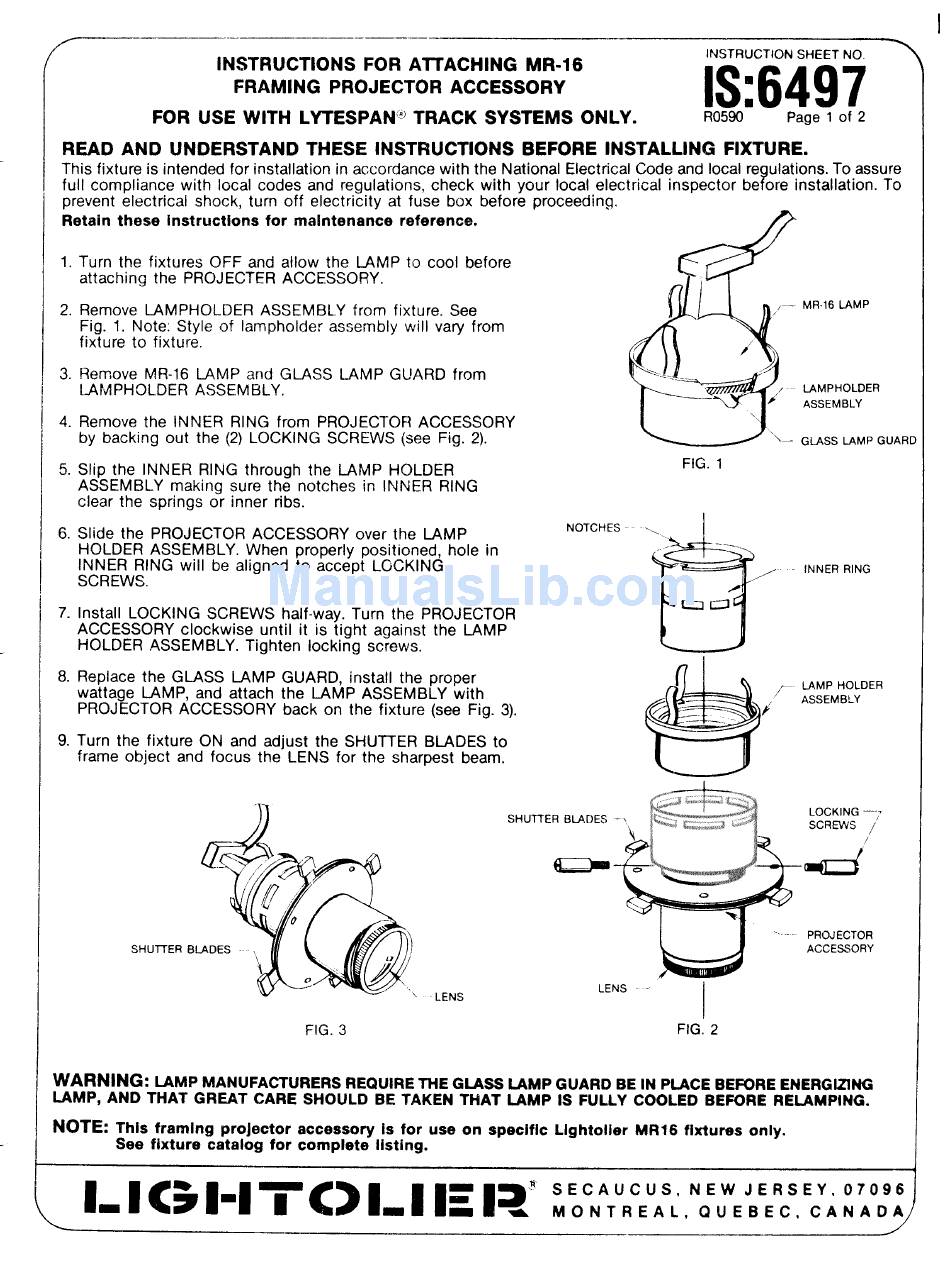

INSTRUCTIONS FOR AllACHING MR-16
INSTRUCTION SHEET NO "
FRAMING PROJECTOR ACCESSORY
IS:6497
FOR
USE WITH LYTESPAN') TRACK SYSTEMS ONLY.
R0590 Page 1 of 2
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture is intended for installation in accordance with the National Electrical Code and local re ulations. To assure
?
full compliance with local codes and regulations, check with your local electrical inspector be ore installation. To
prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
1
2,
3.
4.
5.
6.
7.
8.
9.
Turn the fixtures OFF and allow the LAMP to cool before
attaching the PROJECTER ACCESSORY.
Remove LAM PHOLDER ASSEMBL.Y from fixture. See
Fig. 1. Note. Style of Iampholder ~sseinbly will vary from
fixture to fixture.
Flernove MR-16 lAMP and GLASS LAMP GL!ARD from
lAMPHOLDER ASSEMBLY.
Remove the INNER RING from PROJECTOR ACCESSORY
by backing out the (2) LOCKING SCREWS (see Fig. 2).
Slip the INNER RING through the LAMP HOLDER
ASSEMBLY making sure the notches in INNER RING
clear the springs or inner ribs.
Slide the PROJECTOR ACCESSORY over the LAMP
HOLDER ASSEMBLY. When properly positioned, hole in
INNER RING will be aligned to accept LOCKING
SCREWS.
Install LOCKING SCREWS half-way. Turn the PROJECTOR
ACCESSORY clockwise until it is tight against the LAMP
HOLDER .4SSEMBLY. Tighten locking screws.
Replace the GLASS LAMP GUARD, install the proper
wattage LAMP, and attach the LAMP ASSEMBLY with
PROJECTOR ACCESSORY back on the fixture (see Fig. 3),
Turn the fixture ON and adjust the SHUTTER BLADES to
frame object and focus the LENS for the sharpest beam.
SHUTTER
LENS
FIG. 1
NOTCHES .,,
A
..
----
u
Da
/, /""
&
/-' ___---
MR.16 LAMP
LAMPHOLDER
ASSEMBLY
GIASS LAMP GUAR
INNER RING
LAMP HOLDER
ASSEMBLY
~ *. –
w
."--,,, -.,-.
'iv
LENS
I
"- -- PROJECTOR
ACCESSORY
FIG. 3
FIG. 2
WARNING: LAMP
MANUFA~URERS REQUIRE THE GIASS LAMP GUARD BE IN PLACE BEFORE ENERGIZING
LAMP, AND THAT GREAT CARE SHOULD BE TAKEN THAT LAMP IS FULLY COOLED BEFORE REIAMPING.
NOTE:
This framing
projector accessory is for use on specific Llghtolier ~R16
fixtures only.
See fixture catalog for complete listing.
