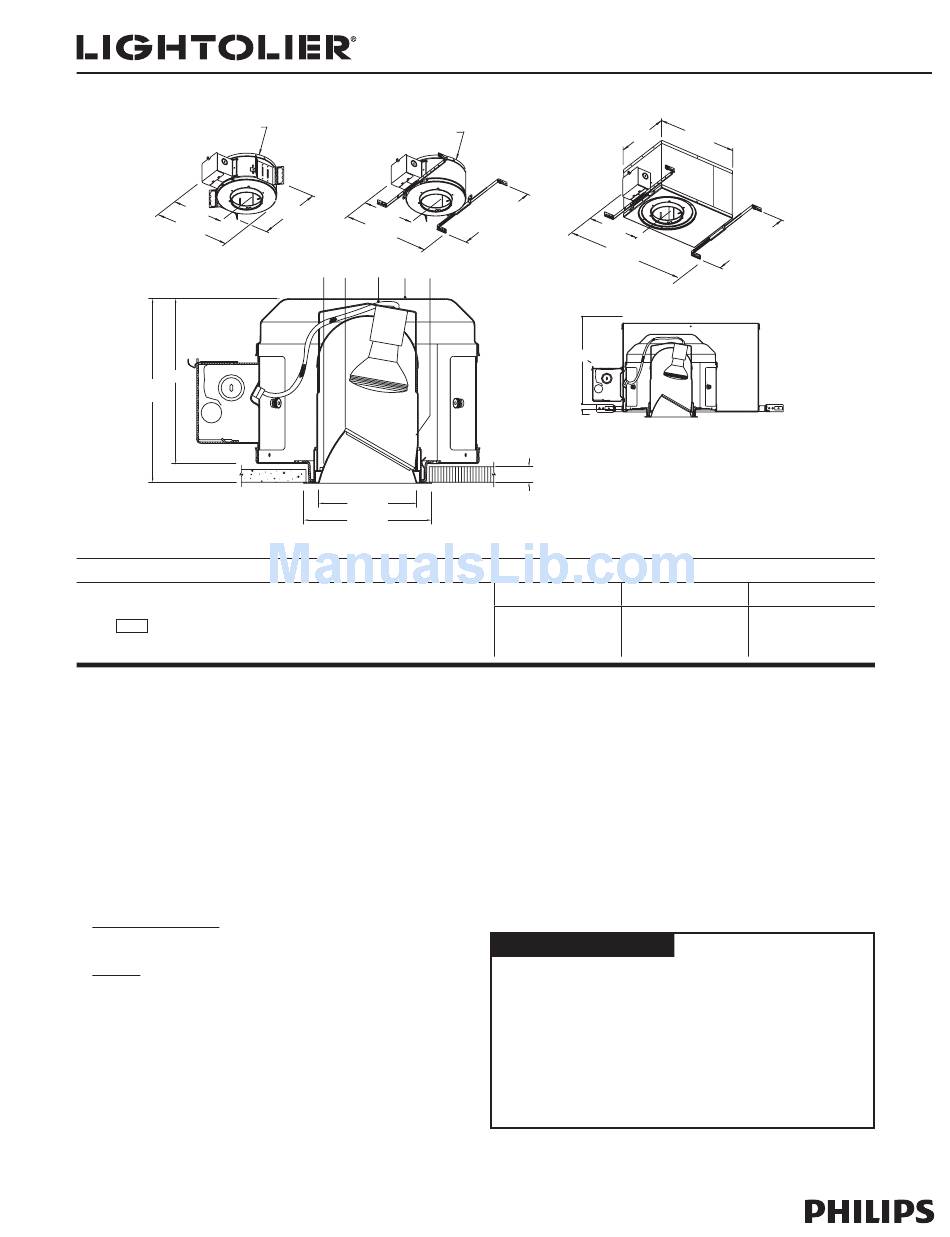

Lightolier Calculite C4P20L Specification

Page 1 of 2
7 3/4"
12 3/8"
O.A.
7"
7 3/4"min.*
8 1/4"max.
*7 3/4"min. is for up to 3/4" thick ceiling.
Reflector Trim
C4P20L CLW Specular Clear, White Flange
C4P20L CLP
Specular Clear, Polished Flange
C4P20L
Add suffix. See options for other finishes.
Features
1. Aperture Cone: 16 ga. aluminum, 50° visual cut-off to lamp image. Keyed
to kick reflector to prevent incorrect installation of cone. Hinged, and snaps
onto kick reflector for easy tool-less installation. Available with painted
white or polished flange. Interchangeable with other Evolution 4 1/2" line
voltage trims.
2. Kick Reflector: 16 ga. aluminum. Specular kick reflector with directional
spread lens distributes light smoothly for vertical surface wall washing.
3. Directional Spread Lens: High temperature, tempered glass. Precisely
contoured to fit onto cone; replaceable.
4. Socket Harness: Medium base porcelain socket with nickel plated
screw shell, No. 18 SF-1 leads to keyed plug-in quick connector for power
connection to junction box.
5. Frame-In Kit: Compatible Frame-In Kits are listed above. See separate
Frame-In Kit specification sheets for details.
Non-IC and Non-IC AirSeal
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal - Fixture may be in direct contact with insulation.
®
Options & Accessories
Reflector Finishes
1
Clear: CL Gold:
Black:
BK Pewter:
Comfort Clear Diffuse:
Champagne Bronze:
1Specify desired flange W White, P Polished
Lightolier is a Philips group brand
4 1/2" Aperture PAR20 / PAR16 Incandescent Lensed Wall Washer Reflector Trim
C4120
9 1/2" Dia.
(Non-IC)
12 1/2"
7 3/4"
14 3/8"
O.A.
1 3 4
4 1/8" Dia.
5 1/2" Dia.
- Insulation must be kept 3" away from fixture
®
GD White: WH
CPW
CCD
CCZ
Calculite
C4A120
(Non-IC AirSeal ® )
9 1/2" Dia.
13 3/4" to 24"
Adjustment
(mounting bars
included)
5 2
9 1/4"
1 1/4" Max. Ceiling Thk.
C4P20LCLW / C4120 or
C4P20LCLW / C4A120
Frame-In Kit
Non-IC
C4120
50W PAR20
75W PAR16
Labels
UL Listed (suitable for wet locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • G0711
Evolution
®
C4AIC
14 1/4" (IC AirSeal ® )
10"
8 1/2"
13 3/4" to 24"
20 1/4"
Adjustment
O.A.
(mounting bars
included)
1/2" to 1" Max. Ceiling Thk.
C4P20LCLW / C4AIC
Non-IC AirSeal IC-AirSeal
®
C4A120 C4AIC
50W PAR20 50W PAR20
75W PAR16 45W PAR16
Type:
C4P20L
®
