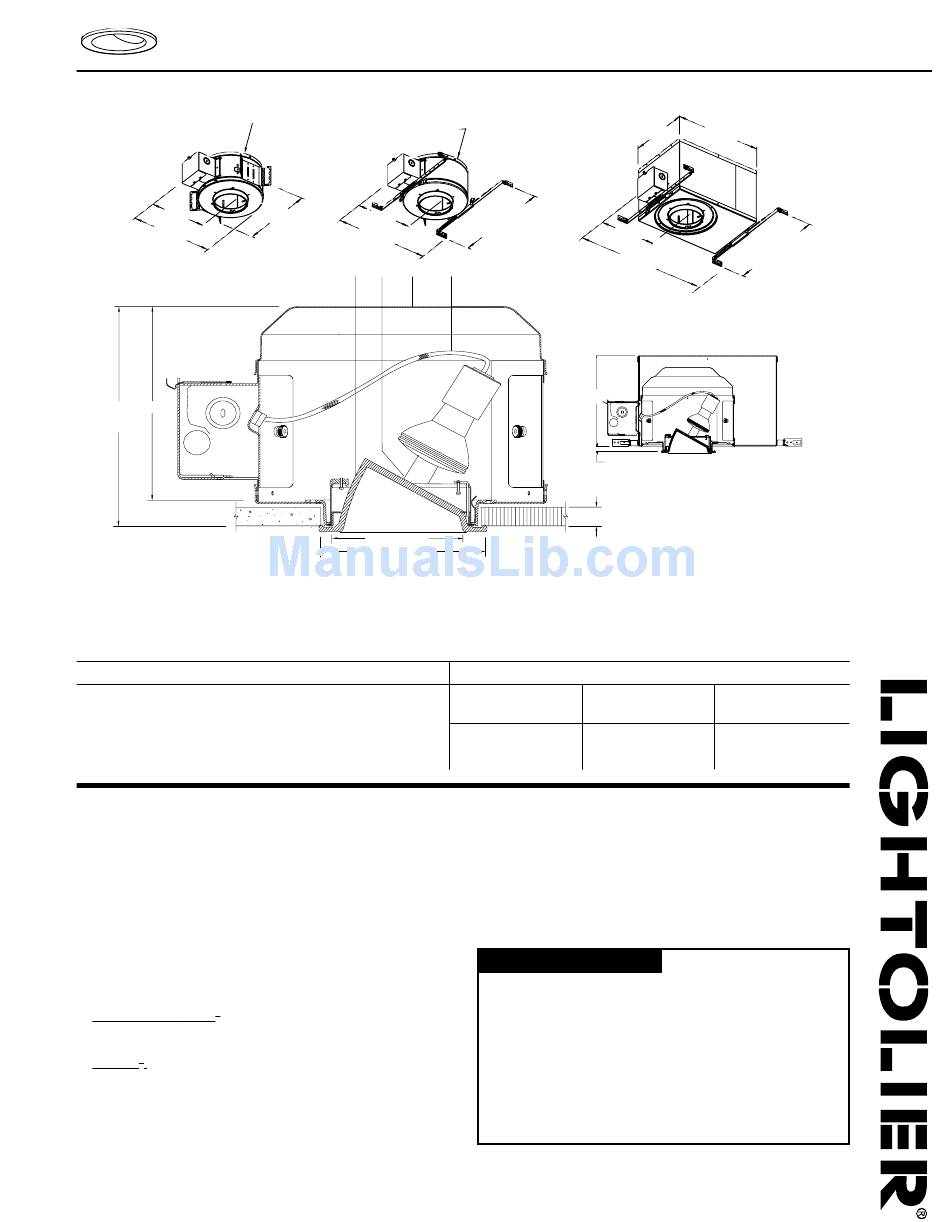

Lightolier Calculite C4P20GA Specification

Calculite
Page 1 of 2
9 1/2" Dia.
7 3/4"
12 3/8"
O.A.
7"
7 3/4" min.*
8 1/4" max.
* 7 3/4" min. is for up to 3/4" thick ceiling.
Ceiling Cutout: 5 1/16" Dia.
Glasslite Trim
C4P20GA Etched White Interior and Flange.
Features
1. Glasslite: One piece borosilicate glass with integral flange, etched interior
and white ceramic coated exterior. Etched white cone finish emits a subtle
glow. Hinged, and snaps onto lampholder assembly for easy tool-less instal-
lation. Interchangeable with other Evolution 4 1/2" line voltage trims.
Suitable for spas, hot tubs, and other wet environments.
2. Lampholder Assembly: Provides 360° horizontal rotation, 35° vertical
adjustment; lockable. Matte black finish.
3. Socket Harness: Medium base porcelain socket with nickel plated screw
shell, No. 18 SF-1 leads, and keyed plug-in quick connector for power con-
nection to junction box.
5. Frame-In-Kit: Compatible Frame-In Kits are listed above. See separate
Frame-In Kit specification sheets for details.
Non-IC and Non-IC AirSeal ® - Insulation must be kept 3" away from fixture
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal ® - Fixture may be in direct contact with insulation.
Labels
UL Listed (suitable for wet locations), I.B.E.W.
® Evolution Incandescent Lensed Downlight
C4120
(Non-IC)
9 1/2" Dia.
12 1/2"
7 3/4"
14 3/8"
O.A.
1 2 4
3
3 7/8" Dia.
5 1/2" Dia.
C4A120
®
(Non-IC AirSeal )
13 3/4" to 24"
Adjustment
8 1/2"
(mounting bars
included)
20 1/4"
O.A.
9 1/4"
1/2" to 1" Thk. Ceiling.
1 1/4" Max. Ceiling Thk.
C4P20GA/ C4120 or
C4P20GA / C4A120
Frame-In Kit
Non-IC Non-IC AirSeal
120V 120V
C4120 C4A120
50W PAR20 50W PAR20
75W PAR16 75W PAR16
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
C4P20GA
4 1/2" Aperture PAR20 Glasslite
C4AIC
14 1/4"
10" ®
(IC AirSeal )
13 3/4" to 24"
Adjustment
(mounting bars
included)
C4P20GA / C4AIC
® IC-AirSeal ®
120V
C4AIC
50W PAR20
60W PAR16
Type:
www.lightolier.com
