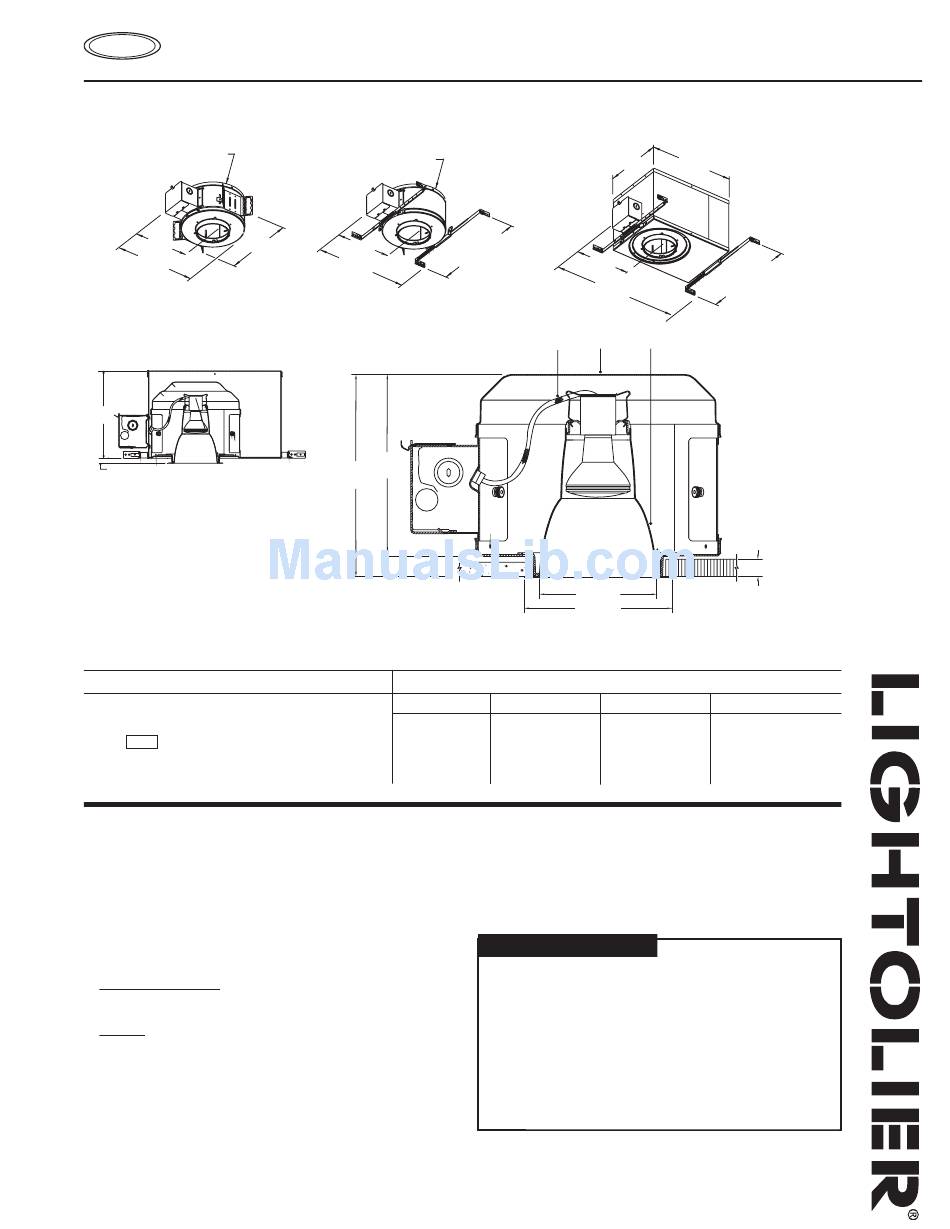

Lightolier Calculite C4P20D Specification

Calculite ® Evolution Incandescent Open Downlight
1 2
Page 1 of 2
9 1/2" Dia.
6 7
7 3/4"
12 1/2"
12 3/8"
O.A.
9 1/4"
1/2" to 1" Thk. Ceiling
C4P20DCLW / C4AIC
Ceiling Cutout: 5 1/16" (129 mm) Dia.
Reflector Trim
C4P20D CLW Specular Clear, White Flange
C4P20D CLP Specular Clear, Polished Flange
C4P20D
Add suffix. See options for other finishes.
75W PAR16
Features
1. Reflector: 16 ga. aluminum, 50° visual cutoff to lamp and lamp image.
Available with painted white or polished flange. Interchangeable with other
Evolution 4 1/2" line voltage trims.
2. Socket Harness: Spring tension clips snap into die-cast aluminum top at
pre-focused positions ensuring correct optical alignment. Medium base por-
celain socket with nickel plated screw shell, No. 18 SF-1 leads, and keyed
plug-in quick connector for power connection to junction box.
3. Frame-In-Kit: Compatible Frame-In Kits are listed above; see separate spec-
ification sheet for details.
Non-IC and Non-IC AirSeal ® - Insulation must be kept 3" away from fixture
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal ® - Fixture may be in direct contact with insulation.

Options and Accessories

Reflector Finishes 1
Clear: CL Gold: GD
Black: BK Pewter: CPW
Comfort Clear Diffuse: CCD
Champagne Bronze: CCZ
1 Specify desired flange: W White, P Polished
3
C4120
(Non-IC)
9 1/2" Dia.
7 3/4"
14 3/8"
O.A.
7"
7 3/4" min.*
8 1/4" max.
* 7 3/4" min. is for up to 3/4" thick ceiling
Non-IC
C4120
50W PAR20
75W PAR16
75W BR19, R20
White: WH
4 5
4 1/2" Aperture PAR20/PAR16/BR19/R20 Reflector Trim
C4A120
®
(Non-IC AirSeal ) 10"
13 3/4" to 24"
Adjustment
8 1/2"
(mounting bars
included)
20 1/4"
O.A.
2 3
4 1/2" Dia.
5 3/4" Dia.
Frame-In Kit
Non-IC AirSeal ® IC-AirSeal ®
C4A120 C4AIC
50W PAR20 50W PAR20
75W PAR16 75W PAR16
75W BR19, R20 75W BR19, R20
Labels
UL Listed (suitable for damp locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
C4P20D
C4AIC
14 1/4"
®
(IC AirSeal )
13 3/4" to 24"
Adjustment
(mounting bars
included)
1
1 1/4" Max. Ceiling Thk.
C4P20DCLW / C4120 or
C4P20DCLW / C4A120
Non-IC Remodeler
C4120RM
50W PAR20
75W BR19, R20
Type:
www.lightolier.com
