Lightolier C4AICLV Instruction Sheet

READ AND UNDERSTAND THESE INSTRUCTIONS bEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local
regulations. To assure full compliance with local codes and regulations, check with your local electrical
inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.

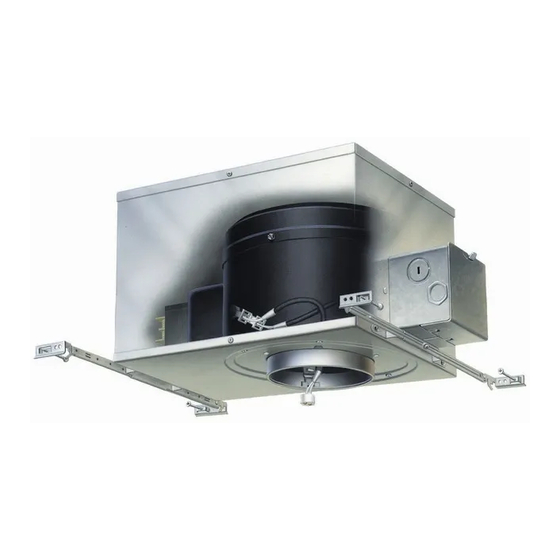

INSULATED CEILING (TYPE-1C) FRAME-IN-KITS: C4AICLV, C6AICLV

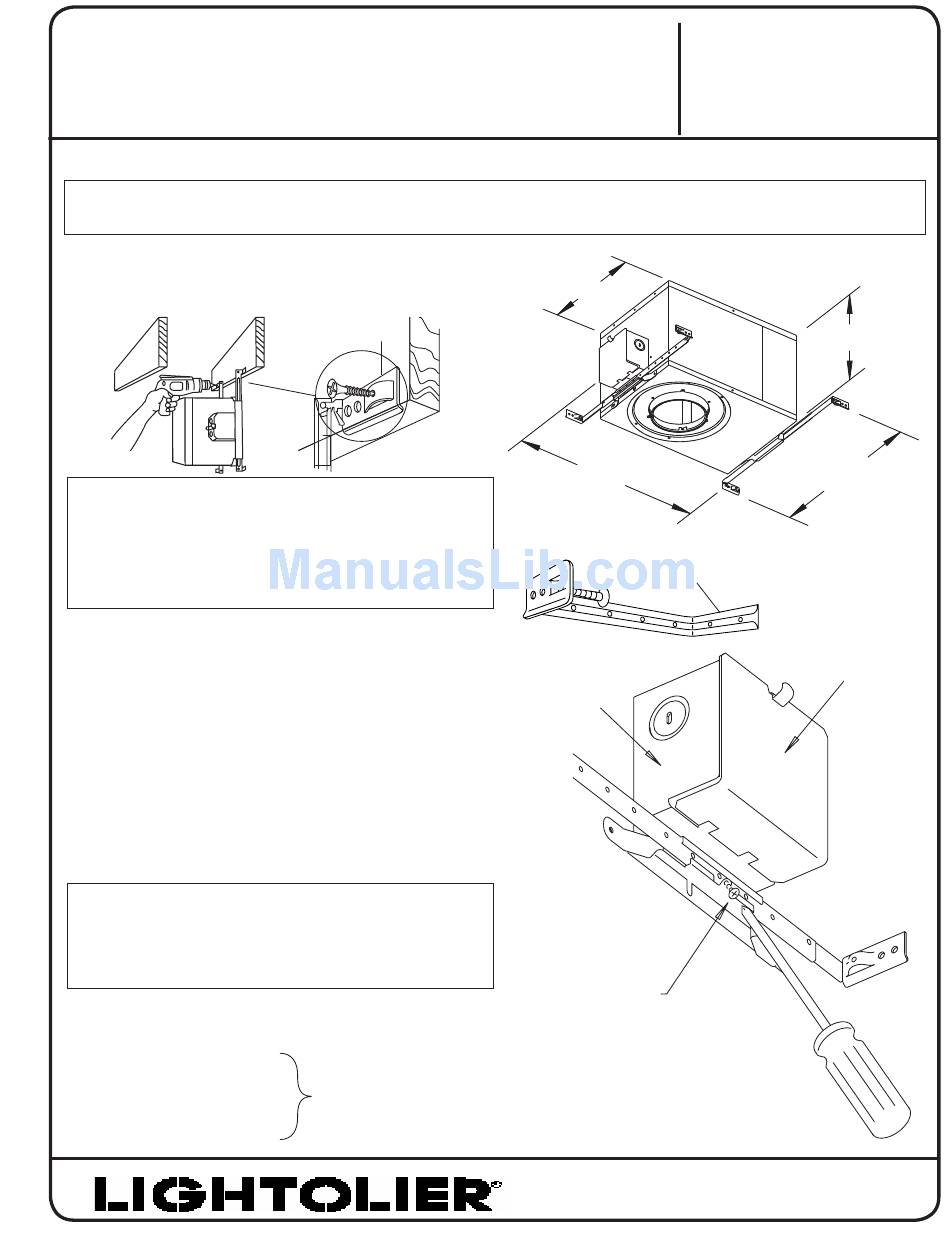

FRAME-IN
Locate fixture along joist and line up bottom edge of HINGED
MOUNTING BAR with the bottom of joist and fasten in place.
FOR JOIST SPACING LESS THAN 16" ON CENTER
(TO 12" ON CENTER):
• MOUNTING BAR CHANNELS can be shortened and used as
nailing legs in tight places. Simply remove INNER BAR from
holed CHANNEL, bend CHANNEL at appropriate point and use
extra screw to secure it to the joist.
WIRE-IN
Wire to SUPPLY LEADS. WHITE FIXTURE LEAD to NEUTRAL
SUPPLY LEAD. BLACK FIXTURE LEAD to HOT (120v) SUPPLY LEAD.
For 277V connect RED FIXTURE LEAD to HOT SUPPLY LEAD.
BARE FIXTURE WIRE to SUPPLY GROUND. Use wirenuts (local hard-
ware item). Place all electrical connections in the J-Box and close
the J-BOX COVER.
NOTE: To inspect splices, leave min 8" of lead wire in J-Box.
SWING-UP
Extend MOUNTING BAR to reach opposite joist and fasten in place.
Adjust fixture to desired position along MOUNTING BAR and lock in
place using locking screw
AIRSEAL ® INSTALLATION (optional)
Install a bead of silicone caulking compound between the
ceiling opening and edge of HOUSING. Housings are tested in
accordance with ASTM E 283 (max 2 cfm @ 75 pa) and comply
with WSEC & MEC when installed as instructed.
CLOSE-IN
Close in ceiling as required.
INSTALLING SOCKET HARNESS
INSTALLING HOUSING TRIMS
FIXTURE TRIM ADJUSTMENT
INSTALLATION PROCEDURE FOR LOW VOLTAGE
HINGED
MOUNTING BAR
SEE SEPARATE
REFLECTOR TRIM
INSTRUCTION
SHEETS
INSTRUCTION SHEET NO.
IS:CICLV
A1099 Page 1 of 2
10"
18"
CHANNEL MOUNTING BAR
J-BOX
LOCKING SCREW
LIGHTOLIER a GENLYTE THOMAS company.
631 Airport Road, Fall River, MA 02720
9 1/4"
24" O.C.
MAX
J-BOX
COVER
COVER
