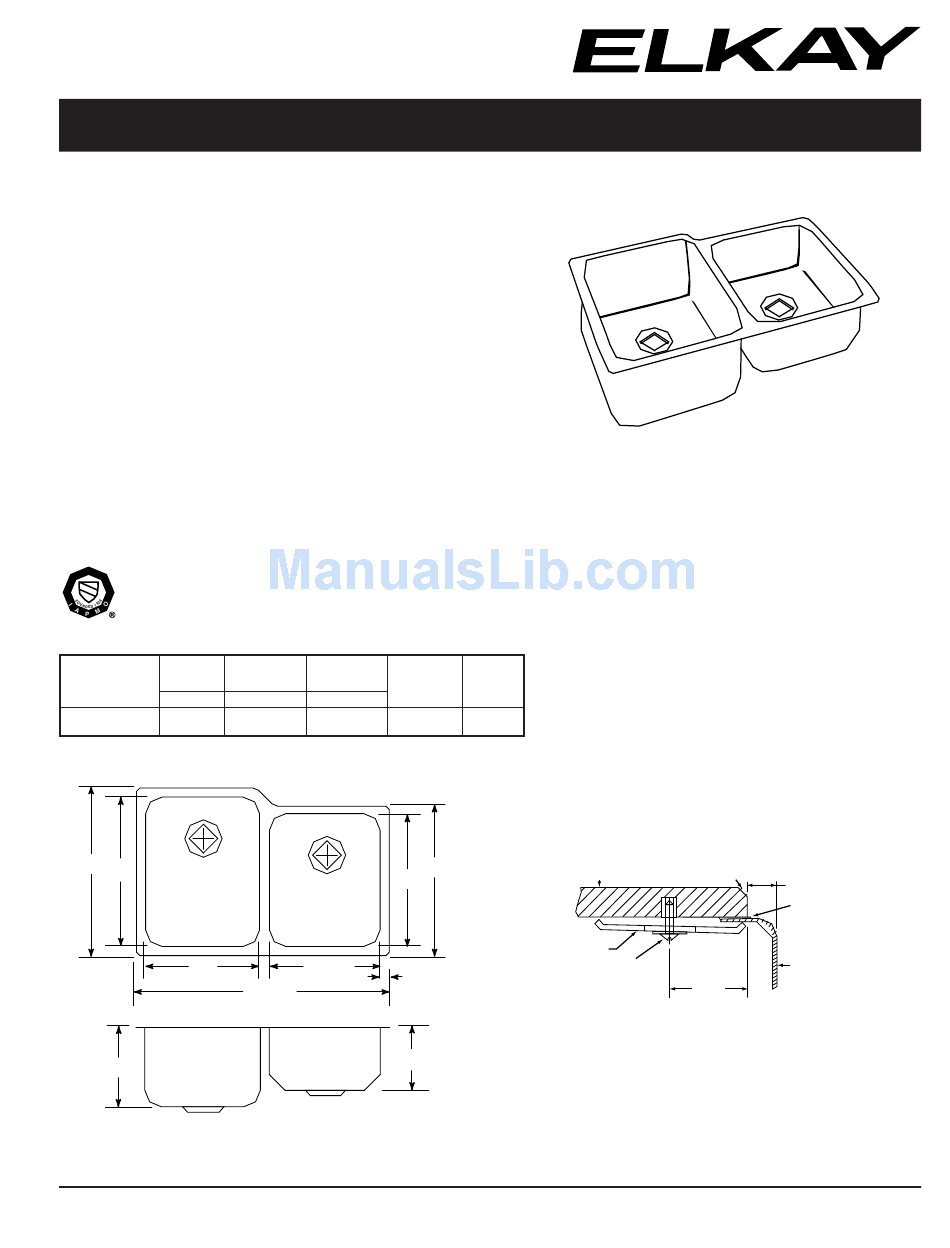

Elkay Lustertone ELUH3120L Specifications

Lustertone Undermount Double Bowl Sink
®
Models ELUH3120L and ELUH3120R
SPECIFICATIONS
GENERAL
Highest quality sink seamlessly drawn of #18 gauge, type 304
(18-8) nickel bearing stainless steel. Underside of sink is fully
protected by heavy duty Sound Guard
Designed to accept waste disposer.
DESIGN FEATURES
Bowl Depths: 9-7/8" (Large Bowl), 7-7/8" (Small Bowl).
Finish: Exposed surfaces are hand blended to a lustrous
highlighted satin finish.
Underside: Underside of sink is fully protected by heavy duty
Sound Guard undercoating to prevent condensation and
™
deaden sound.
OTHER
Drain Opening: 3-1/2". (Drains not included.)
Note: All Elkay custom design undermount sinks are designed
to affix easily to the underside of any solid surface countertop.
OPTIONAL ACCESSORIES
Rinsing Baskets: LKRB1611, LKRB1614, VB1816 and LKERBSS.
Bottom Grids: LKOBG1613 and LKOBG1814.
Cutting Boards: CB1613, CB1713, CBC1714, CBT1713,
CBT2213, CBR1316, CBR1418, CBS1316 and CBS1418.
These sinks comply with ANSI Standard A112.19.3M.
This sink is listed by the International Association of
U P Plumbing and Mechanical Officials as meeting the
C
requirements of the Uniform Plumbing Code.
SINK DIMENSIONS (INCHES)*
Overall
Model
Number L W L
ELUH3120R 31 1 / 20 1 / 14 18 9
4 2
*Length is left to right. Width is front to back.
**Template and countertop mounting clips are packed with every sink.
20-1/2"
18"
14"
9-7/8"
Model ELUH3120R Illustrated
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay Manufacturing Company
www.elkay.com
undercoating.
™
Inside Inside
Left Bowl Right Bowl
Cutout in
W D L W D Countertop
See
7 / 13 1 / 16 7 7 /
8 2 8
Template**
18-1/2"
16"
13-1/2"
1-1/4" TYP
(6 SIDES)
31-1/4"
7-7/8"
Ship.
Wt.
Lbs.
23
Installation Profile of
ELUH Double Bowl Models
The template provided with each ELUH sink provides
the only type of installation recommended by Elkay.
CONTOUR EDGE
COUNTERTOP TO CUSTOMER DESIRE
MOUNTING
BRACKET
FASTENER
(NOT FURNISHED)
(ELUH Double bowl)
ALL DIMENSIONS IN INCHES, TO CONVERT
TO MILLIMETERS MULTIPLY BY 25.4.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Model ELUH3120R
1/2"
SILICONE CAULK
(NOT FURNISHED)
SINK
1-1/8"
Printed in U.S.A.
©2002 Elkay Mfg. Co.
1-108E
(Rev. 5/02)
®
