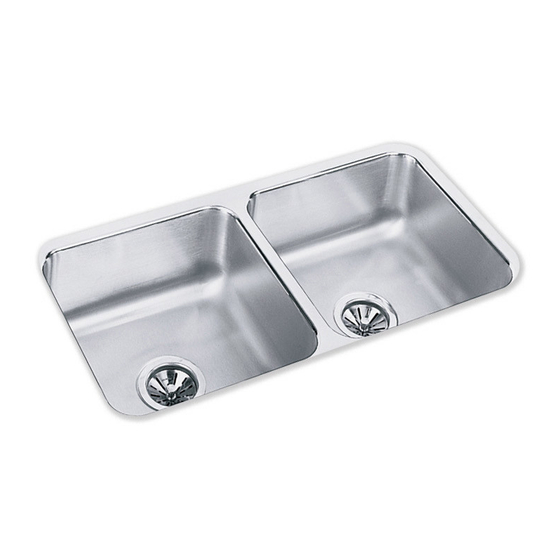

Elkay Lustertone ELUH3116 Specifications

Lustertone ® Undermount Double Bowl Sink
Model ELUH3116

SPECIFICATIONS

GENERAL
Highest quality sink seamlessly drawn of #18 gauge, type 304
(18-8) nickel bearing stainless steel. Underside of sink is fully
protected by heavy duty Sound Guard
Designed to accept waste disposer.
DESIGN FEATURES
Bowl Depth: 7-1/2".
Finish: Exposed surfaces are hand blended to a lustrous
highlighted satin finish.
Underside: Underside of sink is fully protected by heavy duty
Sound Guard undercoating to prevent condensation and
™
deaden sound.
OTHER
Drain Opening: 3-1/2".
Note: All Elkay custom design undermount sinks are designed
to affix easily to the underside of any solid surface countertop.
OPTIONAL ACCESSORIES
Rinsing Basket: LKRB1414 and LKERBSS.
Bottom Grid: LKBG1414.
Complies with ANSI Standard A112.19.3M.
This sink is listed by the International Association of
U P
C Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code.
SINK DIMENSIONS (INCHES)*
Overall
Model
Number L W
ELUH3116 31 3 / 16 1 /
4 2
*Length is left to right. Width is front to back.
**Template and countertop mounting clips are packed with every sink.
1-3/4" R
14"
31-3/4"
1-3/4" R
Model ELUH3116 Illustrated
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
www.elkay.com
™ undercoating.
Inside Each Bowl
Cutout in
L W D Countertop
See
14 14 7 1 /
2
Template**
14"
1-1/4" TYP.
14"
1-1/4"
7-1/2"
2222 Camden Court
Oak Brook, IL 60523
Ship.
Wt.
Lbs.
21
16-1/2"
The template provided with each ELUH sink provides
the only type of installation recommended by Elkay.
COUNTERTOP
MOUNTING
BRACKET
FASTENER
(NOT FURNISHED)
(ELUH Double bowl)
ALL DIMENSIONS IN INCHES, TO CONVERT
TO MILLIMETERS MULTIPLY BY 25.4.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
Model ELUH3116
Installation Profile of
ELUH Double Bowl Models
CONTOUR EDGE
TO CUSTOMER DESIRE
1/2"
SILICONE CAULK
(NOT FURNISHED)
1-1/8"
Printed in U.S.A.
©2003 Elkay
(Rev. 2/03)
®
SINK
1-132C
