Elkay Lustertone ELU1317 Specifications

SPECIFICATIONS

GENERAL
Highest quality sink seamlessly drawn of #18 gauge, type 304
(18-8) nickel bearing stainless steel. Underside of sink is fully
protected by heavy duty Sound Guard
to accept waste disposer.
DESIGN FEATURES
Bowl Depth: 7-1/2".
Finish: Exposed surfaces are hand blended to a lustrous high-
lighted satin finish. ELUH1317 has highlighted inside top bowl
radius.
Underside: Underside of sink is fully protected by heavy duty
Sound Guard ® undercoating to prevent condensation and
deaden sound.
OTHER
Drain Opening: 3-1/2".
NOTE: All Elkay custom design undermount sinks are designed
to affix easily to the underside of any solid surface countertop.
Installation: See illustrated profile below.
These sinks comply with ANSI Standard A112.19.3M.
SINK DIMENSIONS (INCHES)*
Overall
Model
Number L W
ELU1317 13 16 1 / 11
2
ELUH1317 14 17 1 / 11
2
*
Length is left to right. Width is front to back.
**Template and countertop mounting clips are packed with every sink.
15"
16-1/2"

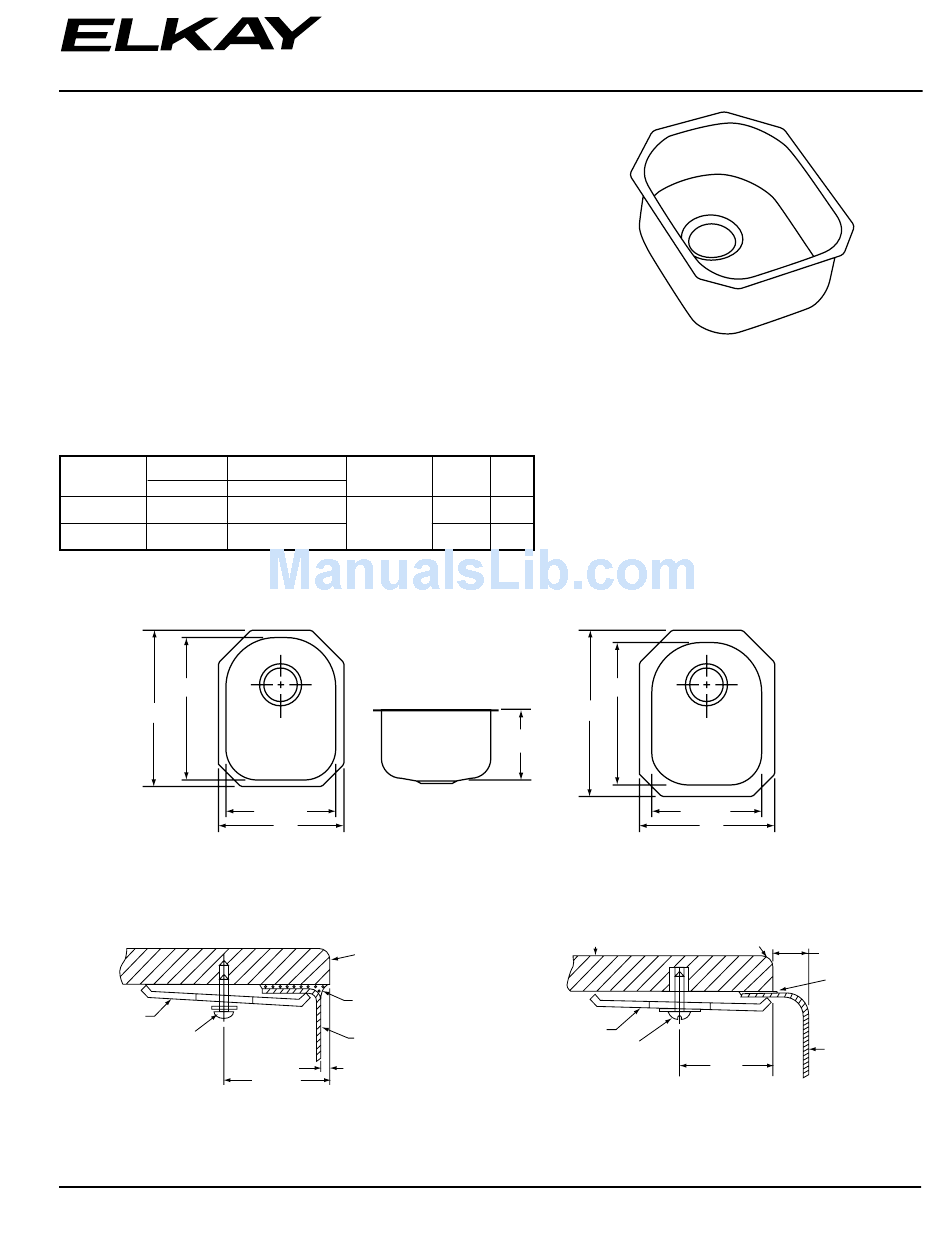

Model ELU1317 Illustrated
The template provided with each ELU/ELUH sink provides the only type of installation recommended by Elkay.
MOUNTING
BRACKET
FASTENER
(NOT FURNISHED)
1/8" Countertop
Overhang
(ELU Single bowl)
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
www.elkayusa.com
®
® undercoating. Designed
Inside Bowl
Cutout in
L W D Countertop
1 / 15 7 1 /
2 2
See
Template**
1 / 15 7 1 /
2 2
11-1/2"
13"
Installation Profile of ELU and ELUH Single Bowl Models
COUNTERTOP
SILICONE CAULK
(NOT FURNISHED)
SINK
1/8 (APPROX.)
1-3/8" + 1/4"
_ OVERHANG
2222 Camden Court
Oak Brook, IL 60523
Lustertone ®
Models ELU1317 and ELUH1317
Minimum Ship.
Cabinet Wt.
Size Lbs.
18 9 1 /
2
18 9 1 /
2
15"
17-1/2"
7-1/2"
COUNTERTOP
MOUNTING
BRACKET
FASTENER
(NOT FURNISHED)
(ELUH Single bowl)
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
Undermount Single Bowl Sink
Model ELU1317
11-1/2"
14"
Model ELUH1317 Illustrated
CONTOUR EDGE
TO CUSTOMER DESIRE
1-1/8"
Printed in U.S.A.
©2003 Elkay
(Rev. 11/03)
1/2"
SILICONE
CAULK
(NOT
FURNISHED)
SINK
1-122C
