Lustertone
®

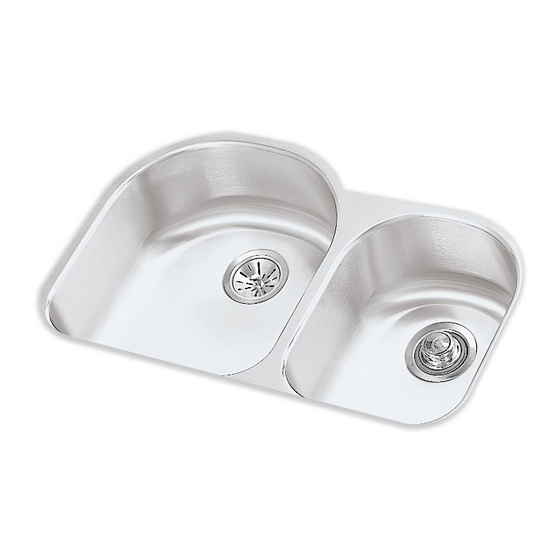

Undermount Double Bowl Sink
Model ELUH3119 Series
SPECIFICATIONS
GENERAL
Highest quality sink seamlessly drawn of #18 gauge, type 304
(18-8) nickel bearing stainless steel. Underside of sink is fully
protected by heavy duty Sound Guard
Designed to accept waste disposer.
DESIGN FEATURES
Bowl Depth: 7-1/2" (ELUH3119); 10" (ELUH311910 Large
Bowl); 7-1/2" (ELUH311910 Small Bowl).
Finish: Exposed surfaces are hand blended to a lustrous
highlighted satin finish.
Underside: Underside of sink is fully protected by heavy duty
Sound Guard
undercoating to prevent condensation and
™
deaden sound.
OTHER
Drain Opening: 3-1/2".
Note: All Elkay custom design undermount sinks are designed
to affix easily to the underside of any solid surface countertop.
OPTIONAL ACCESSORIES
Rinsing Baskets: LKRB1614 and LKERBSS.
Bottom Grid: LKOBG1716.
These sinks comply with ANSI Standard A112.19.3M.
SINK DIMENSIONS (INCHES)*
Overall
Model
Number
L
W
ELUH3119L
31
1
/
20
4
ELUH3119R
31
1
/
20
4
ELUH311910L
31
1
/
20
4
ELUH311910R
31
1
/
20
4
*Length is left to right. Width is front to back.
**Template and countertop mounting clips are packed with every sink.
Installation Profile of ELUH Double Bowl Models
The template provided with each ELUH sink provides
the only type of installation recommended by Elkay.
CONTOUR EDGE
COUNTERTOP
TO CUSTOMER DESIRE
MOUNTING
BRACKET
FASTENER
(NOT FURNISHED)
(ELUH Double bowl)
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
www.elkay.com
™
undercoating.
Inside
Inside
Left Bowl
Right Bowl
L
W
D
L
W
11
1
/
15
7
1
/
16
17
1
/
2
2
2
16
17
1
/
7
1
/
11
1
/
15
2
2
2
11
1
/
15
7
1
/
16
17
1
/
2
2
2
16
17
1
/
10
11
1
/
15
2
2
1/2"
SILICONE CAULK
(NOT FURNISHED)
SINK
1-1/8"
2222 Camden Court
Oak Brook, IL 60523
Ship.
Cutout in
Wt.
D
Countertop
Lbs.
7
1
/
19
1
/
2
2
7
1
/
See
19
1
/
2
2
Template**
10
20
1
/
2
7
1
/
20
1
/
2
2
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
®
Model ELUH3119L
Printed in U.S.A.
©2002 Elkay
1-123E
(Rev. 12/02)
