Elkay Lustertone ELUHF2520 Specifications

Lustertone Undermount
®
Single Bowl Sink with Apron
Model ELUHF2520
SPECIFICATIONS
GENERAL
Highest quality sink, with integral apron, seamlessly drawn of
#18 gauge, type 304 (18-8) nickel bearing stainless steel.
Underside of sink is fully protected by heavy duty Sound
Guard undercoating. Designed to accept waste disposer.
™
DESIGN FEATURES
Bowl Depth: 7-7/8".
Finish: Exposed surfaces are hand blended to a lustrous high-
lighted satin finish. ELUHF models have highlighted inside top
bowl radius.
Underside: Underside of sink is fully protected by heavy duty
Sound Guard undercoating to prevent condensation and
™
deaden sound.
OTHER
Drain Opening: 3-1/2".
Note: For solid surface countertop installations only.
Installation: See illustrated profile below.
Countertop mounting clips are packed with every sink.
OPTIONAL ACCESSORIES
Rinsing Basket: LKRB1520 and LKERBSS.
Cutting Boards: CB1716 and CBC1714.
SINK DIMENSIONS (INCHES)*
Overall
Model
Number L W
ELUHF2520 25 20
*Length is left to right. Width is front to back.
TOP VIEW
25"
2" 21"
7-7/8"
BOWL

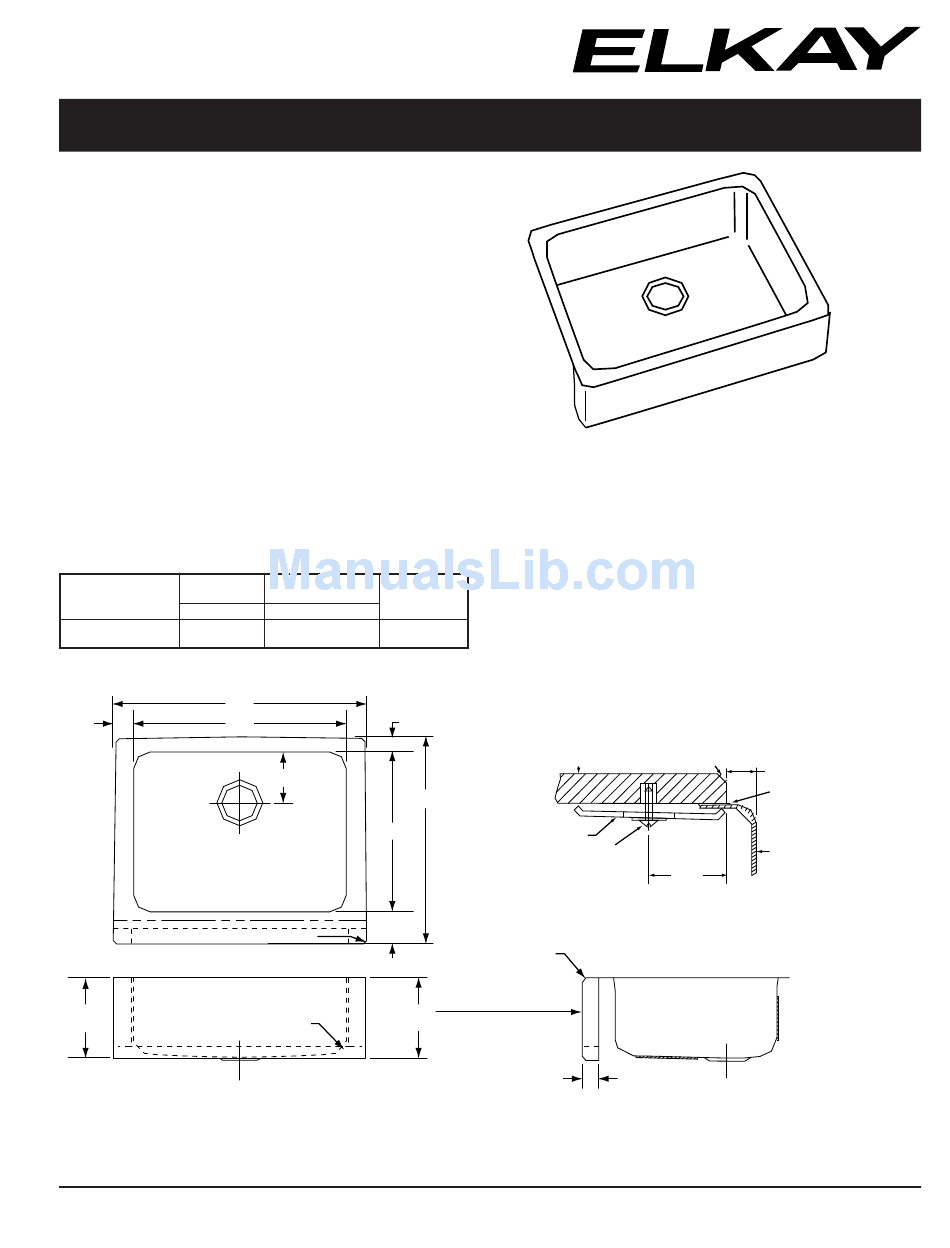

Model ELUHF2520 Illustrated
ALL DIMENSIONS IN INCHES. TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay Manufacturing Company
www.elkay.com
Ship.
Inside Bowl
Wt.
L W D Lbs.
1 / 21 15 3 / 7 7 / 23
2 4 8
1-1/2"
5"
20-1/2"
15-3/4"
3-1/4"
3/8" R
8"
1-3/4" R
APRON
Installation Profile of
ELUHF Single Bowl Model
Elkay recommends ELUHF sinks are
installed with a 1/2" reveal as shown.
CONTOUR EDGE
COUNTERTOP
TO CUSTOMER DESIRE
MOUNTING
BRACKET
FASTENER
(NOT FURNISHED)
1-1/8"
SIDE VIEW
3/8" R
1-5/8"
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
®
Model ELUHF2520
1/2"
SILICONE CAULK
(NOT FURNISHED)
SINK
Printed in U.S.A.
©2002 Elkay Mfg. Co.
1-143B
(Rev. 7/02)
