TYAN Tank GT20 B5375 Service Manual

Rack-mountable barebone system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

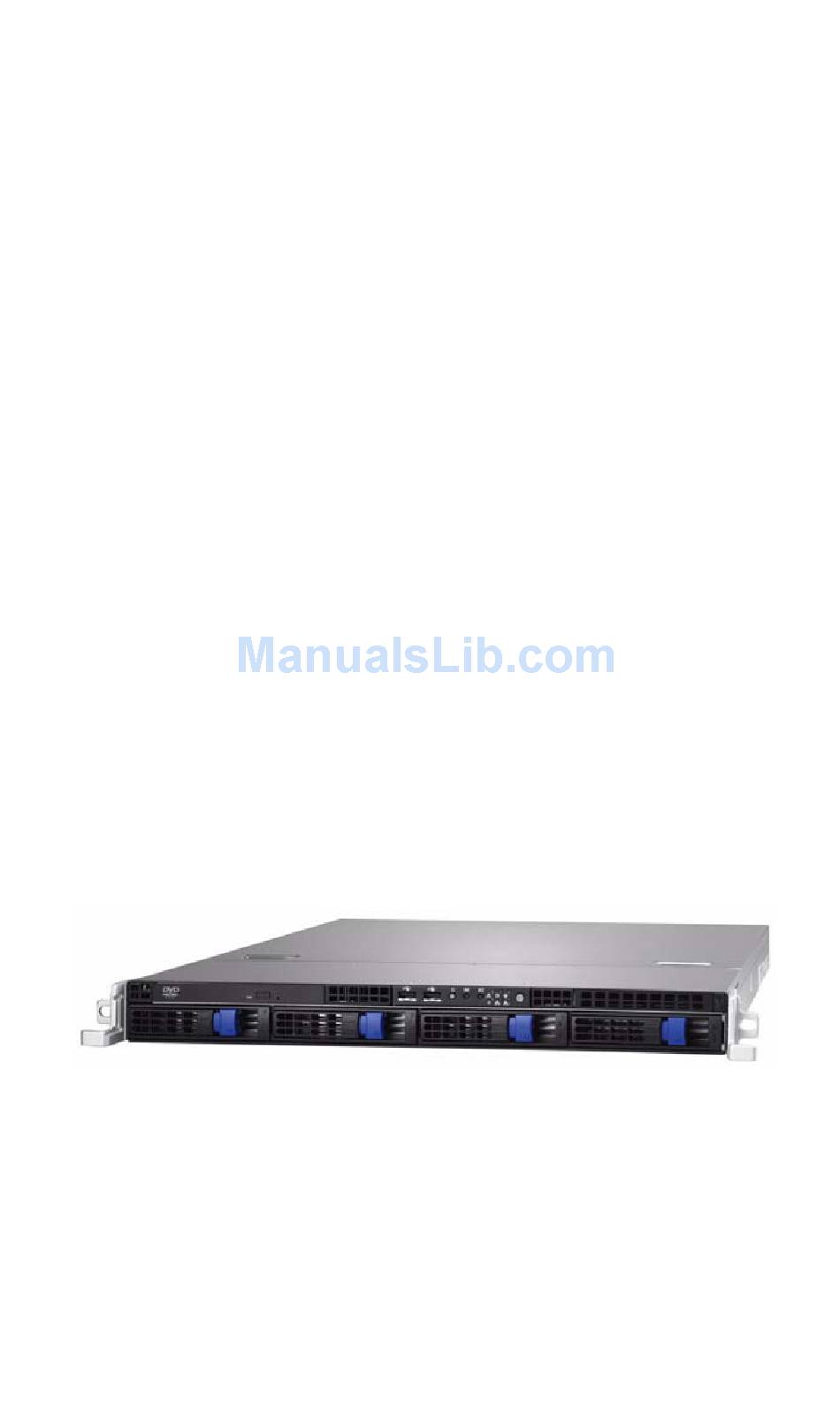

Tank GT20
B5375
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tank GT20 B5375 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN Tank GT20 B5375

Summary of Contents for TYAN Tank GT20 B5375

  • Page 1 Tank GT20 B5375 Service Engineer’s Manual...
  • Page 3 TYAN retains the right to make changes to product descriptions and/or specifications at any time, without notice. In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
  • Page 4 Federal Communications Commission (FCC) Notice for the USA Compliance Information State- ment (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules Operation is subject to the following conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including inter- ference that may cause undesired operation.
  • Page 5 About this Manual This manual provides you with instructions on installing your Tank GT20. This manual is intended for experienced users and integra- tors with hardware knowledge of personal computers. This manual consists of the following parts Chapter 1: Provides an Introduction to the Tank GT20 B5375 bare-bones, packing list, describes the external components, gives a table of key components, and provides block diagrams of the system.
  • Page 6 SAFETY INFORMATION Before installing and using the Tank GT20, take note of the following precautions: – Read all instructions carefully. – Do not place the unit on an unstable surface, cart, or stand. – Do not block the slots and opening on the unit, which are pro- vided for ventilation.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1:Overview 1.1 About the Tank GT20 B5375 ......1 1.2 Features .
  • Page 8 3.6 Replacing the LED Control Board ......41 3.7 Replacing the M1012 Adapter Board ..... . 43 3.7.1 M1012 Adapter Board Features for B5375 .

  • Page 9: Chapter 1:Overview

    Chapter 1: Overview About the Tank GT20 B5375 Congratulations on your purchase of the TYAN Tank GT20 (B5375), a highly-optimized rack-mountable barebone sys- tem. The Tank GT20 (B5375) is designed to support two ® Intel Xeon 5100/5200/5400 processors, providing a rich fea- ture set and incredible performance.

  • Page 10: Features

    • Supports TYAN Server Manage- ® • XGI Z9S PCI graphics controller ment (TSM) • 32MB DDR2 frame buffer of video • Optional TYAN SMDC M3295-2 / memory M3296, IPMI 2.0 compliant • Support TYAN LCM Module Storage • Hard Disk Drives: BIOS –...
  • Page 11 Regulatory • FCC Class A (Declaration of Con- formity) • CE (Declaration of Congormity) • VCCI • C-Tick Environment Temperature • Operating temperature 5 C~35 • Non-operating temperature -40 Power Supply • EPS 12V, 1U, 600W with PFC • 100V~240V AC input Chapter 1: Overview...

  • Page 12: Unpacking

    Unpacking This section describes the Tank GT20 package contents and accessories. 1.3.1 Opening the box Open the box carefully and ensure that all components are present and undamaged. The product should arrive pack- aged as illustrated below. Packaged accessories Chapter 1: Overview...

  • Page 13: Box Contents

    1.3.2 Box Contents Industry standard 1U chassis, (4) hot-swap HDD bays Tyan S5375 motherboard (pre-installed) EPS 1U 600W PSU (pre-installed) (1) 40mm x 28mm FAN (4) 40mm x 56mm FAN LED and USB control board (pre-installed) Fan Adapter Board SATA Backplane...

  • Page 14: Accessories

    If any items are missing or appear damaged, contact your retailer or browse to TYAN’s Web site for service: http://www.tyan.com. The Web site also provides information on other TYAN prod- ucts, plus FAQs, compatibility lists, BIOS settings, and more. HDD Screws...
  • Page 15 Rail Kit Rear Front Mounting Bracket x 4 Sliding Brackets Front L-Bracket x 2 Rear L-Bracket x 2 Mounting Ears & Screws Sliding Rails x 2 Screws Kit Chapter 1: Overview...

  • Page 16: About The Product

    About the Product The following views show you the product. 1.4.1 Front View Reset switch Warning LED NMI switch HDD activity LED ID Switch Power LED ID LED Power switch USB ports 2 x LAN LEDs Hard Drive Bay x 4 1.4.2 Rear View Power Supply Socket PS/2 Mouse/Keyboard Ports...

  • Page 17: Led Definition

    1.4.3 LED Definition Front Panel Color State Description Power Green Power ON Power OFF HDD Activity Amber Random Blinking HDD access activity No disk activity LAN1/LAN2 Linkage Green LAN linked Green Blinking LAN accessing No LAN linked Warning Fan fails Normal Hot Swappable HDD Green...

  • Page 18: Internal View

    1.4.4 Internal View FAN5 FAN1 FAN9 FAN6 1. SMDC (M3295-2/M3296) 7. M1012 Adapter Board Slot 8. SATA Backplane 2. PCI-E Riser (M2083) Slot 9. Four SATA HDD Bays 3. Memory Slots 10. SATA/SAS Cable 4. Power Supply 11. One SATA/SAS Cable for 5.

  • Page 19: Motherboard Block Diagram

    1.4.5 Motherboard Block Diagram Chapter 1: Overview...

  • Page 20: Motherboard Layout

    1.4.6 Motherboard (S5375) Layout Chapter 1: Overview...
  • Page 21 USB Rear Connector COM2 COM2 Header SATA0~SATA5 Serial ATA Connector 24-pin Power Connector (EPS 12V) 8-pin Power Connector (EPS 12V) Aux. Power Header for TYAN Riser Card (M2061) CPUFAN1/CPUFAN2/ 4-pin Power Connector with Tachometer FAN1/FAN2/FAN3 VGA Enable/Disable Jumper Clear CMOS Jumper...
  • Page 22 NOTE Chapter 1: Overview...

  • Page 23: Chapter 2:Setting Up

    Chapter 2: Setting Up 2.0.1 Before You Begin This chapter explains how to install the CPU, CPU heatsink, memory modules, and hard drives. Instructions on inserting a PCI card are also given. Take note of the precautions mentioned in this section when installing your system.

  • Page 24: Precautions

    2.0.4 Precautions Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Tank GT20 or injury to yourself.

  • Page 25: Rack Mounting

    Rack Mounting After installing the necessary components, the Tank GT20 can be mounted in a rack using the supplied rack mounting kit. Rack mounting kit Sliding Rails x 2 Sliding Brackets x 4 (Front x 2, Rear x 2) Mounting Ears (including screws) x 2 Screws Kit x 1 Mounting Brackets x 4 2.1.1 Installing the Server in a Rack...
  • Page 26 Installing the Inner Rails to Chassis 1. Screw the mounting ear to each side of Tank GT20 as shown using 2 screws from the supplied screws kit. Mounting Ears 2. Draw out the inner rails from rail assembly. Install inner rails to left and right sides of chassis using 1 M4-4L(A) screw for each side.
  • Page 27 4. Locate the front and rear brackets. Rear Bracket x2 Front Bracket x2 5. Secure the front bracket to outer rail with 2 M4-4L(A) screws. 6. Reserve the distance same as in Step 2 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L(A) screws.
  • Page 28 Rackmounting the Server 8. Draw out the middle rail to the latch position. 9. Lift the chassis and then insert the inner slide rails into the middle rails. 10. Push the chassis in and press the latch key (A). Then push the whole system into the rack (B).
  • Page 29 11. Secure the mounting ears of chassis to the rack with 2 M5-15L(C) screws. NOTE: To avoid injury, it is strongly recommended that two people lift the Tank GT20 into the place while a third person screws it to the rack. Chapter 2: Setting Up...

  • Page 30: Installing Motherboard Components

    Installing Motherboard Components This section describes how to install components on to the motherboard, including CPU, memory modules and PCI card. 2.2.1 Removing the Chassis Cover Follow these instructions to remove the Tank GT20 chassis cover. 1. Remove the screw on the back side. Then slide the chas- sis cover in the direction of arrow.

  • Page 31: Installing The Memory

    2.2.2 Installing the Memory Follow these instructions to install the memory modules on the motherboard. 1. Locate the memory slots on the motherboard. 2. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. 3.
  • Page 32 Memory Population Rules NOTE: Only DIMM-1, DIMM-2, DIMM-5 and DIMM-6 slots support Dual Rank memory modules. Chapter 2: Setting Up...

  • Page 33: Installing The Cpu And Heatsink

    2.2.3 Installing the CPU and Heatsink 1. Follow these instructions to install the CPU and CPU heatsink. 2. Before you install the CPU and heatsink, please make sure a black sponge is attached to the fans for better thermal solution. 3.
  • Page 34 Remove the load plate to install CPU. 6. Pull the CPU lever up to release the CPU socket to a fully open position. 7. Place the CPU on the CPU socket, ensuring that pin 1 is located in the right direction. Chapter 2: Setting Up...
  • Page 35 8. Press the CPU socket lever down in the direction shown to secure the CPU. 9. Screw the heatsink to the motherboard following the indicated order. 10. Repeat the same procedures to install CPU and heatsink for the second CPU socket. Chapter 2: Setting Up...

  • Page 36: Installing The Pci-E Card

    2.2.4 Installing the PCI-E Card Follow these instructions to install a PCI-E card. 1. Pull open the tab of PCI-E slot on the rear panel in the direction as shown to release the PCI bracket. 2. Move the tab to right as shown and then take off the PCI bracket.
  • Page 37 4. Push the tab of PCI-E slot on the rear panel in the direc- tion as shown to secure PCI-E card. Chapter 2: Setting Up...

  • Page 38: Installing The External Hard Drive

    Installing the External Hard Drive The GT20 chassis kit supports external SATA or SCSI hard drives. Follow these instructions to install an external SATA or SCSI hard drive. 1. Press the locking lever latch in the direction of arrow (A) and then pull the locking lever open (B).
  • Page 39 4. Remove the drive tray holder. 5. Place a hard drive into the drive tray. 6. Use 4 screws to secure the Hard Disk Drive. NOTE: The new HDD tray is compatible only with B5375 and models developed later. The new sliding rails on both sides of the drive tray are gray while the old ones are black.
  • Page 40 7. Reinsert the drive tray into the chassis (A), ensuring that the drive tray is completely inserted into the chassis (B). 8. Pressing the locking lever to secure the hard drive tray. Chapter 2: Setting Up...

  • Page 41: Chapter 3:Replacing Pre-Installed Components

    Chapter 3: Replacing Pre-Installed Components Introduction This chapter explains how to replace pre installed compo- nents including the motherboard, LED control board, HDD, and CD-ROM drive. Take note of the precautions in this section when installing your system. 3.1.1 Work Area Make sure you have a stable, clean working environment.

  • Page 42: Precautions

    3.1.3 Precautions Components and electronic circuit boards can be damaged by static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Tank GT20 or injury to yourself.

  • Page 43: Disassembly Flowchart

    Disassembly Flowchart The following flowchart outlines the disassembly procedure. Rear Components DIMMs Chassis rear cover CPU/heatsink assembly Mainboard PCI card Power Supply Mainboard Front Components Chassis rear cover PCBs DVD-ROM Control M1012 Board Adapter Board HDD Backplane Chapter 3: Replacing Pre-Installed Components...

  • Page 44: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow these instructions to remove the cover of the Tank GT20 chassis cover. 1. Remove the screw on the back side. Then slide the chas- sis cover in the direction of arrow. 2.

  • Page 45: Replacing Motherboard Components

    Replacing Motherboard Components Follow these instructions to replace motherboard compo- nents, including the motherboard. 3.4.1 Disconnecting All Motherboard Cables Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cabling. 1.

  • Page 46: Removing The Motherboard

    3.4.2 Removing the Motherboard After removing all of those cables, follow these instructions to remove the motherboard from the chassis. 1. Unscrew to remove the link bar. 2. Remove seven screws securing the motherboard to the chassis. 3. Remove the motherboard. Chapter 3: Replacing Pre-Installed Components...

  • Page 47: Replacing The Slim Dvd-Rom

    Replacing the Slim DVD-ROM Follow these instructions to replace the DVD-ROM. 1. Remove power and data cables from the slim DVD-ROM adapter. 2. Press the tab in the directions as show to release the DVD-ROM drive. 3. The DVD-ROM drive will be freed from the drive bay after pressing the tab.
  • Page 48 4. Disconnect the power and data cables from the DVD- ROM drive. 5. Remove two screws that secure DVD-ROM drive to the bracket. 6. Replace the DVD-ROM drive. 7. Secure DVD-ROM to the bracket using two screws. Then replace the unit into the drive bay and connect the DVD- ROM power and data cables.

  • Page 49: Replacing The Led Control Board

    Replacing the LED Control Board Follow these instructions to replace the LED control board. 1. Remove two screws securing LED control board unit to the chassis. 2. Lift the LED control board unit free of the chassis. 3. Remove three screws securing LED control board to the bracket.
  • Page 50 4. Lift the LED control board free from the chassis. After replacement, insert the unit into the chassis. Chapter 3: Replacing Pre-Installed Components...

  • Page 51: Replacing The M1012 Adapter Board

    Replacing the M1012 Adapter Board 1. Remove all of those cables connected to the adapter board, including fan cables, DVD-ROM power cable, front LED panel cable, power cables, and SATA cables. Chapter 3: Replacing Pre-Installed Components...
  • Page 52 2. Remove six screws to release the adapter board. Chapter 3: Replacing Pre-Installed Components...

  • Page 53: M1012 Adapter Board Features For B5375

    3.7.1 M1012 Adapter Board Features for B5375 J1: Front Panel J16: LCM Connector Connector J14: Fan Tach Connector FDD1: Standard Floppy Connector J7:Fan Tach & PWM Connector J3: LAN/ID LED Connector JP1: Fan Input Select Connector J19: CD-ROM Power Connector J5: Fan Connector J9: Fan Connector J11: Fan Connector...

  • Page 54: System Fan Connection

    3.7.2 System Fan Connection The following tables provide the information for system fan connection. System Fan Speed Control Signal M1012 Adapter Board Connect to Motherboard J14 (PWM Signal) J11 (PWM Signal) System Fan Monitoring Signal Barebone System Fan Connect to Motherboard Fan J14 (Fan 1~9) Chapter 3: Replacing Pre-Installed Components...

  • Page 55: M1012 Adapter Board Connector Pin Definition

    3.7.3 M1012 Adapter Board Connector Pin Definition J1 TYFP Front Panel Connector HDLED+ PW_LED+ HDLED - PW_LED - RESET- PWR_SW+ RESET+ PWR_SW - VOLTAGE5 WLED+ EXT_INT WLED- V5SB KEY PIN ICH_SMBDAT ICH_SMBCLK INTRU# J2 Front Panel Connector HDLED+ HDLED- RESET+ RESET- PW_LED+ PW_LED-...
  • Page 56 J3 LAN/ID LED Connector LAN1_LED+ LAN1_LED- LAN2_LED+ LAN2_LED- LAN3_LED+ LAN3_LED- ID_LED+ ID_LED- ID_SW+ ID_SW- KEY PIN FAN Signal Related Connector Pin Definition NOTE: The FAN signal naming is based on HW circuit design only. It might be different from the system fan naming. J4 Fan TACH &...
  • Page 57 J13 Fan TACH Connector FAN1_TACH FAN2_TACH FAN3_TACH KEY PIN J14 Fan TACH Connector FAN1_TACH FAN2_TACH FAN3_TACH FAN4_TACH FAN5_TACH FAN6_TACH FAN7_TACH FAN8_TACH FAN9_TACH FAN10_TACH KEY PIN J6 Fan Connector FAN1_12VPWM FAN1_TACH FAN2_TACH FAN2_12VPWM Chapter 3: Replacing Pre-Installed Components...
  • Page 58 J10 Fan Connector FAN3_12VPWM FAN3_TACH FAN4_TACH FAN4_12VPWM J11 Fan Connector FAN5_12VPWM FAN5_TACH FAN6_TACH FAN6_12VPWM J9 Fan Connector FAN7_12VPWM FAN7_TACH FAN8_TACH FAN8_12VPWM Chapter 3: Replacing Pre-Installed Components...
  • Page 59 J5 Fan Connector FAN9_12VPWM FAN9_TACH FAN10_TACH FAN10_12VPWM J15 & J16 LCM Connectors LCM_+5V LCM_SIN KEY PIN LCM_+5VSB LCM_SOUT JP1 Fan Input Select Connector Pin1 & Pin2 Close Fan PWM signal from J8 Pin2 & Pin3 Close Fan PWM signal from J4, J7 &...

  • Page 60: Replacing The Sata Backplane

    Replacing the SATA Backplane 1. After removing the M1028-3-SN adapter board, discon- nect those cables connected to the SATA backplane, including SATA and power cables. 2. Grab the two tabs to lift the SATA backplane off. 3. Remove ten screws that secure the bracket to the adapter board.

  • Page 61: Sata Backplane Features

    3.8.1 SATA Backplane Features Chapter 3: Replacing Pre-Installed Components...
  • Page 62 Chapter 3: Replacing Pre-Installed Components...

  • Page 63: Replacing The Power Supply

    Replacing the Power Supply 1. Remove four screws securing the power supply to the chassis. 2. Disconnect power supply cables before lifting the power supply free from the chassis. Chapter 3: Replacing Pre-Installed Components...
  • Page 64 3. First unscrew the bracket to replace the power supply. After replacement, place and secure the unit into the chassis following the reverse procedures from Step 1 to Step 3. Chapter 3: Replacing Pre-Installed Components...

  • Page 65: Appendix I: Bios Differences

    Appendix I: BIOS Differences The following table displays the differences in BIOS between B5375 and S5375. For a complete review of S5375 BIOS, refer to the motherboard manual. S5375 Mainboard B5375 Barebone Advanced Hardware Monitor Auto Fan Control Auto Fan Control Fan Control Default: [Disabled] Default: [Enabled]...

  • Page 66: Appendix Ii: Cable Connection Tables

    Appendix II: Cable Connection Tables SATA Cable Table 1: B5375 Model M1208-3-SN Connect to Motherboard SATA Backplane SATA 1 (J5) SATA 0 SATA 2 (J3) SATA 1 SATA 3 (J2) SATA 2 SATA 4 (J1) SATA 3 FAN Cable Table 2: System Fan to M1012 Adapter Board System Fan Connect to M1012...
  • Page 67 Power Supply Cable Table 4: Power Supply to Motherboard Power Supply Connect to Motherboard P1 24-pin power cable PW1 24-pin connector P2 8-pin power cable PW2 8-pin connector Table 5: Power Supply to M1012 Adapter Board Power Supply Connect to M1012 P4 4-pin power cable PW2 4-pin connector...
  • Page 68 Other Cables Table 7: M1012 Adapter Board to Motherboard M1012 Connect to Motherboard J1 Front Panel connector J16 (TYFP1) J3 (LAN / ID LED) J12 (TYFP2) Table 8: M1003 Front Panel Control Board Related Cable M1003 J1 USB connector Motherboard J15 (USB) M1003 J2 connector M1012 J2 connector Table 9: SATA DVD-ROM Related Cable...

  • Page 69: Appendix Iii: Installing So-Dimm Card

    Appendix III: Installing SO-DIMM Card The following provides you with the information on installing the TYAN SO-DIMM card into your GT20 chassis. 1. Open the spring levers as shown. 2. Insert the SO-DIMM card. The card will fit in the slot only one way.
  • Page 70 3. Push the SO-DIMM card down into place and make sure the spring levers click into place as shown. 4. Follow the reverse procedures from Step 1 to Step 3 to remove the SO-DIMM card.

  • Page 71: Appendix Iv: Fru Parts List

    Appendix IV: FRU Parts List GT20-B5375 FRU Parts Item Model Number Part Number Picture Quantity Description S5375G2NR Dual Intel Motherboard S5375G2NR ® Xeon LGA771 Chassis Unit CCHA-0082 432772300001 GT20 1U Chassis Unit I/O Shielding Assy for Chassis Unit 340763700002 Chassis Rear Top Cover for Cover CCCV-0060 451738500004...
  • Page 72 GT20-B5375 FRU Parts GT20-B5375 FRU Parts Item Model Number Part Number Picture Quantity Description Item Model Number Part Number Picture Quantity Description CRAL-0032 340738500004 Rail Kit Rack Mounting CRAL-0032 340738500004 Rail Kit Parts Rack Mounting CEAR-0050 340740900010 Mounting Ear Kit Parts CEAR-0050 340740900010...

  • Page 73: Technical Support

    (which can have expensive consequences). If these options are not available for you then Tyan Computer Corporation can help.Besides designing innovative and qual- ity products for over a decade, Tyan has continuously offered customers service beyond their expectations.
  • Page 74 RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed pre- paid. TYAN will pay to have the board shipped back to you. Tank GT20 B5375 Service Engineer’s Manual v1.0 Document part No. D1959-100...
