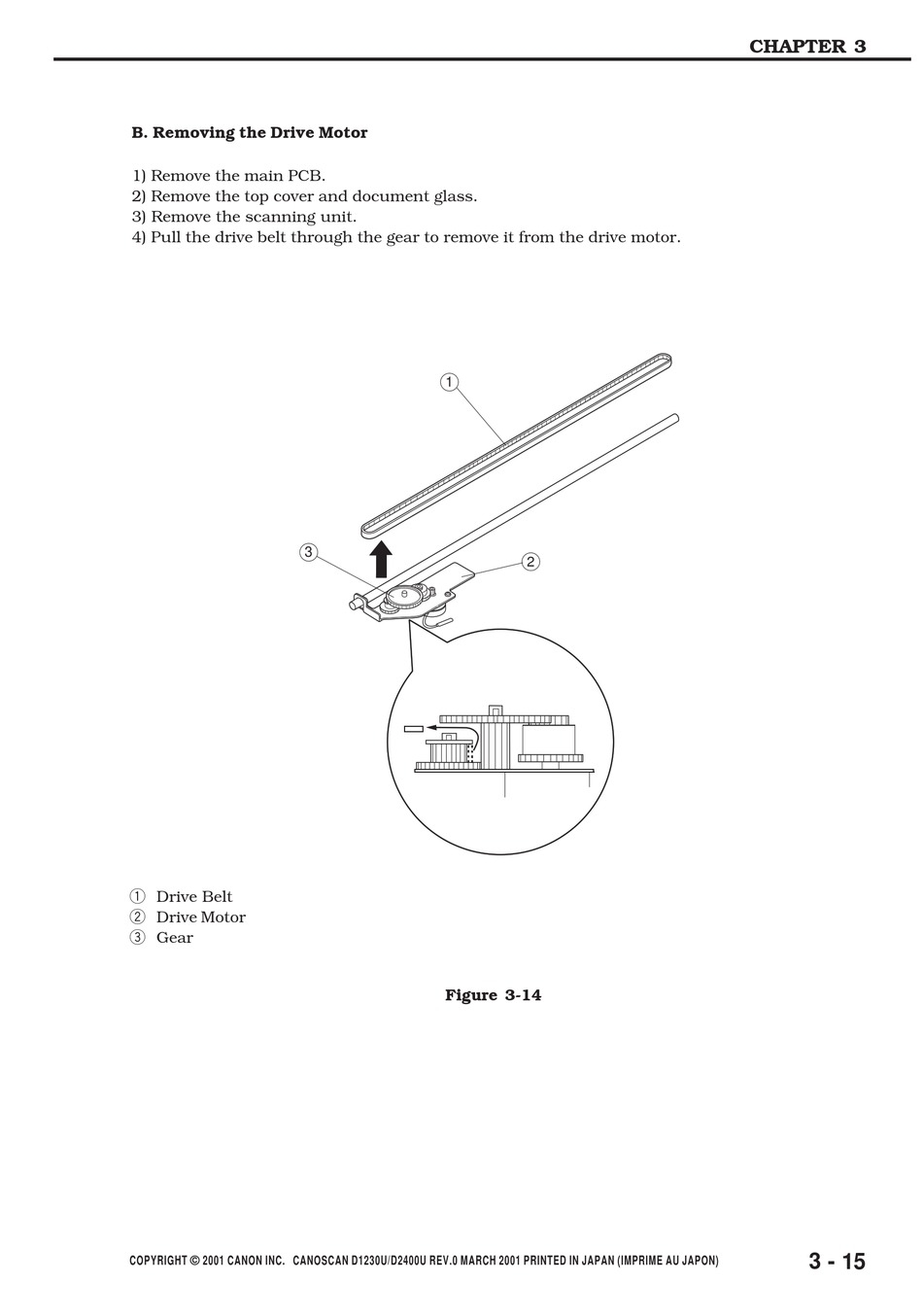

B. Removing the Drive Motor
1) Remove the main PCB.
2) Remove the top cover and document glass.
3) Remove the scanning unit.
4) Pull the drive belt through the gear to remove it from the drive motor.
q Drive Belt
w Drive Motor
e Gear
COPYRIGHT © 2001 CANON INC. CANOSCAN D1230U/D2400U REV.0 MARCH 2001 PRINTED IN JAPAN (IMPRIME AU JAPON)
1
3
Figure 3-14
2
CHAPTER 3
3 - 15
