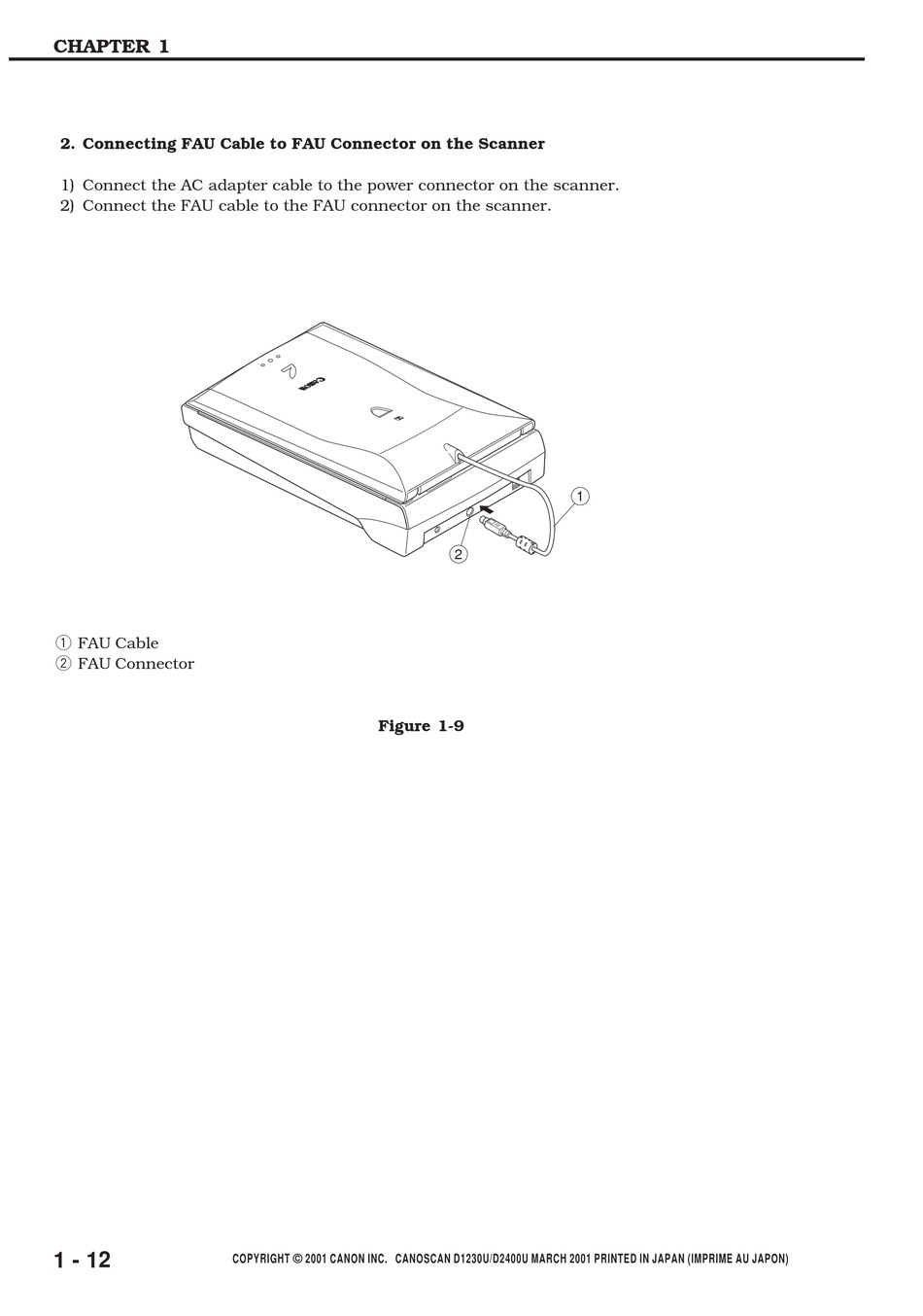

2. Connecting FAU Cable to FAU Connector on the Scanner
1) Connect the AC adapter cable to the power connector on the scanner.
2) Connect the FAU cable to the FAU connector on the scanner.
q FAU Cable
w FAU Connector
1 - 12
Figure 1-9
