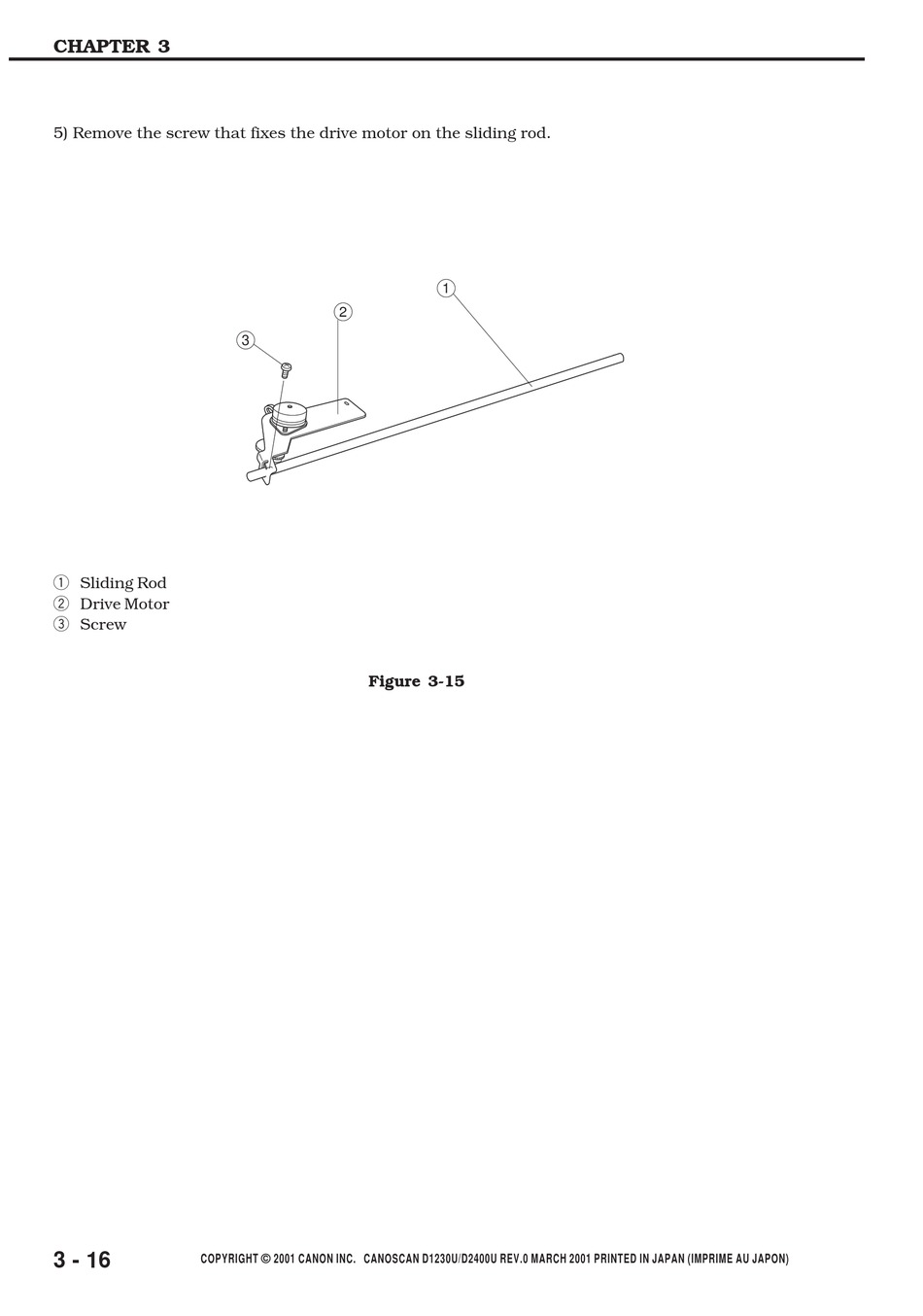

CHAPTER 3
5) Remove the screw that fixes the drive motor on the sliding rod.
1
2
3
q Sliding Rod
w Drive Motor
e Screw
Figure 3-15
3 - 16
