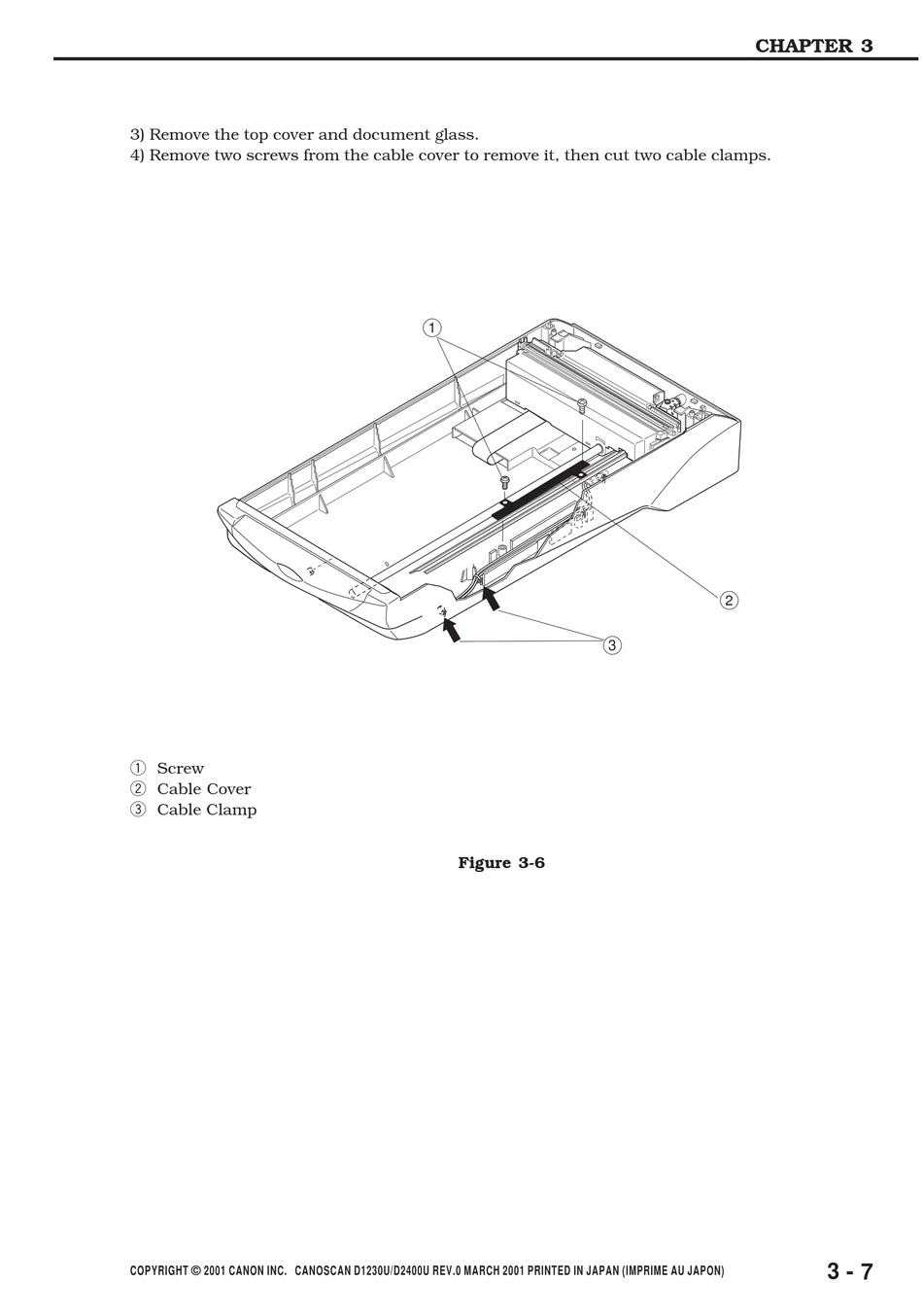

3) Remove the top cover and document glass.
4) Remove two screws from the cable cover to remove it, then cut two cable clamps.
q Screw
w Cable Cover
e Cable Clamp
COPYRIGHT © 2001 CANON INC. CANOSCAN D1230U/D2400U REV.0 MARCH 2001 PRINTED IN JAPAN (IMPRIME AU JAPON)
1
Figure 3-6
