MPS1 Speaker Cable Connections
and Suspension Instructions
In addition to the Main suspension Drop Cable,
a backup Safety Cable is required for proper
installation. Use wire rope or other drop line rated
for at least 100 lbs. to ensure a safety margin.
The attachment point on the structure from which
the speaker is to be anchored also must be able
to handle 100 lbs.
NOTE: If using suspension cables with a cladding,
be sure to strip away coating where any clamping
device is being used so that bare wire cores of the
cable are being clamped.

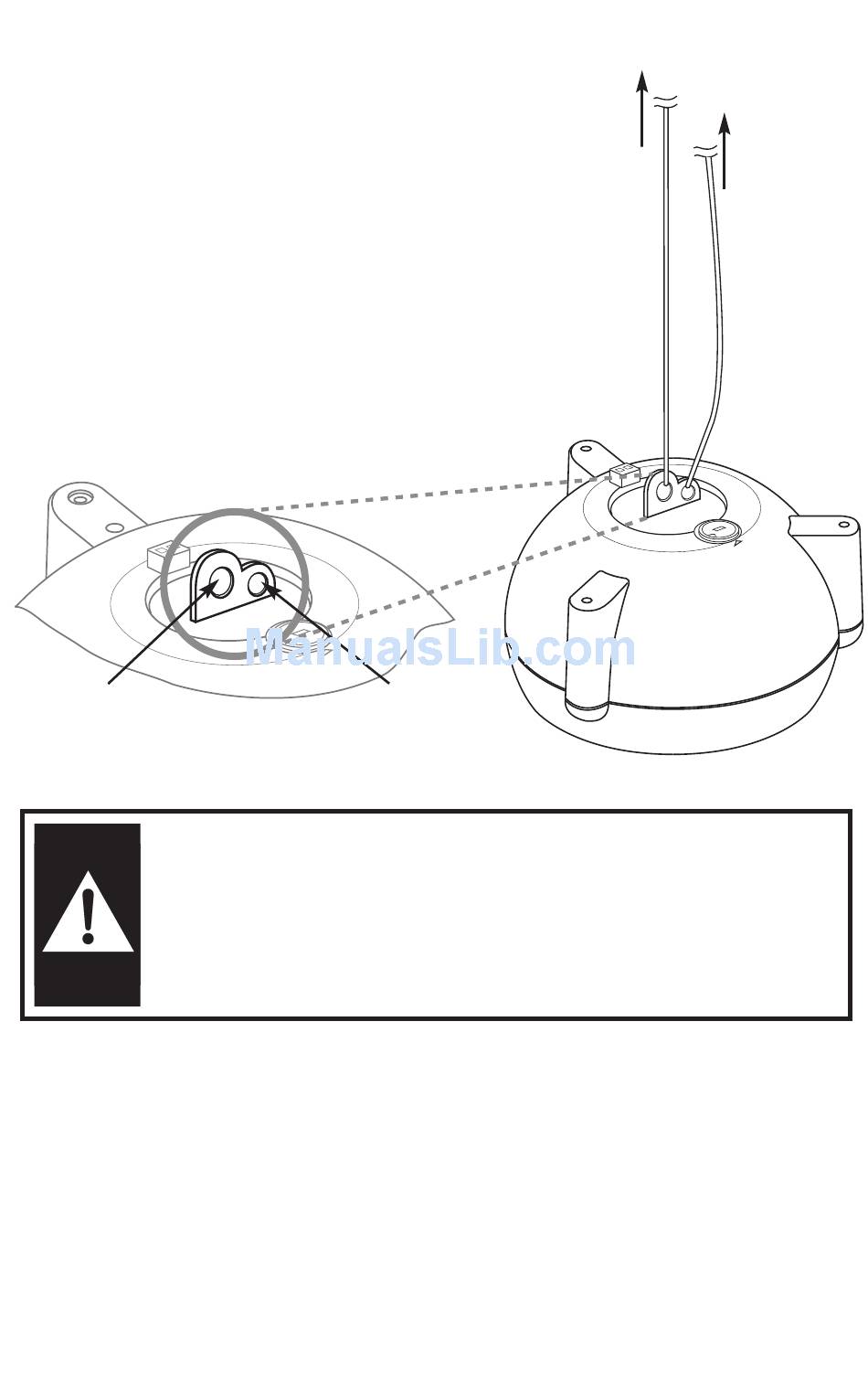

MPS1 SUSPENSION
ATTACHMENT
MAIN DROP
CABLE HOLE
ALONG WITH THE MAIN DROP CABLE, YOU MUST ALSO USE A
SAFETY CABLE WHEN SUSPENDING AN MPS1 PENDANT SPEAKER.
BE SURE TO SECURE ALL RIGGING POINTS AND FOLLOW ALL
THE CABLE MANUFACTURER'S MATERIAL RECOMMENDATIONS
& INSTALLATION INSTRUCTIONS. FAILURE TO DO SO MAY RESULT
IN PROPERTY DAMAGE, INJURY OR DEATH, AND LEGAL LIABILITY
FOR YOU AND/OR YOUR COMPANY.
Attach the main drop cable to the MPS1 Main Drop Cable hole in the Suspension
Attachment located on the top of the speaker. This Main Drop Cable will be the primary
connection that will hold all the suspended speakerʼs weight to the anchor point.
Likewise, attach the Safety Cable to the Safety Cable hole in the Suspension Attachment.
This Safety Cable is meant to be a safeguard only, so when attaching to an anchor point
allow for a small amount of slack in the wire, as the Safety Cable should not bear any of
the speakerʼs direct supension weight to keep the speaker hanging level.
IMPORTANT: The MPS1 Mini Pendant is not an outdoor speaker. DO NOT expose the
speaker to rain or moisture. The MPS1 should be installed by qualified personnel.
SAFETY
CABLE HOLE
TO SPEAKER
ANCHOR
POINT
MAIN
SAFETY
DROP
CABLE
CABLE
MPS1
MINI PENDANT
SPEAKER
