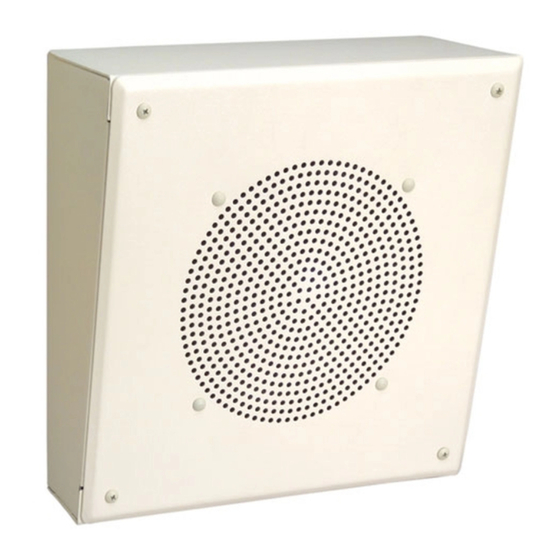

Bogen MB8TSL Installation Instructions

MB8TSL, MB8TSQ, MB8TSLVR, MB8TSQVR
70V/25V Metal Box Speakers
For Surface Mounting to Walls and Ceilings

Installation Instructions

Determine where the speaker(s) will be mounted. Ensure power is not connected to speaker wires prior to installation.
1.
Follow all local safety and building codes and route speaker wires to desired wall or ceiling location. Pull approximately 12" of wire
through opening in mounting surface.
Pull speaker wire through the back of the large opening of the speaker enclosure. Using the supplied mounting hardware, secure
2.
the enclosure to the mounting surface. Note that two toggle bolt/screws (for sheet rock surfaces) and two wood screws (for
securing to solid wood/beams) have been included. Utilize the two washers (supplied) as shown in Figure 1 with either toggle bolts,
wood screws, or other user supplied hardware.
Ceiling
Toggle bolts
(for sheet rock)

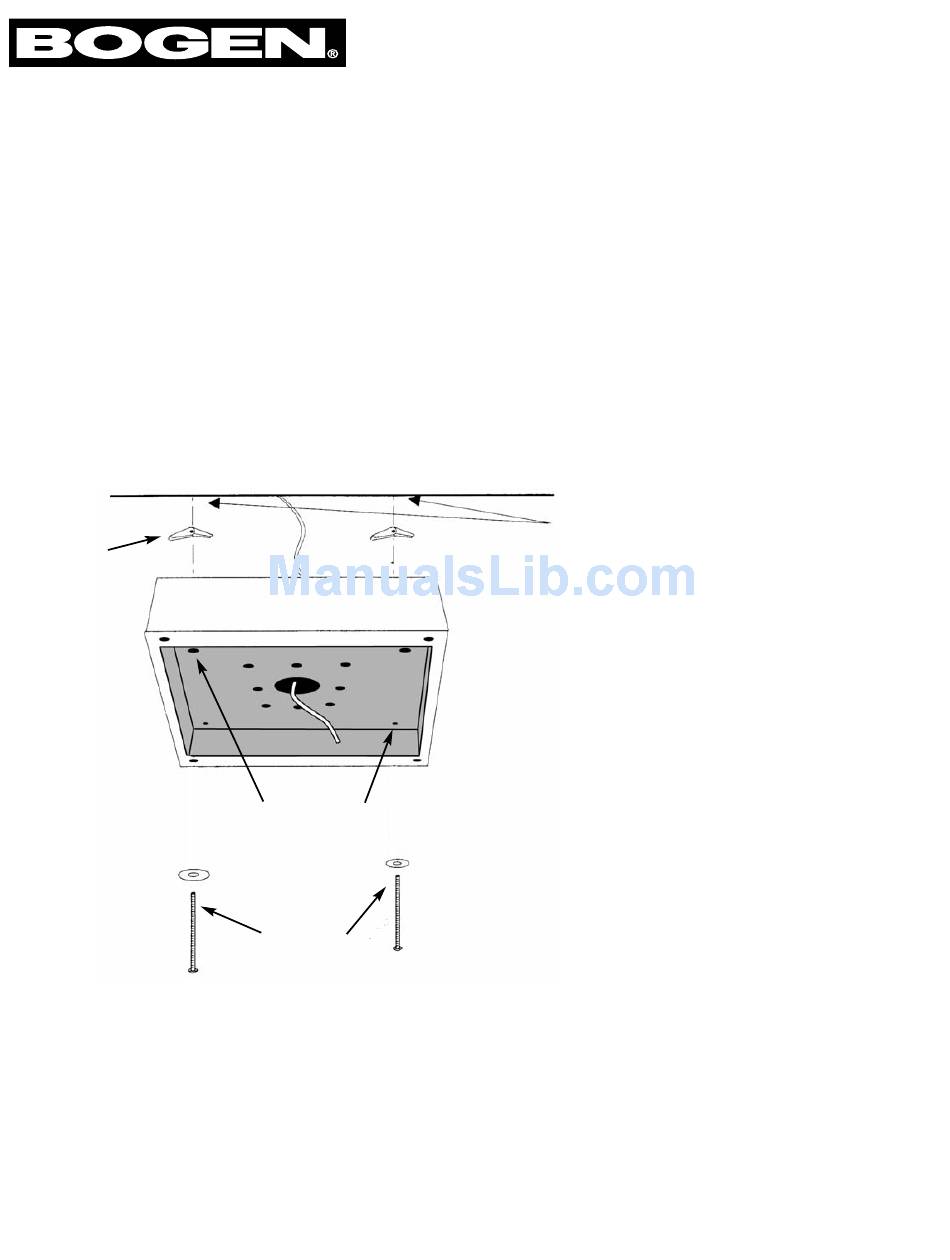

Figure 1 - Sheet rocked ceiling mount example

Package Contents:

• Back box enclosure
• Two crimp-type connectors
• Two wood screws
• Four 1" screws for attaching grille assembly
Enclosure mounting holes
Mounting bolts
and washers
• Grille with speaker assembly
• Two toggle bolt/screws
• Two washers
Use two of the enclosure mounting
holes as a template (diagonally
opposed), and mark screw hole
locations. If toggle bolts will be
used, drill two, 1/2" diameter holes
in the mounting surface, otherwise
drill a hole appropriate for hard-
ware being used.
