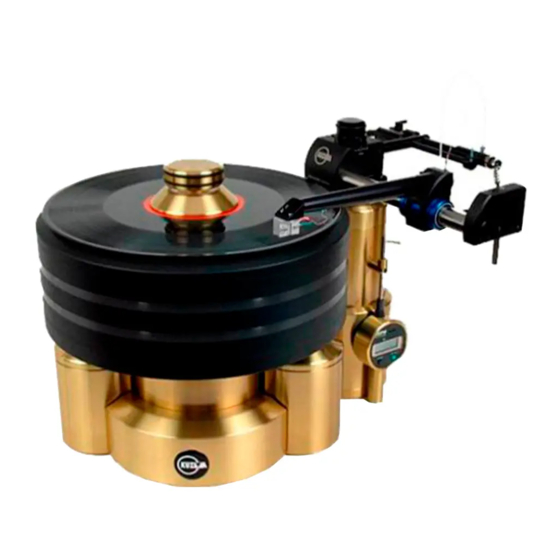

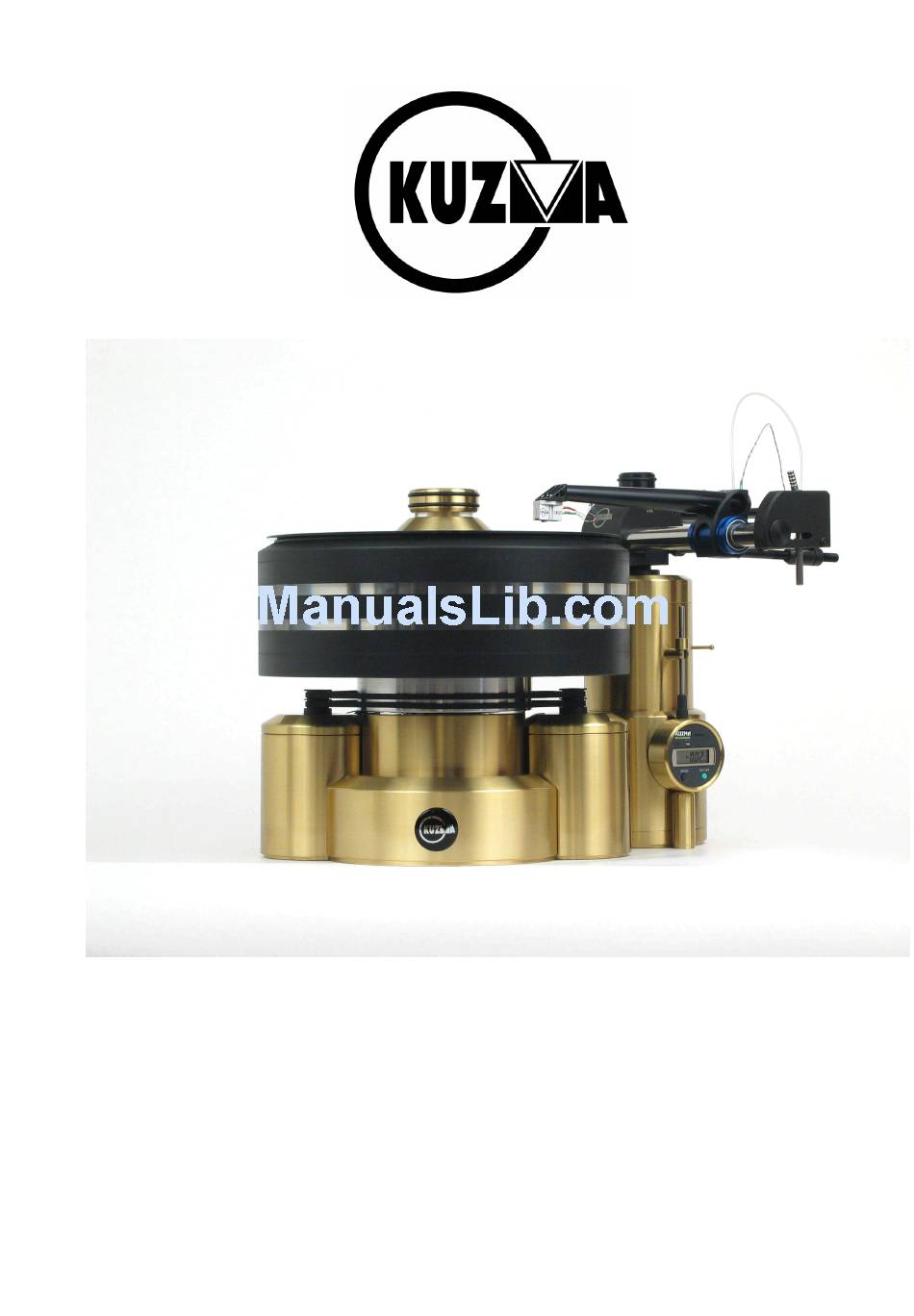

- Page 1 KUZMA STABI XL TURNTABLE (with Air line tonearm) Instruction manual...
-
Page 2: Table Of Contents
KUZMA LTD INSTRUCTION MANUAL FOR STABI XL turntable The Stabi XL turntable is a very precisely engineered piece of equipment. However the construction is robust and requires minimal mainentance for optimal performance. CONTENTS: Page General Unpacking Basic Setup Setting up turntable... -
Page 3: General
General Description: The turntable is packed in three boxes. Some parts are very heavy so handle boxes with care . The base is of solid brass which is clamped together from two pieces and has good damping properties. The main sha ft, which is 28 mm in diameter, is fixed into this base. The platter is a sandwich construction of aluminium and acrylic plates screwed together in a pre-stressed form to damp all unwanted vibration. -
Page 4: Unpacking
Unpacking: Stabi XL comes packed in three boxes. Be aware that the two larger boxes are very heavy. These two boxes have double packaging. Inside are cutouts in the packaging blocks of firm foam for various parts of the turntable. Some parts are very heavy, so handle with care while lifting from the boxes and placing them on the assembly surface. -
Page 5: Basic Setup
Locate the main brass base with the shaft. This is very heavy. Lift, being careful not to scratch against metal parts of clothing, and position in the middle of the supporting board. The Kuzma logo should face forward. Use a ruler to position the centre of the base. Motor towers: Remove the two brass motor towers with black pulleys being careful not to touch the pulleys with any force. - Page 6 VTA toothed knob is facing away from the platter and that the parts holding the measuring guage are facing towards the front. For Kuzma tonearms the gap between platter and tower is 5 mm. See Fig. on page 2.
-
Page 7: Setting Up Turntable
Setting up the turntable: Tonearm: Ensure that the supporting stand is completely horizontal. When the Air Line tangential tonearm is used additional fine adjustment of turntable horizontality is mandatory. Mount the chosen tonearm according to instructions. Firmly secure the armbase onto the tonearm top brass plate and secure it with two screws, using Allen key 3 mm, at the side of the tower. - Page 8 Setting the VTA Guage: With Allen key 1.5 mm release the small brass weight which holds the display in the upper position. The display will show minimum. Reset and the measurement will show zero. Lift the vertical rod for about 6-7 mm (middle) and with Allen key, secure this position with the screw on the brass weight.
-
Page 9: Use And Adjustment
Use and adjustments: Platter rotation: Ensure that the red LED lights up when switched on. Rotate the brass knob so that the red dot matches the chosen speed. Speed selection: Select speed by rotation of the brass knob on the PS front panel. For 'on' the red LED shows, for 33 rpm the green LED and for 45 rpm the orange LED. -
Page 10: Mainentance
Mainentance: Mat: The top surface of the mat can be cleaned using a roller textile cleaner. Bearing: Oil in the bearing will last for 3-4 years or more. Running the bearing without oil will do no harm due to the choice of materials and type of construction. Oil should be added if the top reservoir (with ruby ball ) is totally dry. -
Page 11: Problems
All parts are heavy, however, and can be easily damaged by sliding around a transport vehicle. Repacking in original cutouts and boxes is , therefore, recommended. Kuzma Ltd Hotemaze 17A SI-4205 PREDDVOR SLOVENIJA...
